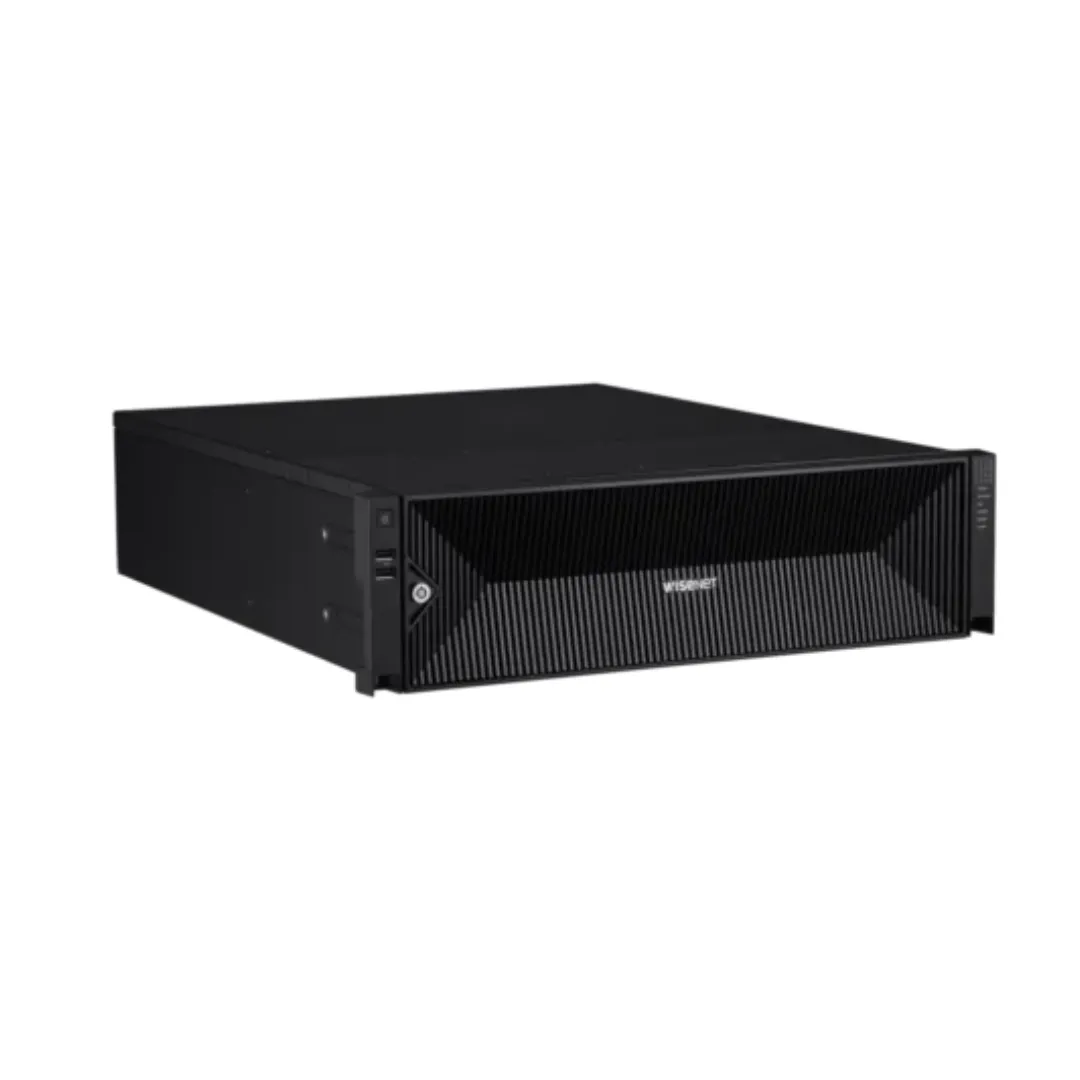

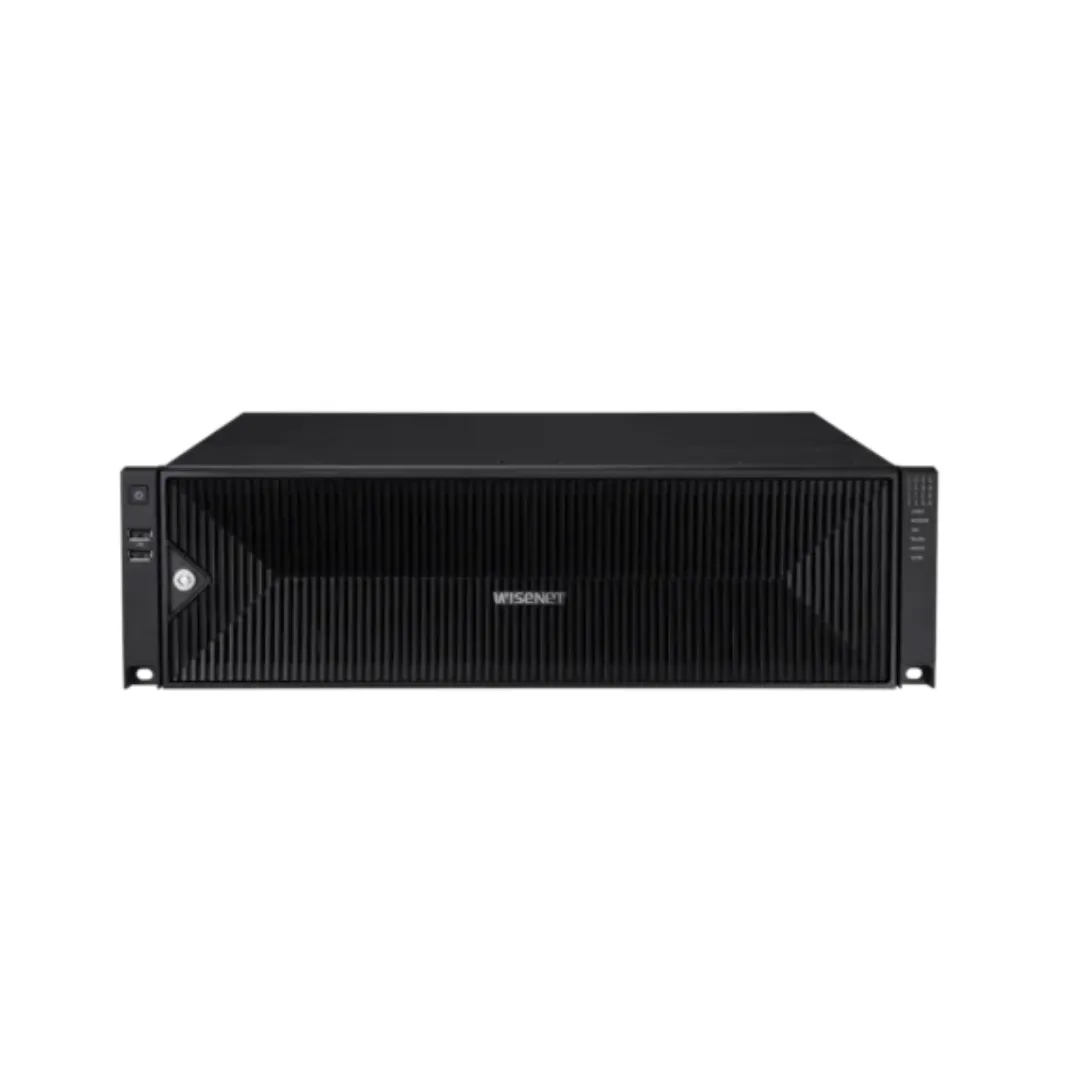

XRN-6410DB4 64CH AI NVR – 400Mbps High-Capacity Surveillance System

Description

XRN-6410DB4 64CH AI NVR – 400Mbps High-Capacity Surveillance System

The XRN-6410DB4 is a powerful 64-channel AI Network Video Recorder designed for high-capacity surveillance environments. Supporting up to 400Mbps recording bandwidth, it ensures smooth and reliable video capture from multiple IP cameras. With AI-based analytics, it enables smarter event detection and efficient video management. The NVR supports up to 8 internal HDDs, allowing massive storage for long-term retention. Ideal for large-scale installations like commercial complexes, campuses, and smart cities.

XRN-6410DB4 64CH AI NVR – Full Specifications

General

• Model: XRN-6410DB4

• Type: AI Network Video Recorder (NVR)

• Channels Supported: 64 IP Channels

Performance

• Maximum Recording Bandwidth: 400Mbps

• Decoding Capacity:

  • Up to 12MP camera resolution support

  • Up to 4CH @ 4K (30fps) or 16CH @ 1080p real-time live view

AI Features

• AI Search & Playback:

  • Object classification (Human, Vehicle, Face, License Plate)

  • Attribute-based search (clothing color, vehicle type, etc.)

• Supports Hanwha AI Cameras: Seamless integration for AI analytics and metadata display

Video & Audio

• Video Compression: H.265, H.264, MJPEG

• Video Output:

  • HDMI (Main): 1x 4K UHD (3840×2160)

  • HDMI/VGA (Spot): 1x Full HD

• Audio Input/Output: 1 RCA In / 1 RCA Out

• Two-Way Audio Support: Yes

Storage

• HDD Bays: 8 x SATA (Supports up to 10TB per drive)

• RAID Support: RAID 5/6

• eSATA: 1 Port

• Hot-Swap HDD: Yes

Network

• Ethernet Interface:

  • 2 x Gigabit RJ-45 Ports (LAN/WAN)

  • 1 x Gigabit RJ-45 Dedicated IP Camera Port

• Protocols Supported: IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, RTSP, RTP, FTP, SMTP, NTP, DHCP, ARP, DDNS, SNMP, WS-Discovery, ONVIF (Profile S, G, T)

• Remote Access: Web Viewer (IE, Chrome), Wisenet Viewer, Mobile App (iOS/Android)

USB Interface

• USB Ports: 2 x USB 2.0 (Front), 1 x USB 3.0 (Rear)

Alarm I/O

• Alarm Inputs: 16

• Alarm Outputs: 4

• Event Actions: Email, FTP upload, Buzzer, Alarm Out, Recording, PTZ control, AI trigger

User Interface & Features

• Operating System: Embedded Linux

• User Interface: Graphical UI via local monitor or web viewer

• Multi-User Support: Yes (Max. 5 users simultaneously)

• Backup: USB, Network, eSATA

Security

• User Access Control: Multi-level with authority-based restrictions

• Data Protection: Digital watermarking, encrypted video/audio

Electrical & Environmental

• Power Supply: 100 ~ 240V AC, 50/60Hz

• Power Consumption: Max. 120W (without HDD)

• Operating Temperature: +0°C ~ +40°C

• Operating Humidity: 20% ~ 85% RH (non-condensing)

• Cooling: Dual cooling fans

Physical

• Dimensions: 440.0(W) x 132.5(H) x 438.0(D) mm

• Weight: Approx. 10.5 kg (without HDDs)

• Rack Mount: 2U Rack-mountable

Certifications

• Certifications: CE, FCC, UL, KC
