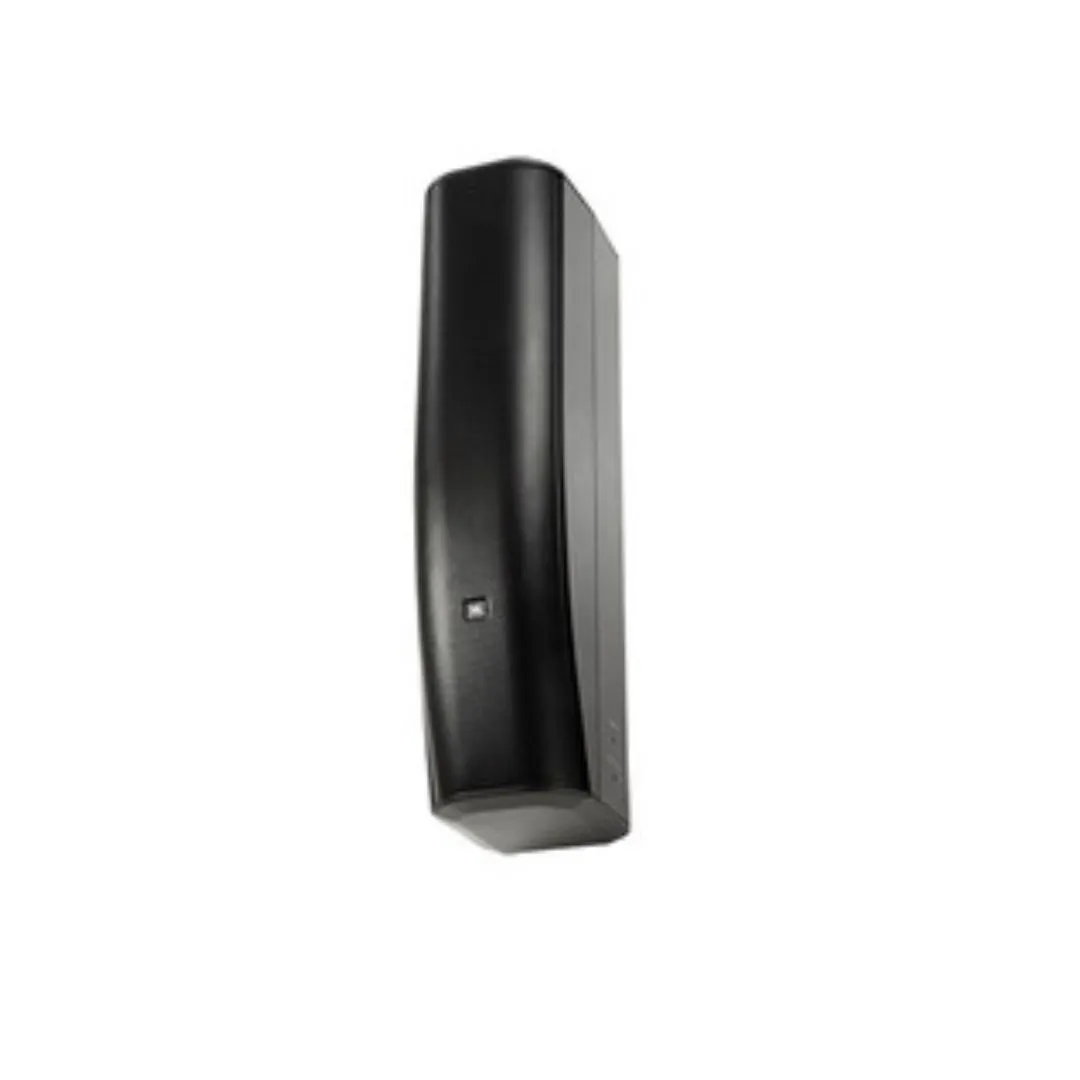

JBL CBT 70J-1 and 70J-1-WH Column Speakers

Description

JBL CBT 70J-1 and 70J-1-WH Column Speakers

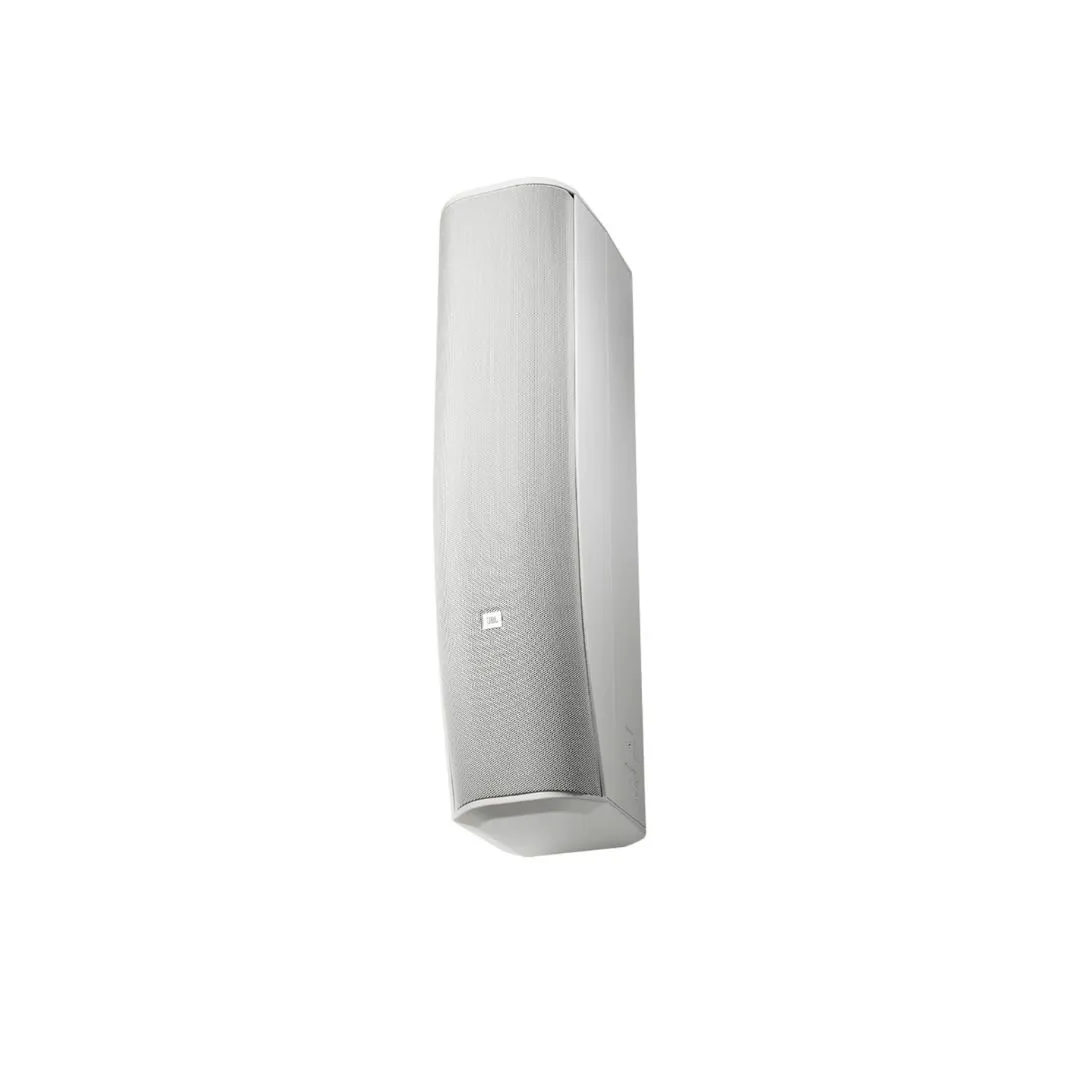

The JBL CBT 70J-1 and 70J-1-WH are high-performance column speakers engineered with Constant Beamwidth Technology™ for consistent sound coverage. Perfect for large venues, houses of worship, and public spaces, these speakers deliver powerful, clear audio with minimal distortion. With 16 drivers and a built-in 70V/100V transformer, they support both low-impedance and distributed sound systems. The white (WH) version offers a sleek look for bright interior designs. Durable and weather-resistant, they are suitable for both indoor and outdoor installations.

Full Specifications :

• Model: CBT 70J-1 / CBT 70J-1-WH (White version)

• Speaker Type: Passive line array column speaker

• Power Handling: 500W continuous program, 250W continuous pink noise

• Frequency Response: 60 Hz – 20 kHz

• Impedance: 8 ohms

• Sensitivity: 95 dB SPL (1W @ 1m)

• Max SPL: 116 dB (122 dB peak)

• Coverage Pattern: 45° vertical x 150° horizontal

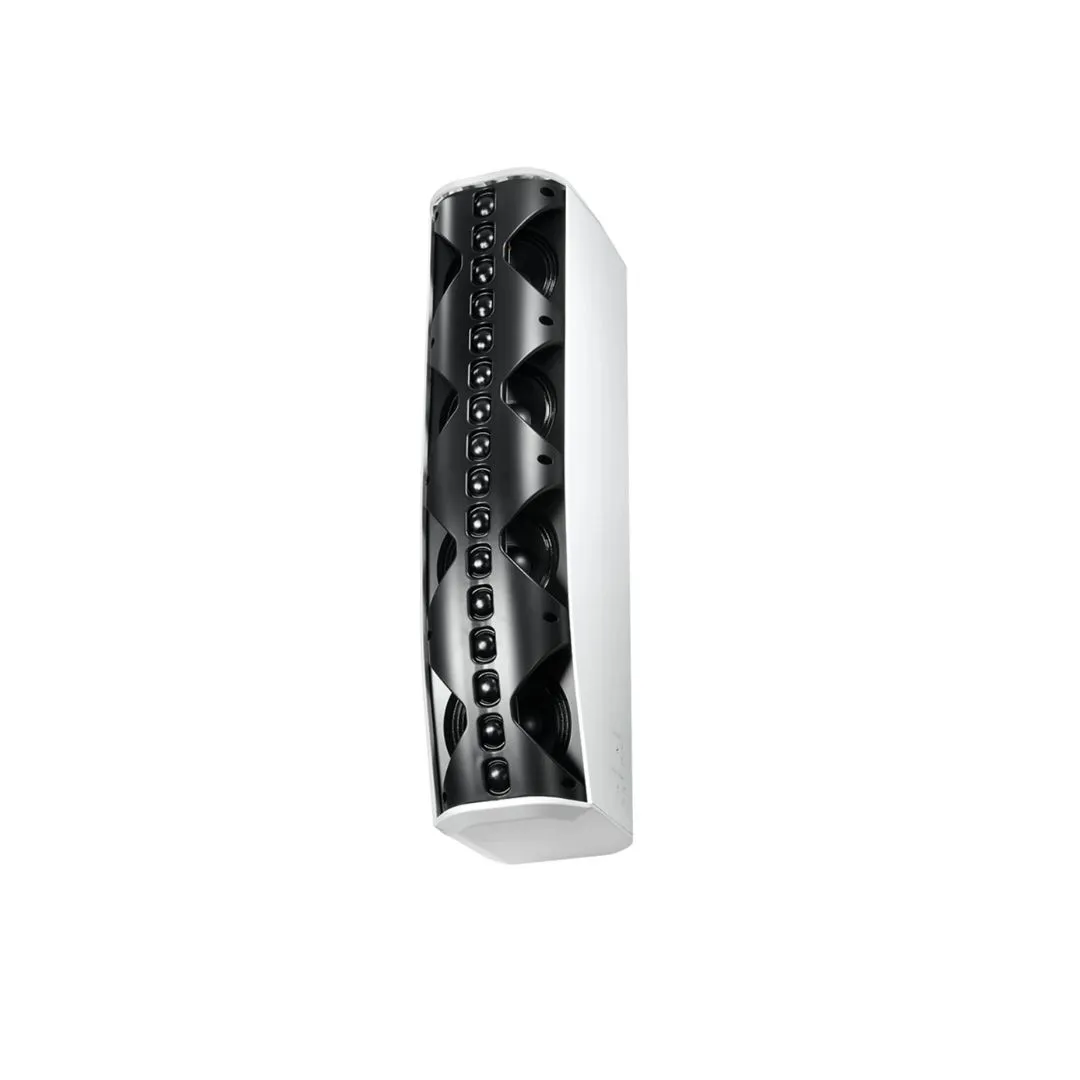

• Drivers: 16 total – 4 x 5″ woofers + 12 x 1″ tweeters

• Input Type: Screw terminal with cover

• Transformer Taps: 70V/100V transformer with multiple tap settings

• Enclosure Material: Weather-resistant ABS

• Grille: Powder-coated steel, rust-resistant

• Mounting: Wall-mount hardware included

• Weather Rating: Outdoor-capable, IP-rated

• Dimensions (H x W x D): 1000 mm x 141 mm x 153 mm (39.4 in x 5.6 in x 6.0 in)

• Weight: 14.5 kg (32 lbs)
