JBL CBT 70JE-1 and 70JE-1-WH Column Speakers

Description

JBL CBT 70JE-1 and 70JE-1-WH Column Speakers

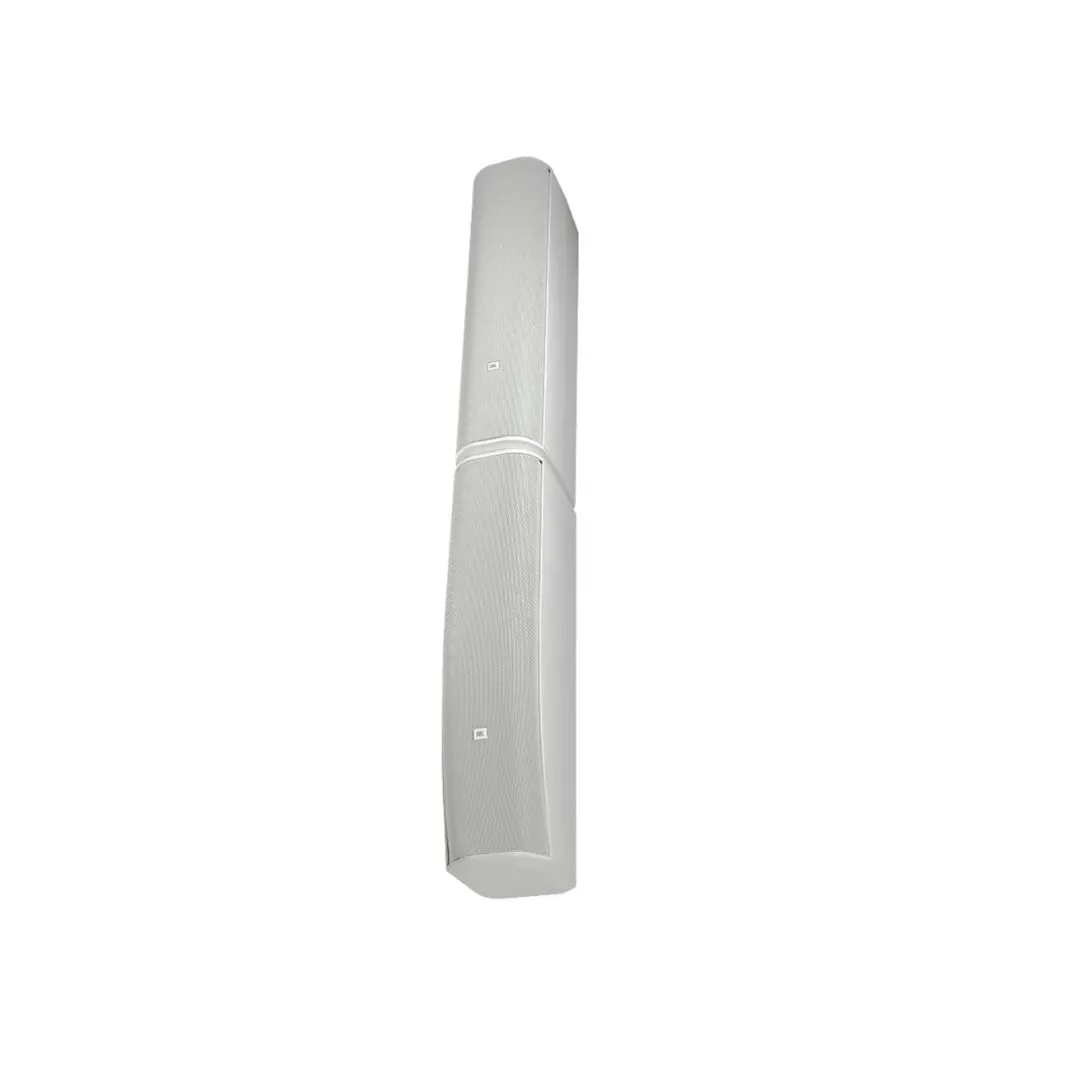

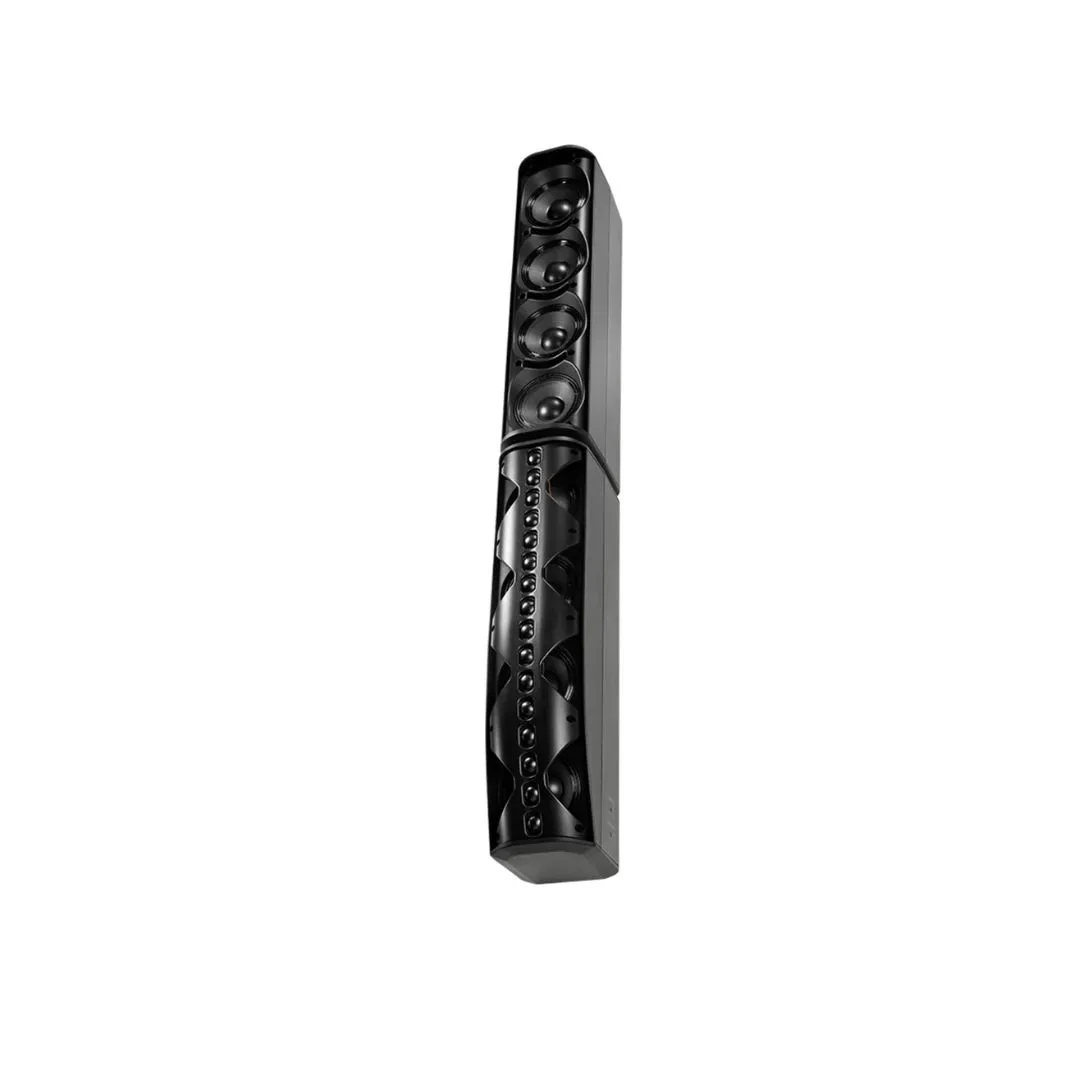

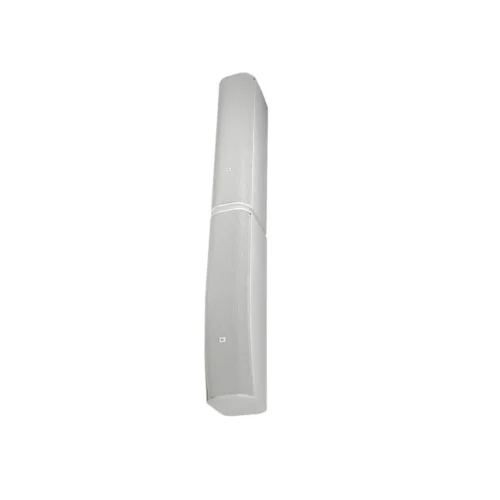

The JBL CBT 70JE-1 and 70JE-1-WH are advanced column speakers designed to deliver superior sound coverage in both large venues and outdoor settings. Built with JBL’s Constant Beamwidth Technology™ (CBT), these speakers provide clear, consistent sound across a wide area. The speakers feature 16 drivers and come equipped with a 70V/100V transformer for versatile applications, making them suitable for both low-impedance and distributed systems. The white version (WH) offers a clean, modern look, perfect for brighter indoor spaces. These speakers are designed for durability, featuring weather-resistant construction for outdoor installations.

Full Specifications :

• Model: CBT 70JE-1 / CBT 70JE-1-WH (White version)

• Speaker Type: Passive line array column speaker

• Power Handling: 500W continuous program, 250W continuous pink noise

• Frequency Response: 60 Hz – 20 kHz

• Impedance: 8 ohms

• Sensitivity: 95 dB SPL (1W @ 1m)

• Max SPL: 116 dB (122 dB peak)

• Coverage Pattern: 45° vertical x 150° horizontal

• Drivers: 16 total – 4 x 5″ woofers + 12 x 1″ tweeters

• Input Type: Screw terminal with cover

• Transformer Taps: 70V/100V transformer with multiple tap settings

• Enclosure Material: Weather-resistant ABS

• Grille: Powder-coated steel, rust-resistant

• Mounting: Wall-mount hardware included

• Weather Rating: Outdoor-capable, IP-rated

• Dimensions (H x W x D): 1000 mm x 141 mm x 153 mm (39.4 in x 5.6 in x 6.0 in)

• Weight: 14.5 kg (32 lbs)
