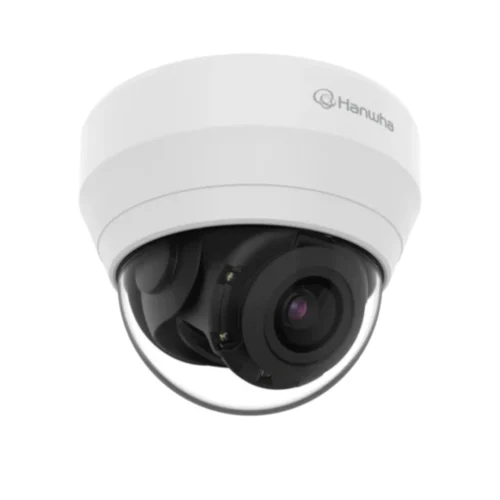

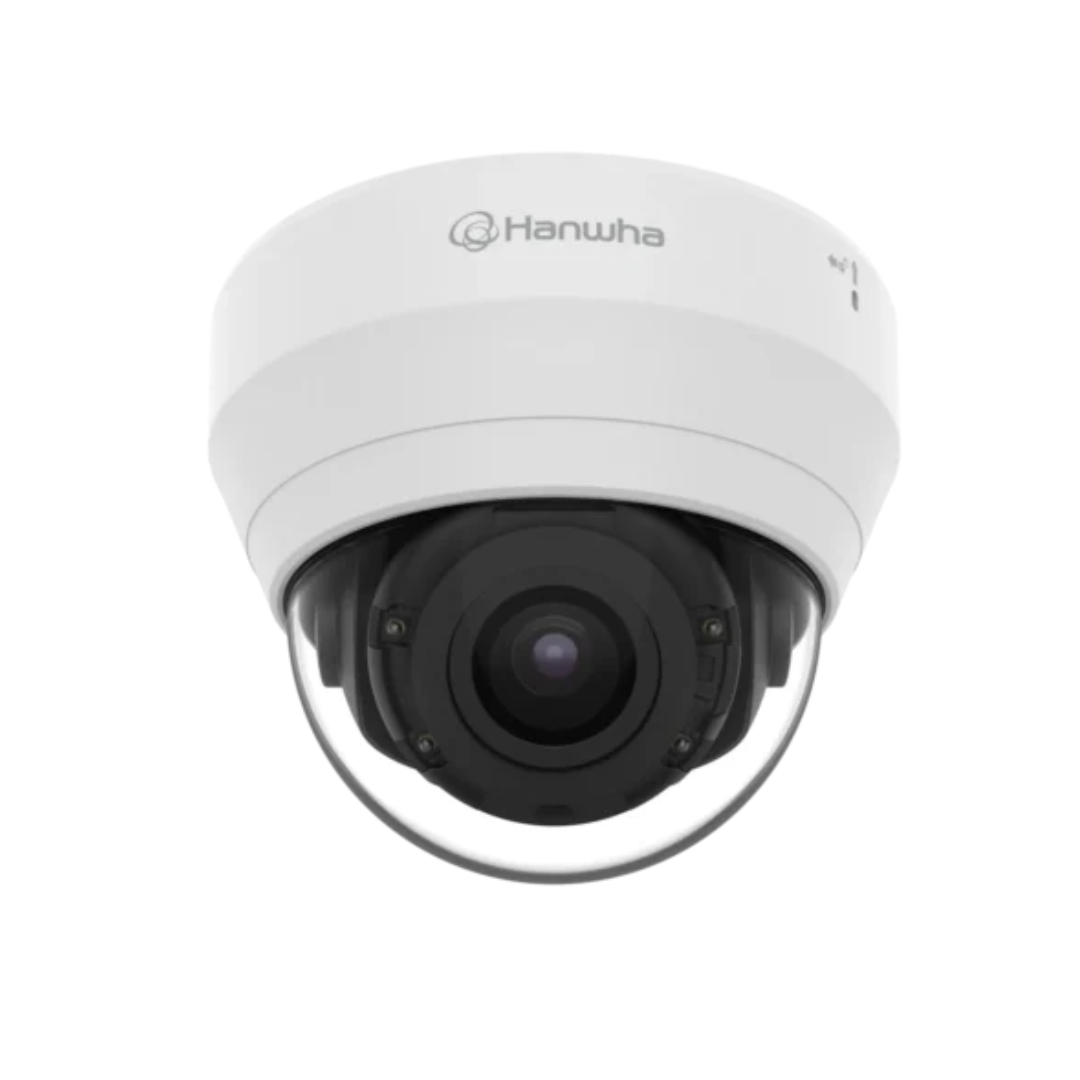

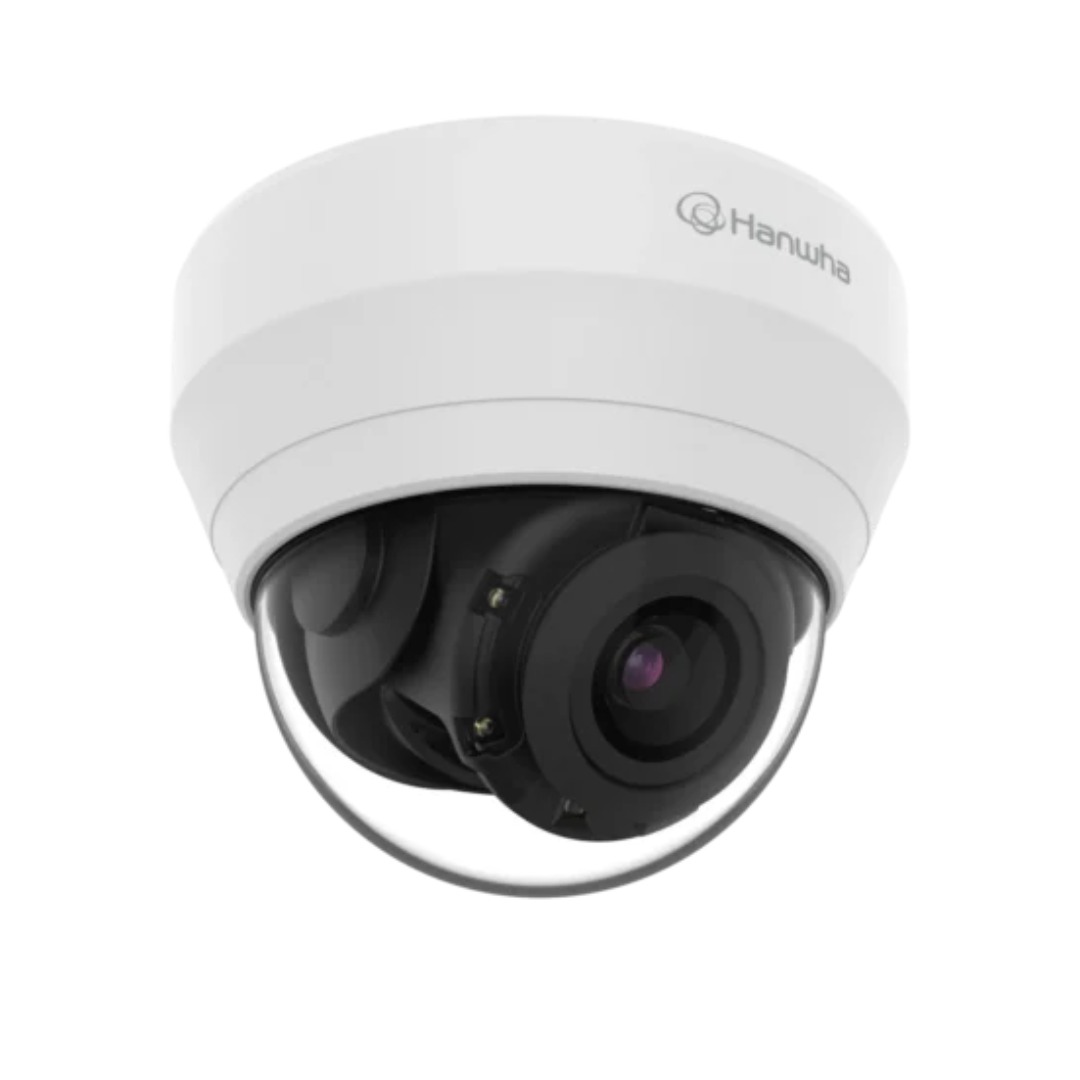

QND-6072R 2MP IR Dome Camera – Indoor Full HD Surveillance Solution

QND-6072R 2MP IR Dome Camera – Full Specifications

• Camera Type: Indoor Dome Network Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS

• Maximum Resolution: 2 Megapixels (1920 x 1080)

• Lens Type: Manual Varifocal Lens

• Focal Length: 2.7 – 12 mm

• Angle of View:

  • Horizontal: 102.2° (Wide) ~ 32.4° (Tele)

  • Vertical: 53.7° (Wide) ~ 18.3° (Tele)

• Day & Night: True Day/Night with IR Cut Filter (ICR)

• Infrared (IR) Range: Up to 20 meters

• Minimum Illumination:

  • Color: 0.06 Lux (F1.6, 30IRE)

  • B/W: 0 Lux with IR on

• Wide Dynamic Range (WDR): 120dB

• Digital Noise Reduction: Yes (SSNR – Samsung Super Noise Reduction)

• Video Compression: H.265, H.264, MJPEG

• Streaming: Multiple Streaming Supported

• Smart Features:

  • Motion Detection

  • Tampering Detection

  • Lens Distortion Correction

• Storage: microSD/SDHC/SDXC slot (up to 128GB)

• Audio Support: No

• Network:

  • Ethernet: RJ-45 (10/100BASE-T)

  • Protocols: IPv4/IPv6, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, etc.

• Power Supply: 12V DC or PoE (IEEE 802.3af)

• Power Consumption: Max. 6.3W

• Operating Temperature: Up to 60°C

• Operating Humidity: Up to 95% RH

• Dimensions: Ø 100 x 85.6 mm

• Weight: Approx. 350g

• Certifications: CE, FCC, UL
