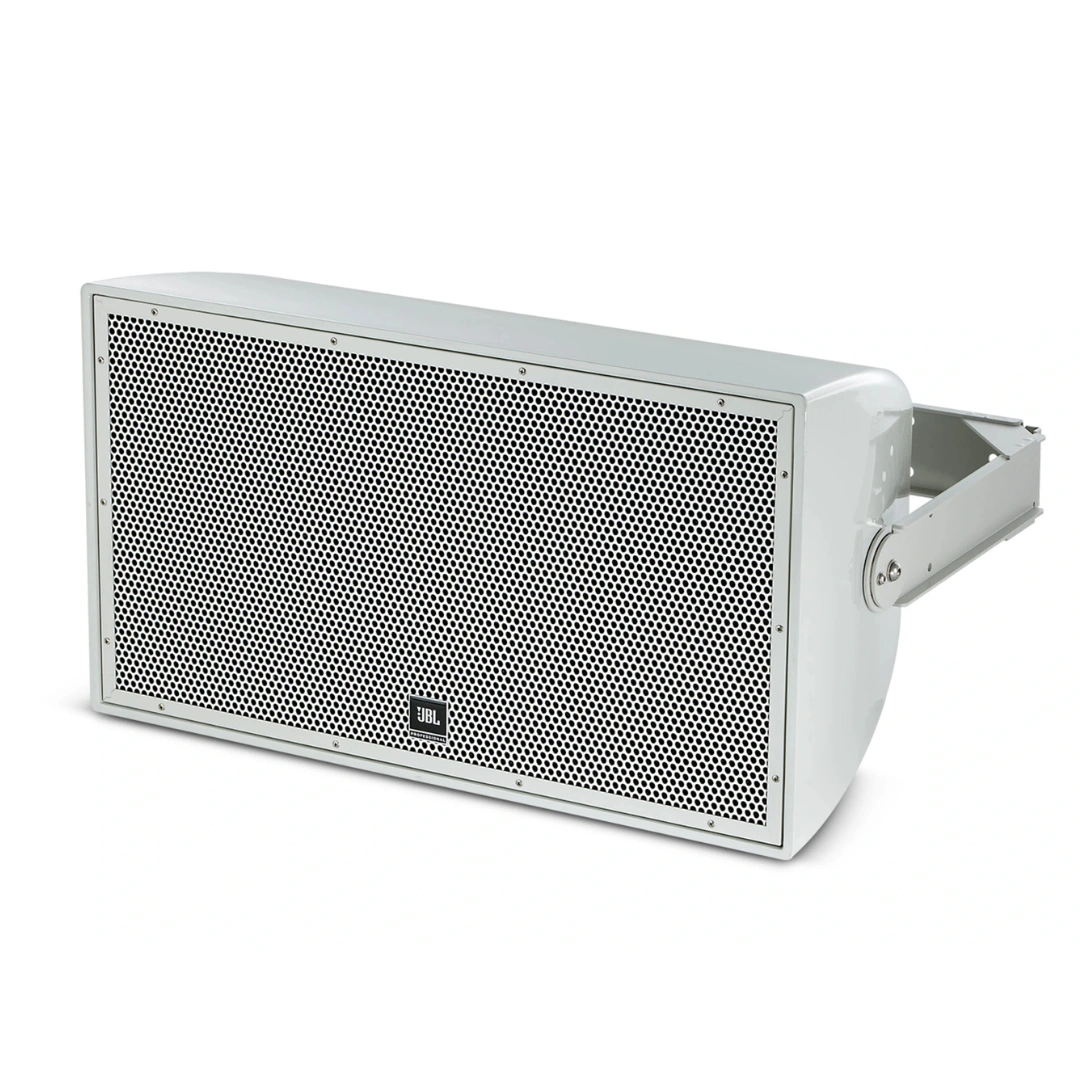

JBL Speaker AW566-LS and AW566-LS-BK All-Weather Speakers

The JBL Speaker AW566-LS and AW566-LS-BK are premium all-weather loudspeakers designed for exceptional audio performance in outdoor and demanding environments. With rugged enclosures and weather-resistant features, they deliver powerful, clear sound in any condition. Ideal for stadiums, arenas, and public spaces, these speakers combine durability with JBL’s legendary acoustic quality. The AW566-LS series ensures consistent coverage and high output with minimal distortion. Whether for background music or public announcements, they offer reliable performance year-round.

Full Specifications

Technical Specifications

Speaker Type: High-power 2-way full-range loudspeaker
Configuration: Passive
Low-Frequency Driver: 1 × JBL 2265H 15″ (380 mm) Differential Drive® with 3″ (75 mm) dual voice coil
High-Frequency Driver: JBL 2432H 1.5″ (38 mm) exit compression driver with 3″ (75 mm) voice coil
Waveguide: PT-H66HF-1 Progressive Transition™ waveguide
Coverage Pattern: 60° × 60°, rotatable horn
Crossover Frequency: 1.1 kHz

Performance

Frequency Range (-10 dB): 42 Hz – 20 kHz
Frequency Response (±3 dB): 89 Hz – 18 kHz
System Sensitivity (1W @ 1m): 100 dB SPL
Maximum SPL (1m): 127 dB continuous average, 133 dB peak
Directivity Factor (Q): 15.8
Directivity Index (DI): 12 dB

Power & Impedance

System Power Rating: 400 W continuous (1600 W peak), 100-hour IEC
Nominal Impedance: 8 ohms
Transformer Taps:

• 70V: 400 W, 200 W, 100 W

• 100V: 400 W, 200 W

Construction & Mounting

Enclosure: Hand-laminated fiberglass with gray gelcoat finish (black available as -BK model)
Grille: Three-layer assembly of 16-gauge powder-coated stainless steel, open-cell foam, and stainless steel mesh
Mounting Options:

• 2 × M10 for included U-bracket

• 2 × M6 for aiming stabilization

• 1 × M10 on rear for safety
  Input Connector: CE-compliant covered barrier strip terminals (accepts up to 10 AWG wire or 9 mm spade lugs)
  Environmental Rating: IP55C per IEC 529

Dimensions & Weight

Dimensions (H × W × D): 19.1″ × 31.9″ × 18.8″ (485 mm × 810 mm × 478 mm)
Net Weight: 62.5 lbs (28.3 kg)

Certifications & Compliance

EN 54-24 Compliant: Yes (suitable for life safety applications)
Ingress Protection: IP55C
