JBL Speaker AM7315/64 and AM7315/64-WH Professional Loudspeakers (Black & White)

JBL Speaker AM7315/64 and AM7315/64-WH Professional Loudspeakers (Black & White)

The JBL Speaker AM7315/64 and AM7315/64-WH are premium professional loudspeakers designed for high-output sound reinforcement. Featuring a powerful 15-inch woofer and a 1.5-inch high-frequency driver, they deliver clear, dynamic audio across a wide frequency range. The 60° x 40° coverage pattern ensures focused sound projection, ideal for medium to large venues. With a durable enclosure and available in both black and white finishes, they suit various installation needs. These speakers are perfect for auditoriums, performance halls, and houses of worship.

Full Specifications

Type:
15-inch, 3-way high-power full-range loudspeaker

Frequency Range (-10 dB):
38 Hz – 20 kHz

Frequency Response (±3 dB):
45 Hz – 18 kHz

Coverage Pattern:
60° x 40° (rotatable waveguide)

Crossover Modes:
Switchable between Tri-amp and Bi-amp

Crossover Frequencies:
300 Hz and 2.3 kHz

Woofer (LF):
1000W AES (4000W peak) – 2 hrs
750W AES (3000W peak) – 100 hrs

Midrange (MF):
350W AES (1400W peak) – 2 hrs

Tweeter (HF):
100W AES (400W peak) – 2 hrs

System (Bi-amp Mode):
LF: 600W
MF/HF: 200W (Long-term IEC ratings)

Max SPL (1m):
LF: 127 dB continuous, 133 dB peak
MF: 133 dB continuous, 139 dB peak
HF: 135 dB continuous, 141 dB peak
MF/HF (bi-amp): 133 dB continuous, 139 dB peak

Sensitivity (1W/1m):
LF: 97 dB
MF: 108 dB
HF: 115 dB
MF/HF: 108 dB (bi-amp mode)

Nominal Impedance:
8 ohms

Low Frequency Driver:
15-inch JBL 2265H with 3-inch voice coil

Mid Frequency Driver:
8-inch CMCD-82H with dual voice coil

High Frequency Driver:
1.5-inch exit JBL 2432H with 3-inch voice coil

Waveguide:
PT (Progressive Transition) Waveguide

Material:
16 mm (5/8 inch) birch plywood, trapezoidal shape

Finish Options:

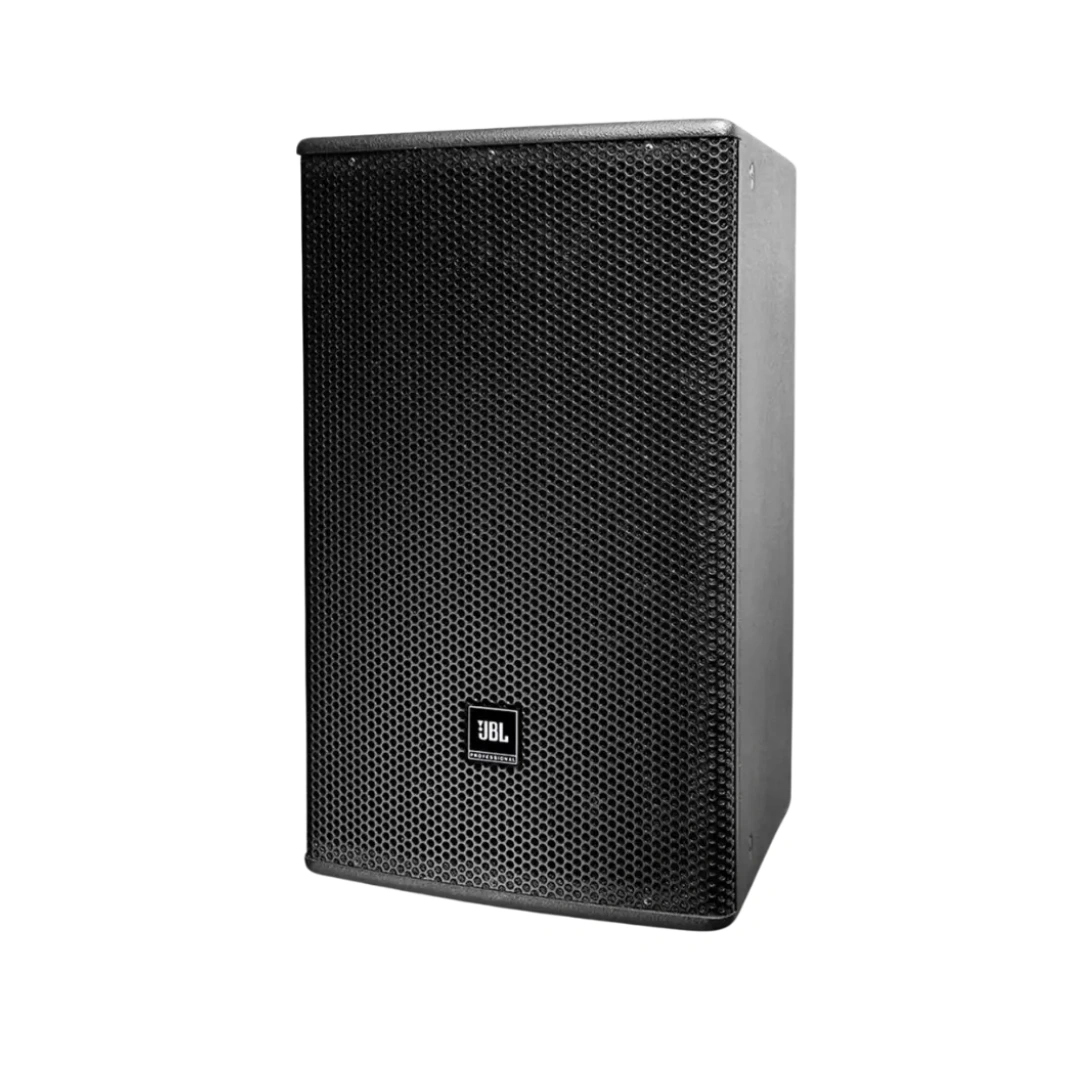

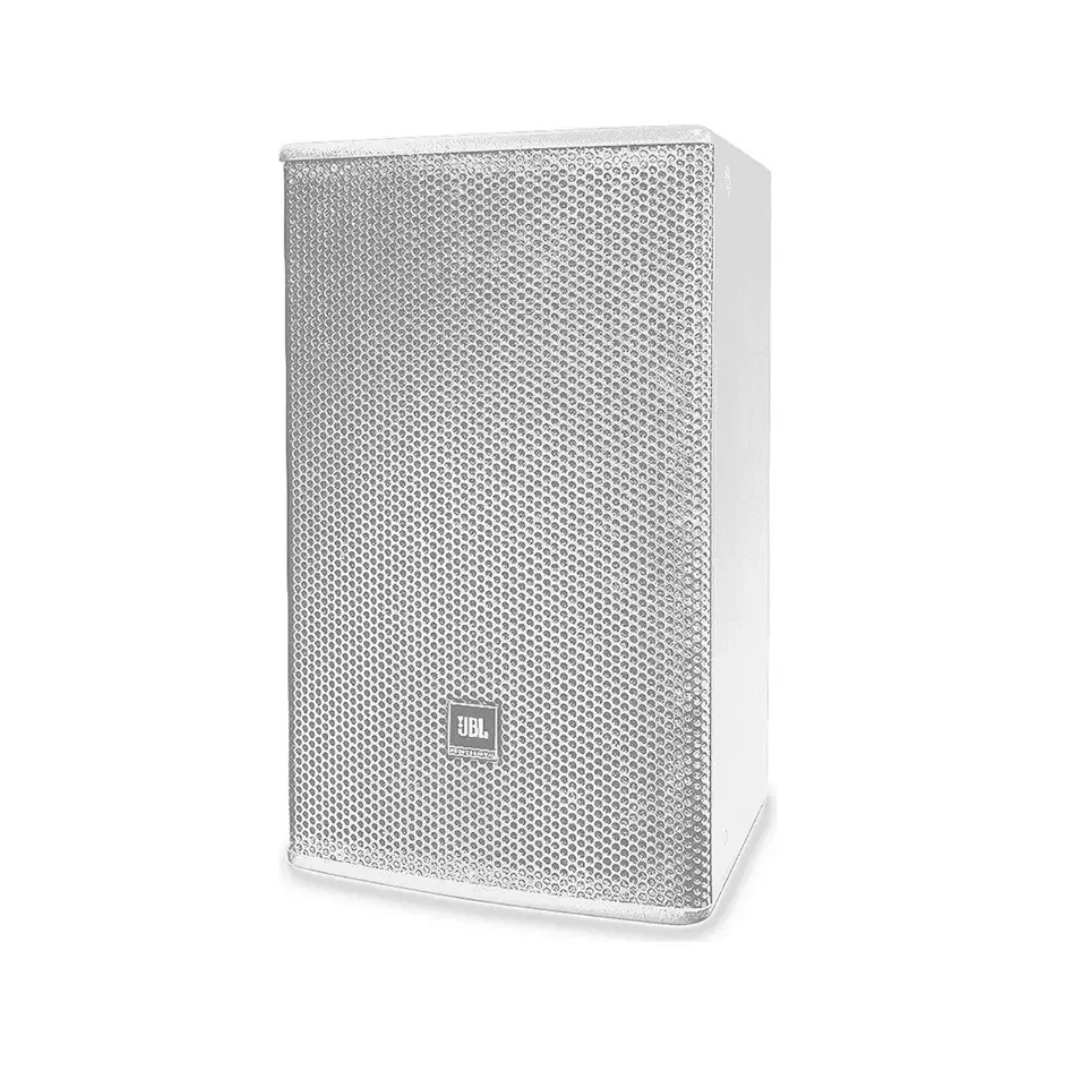

Black DuraFlex or White (AM7315/64-WH)

Grille:
Powder-coated steel with acoustic foam backing

Suspension Points:
13 M10 rigging points (top, bottom, sides, rear)

Connectors:
NL8 Speakon and covered barrier strip terminals
Supports up to 10 AWG wire or 0.375 inch spade lugs

Environmental Rating:
Mil-Std 810, IP-x3 (weather-resistant)

Dimensions (H x W x D):
967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)

Weight:
45.8 kg (101 lbs)
