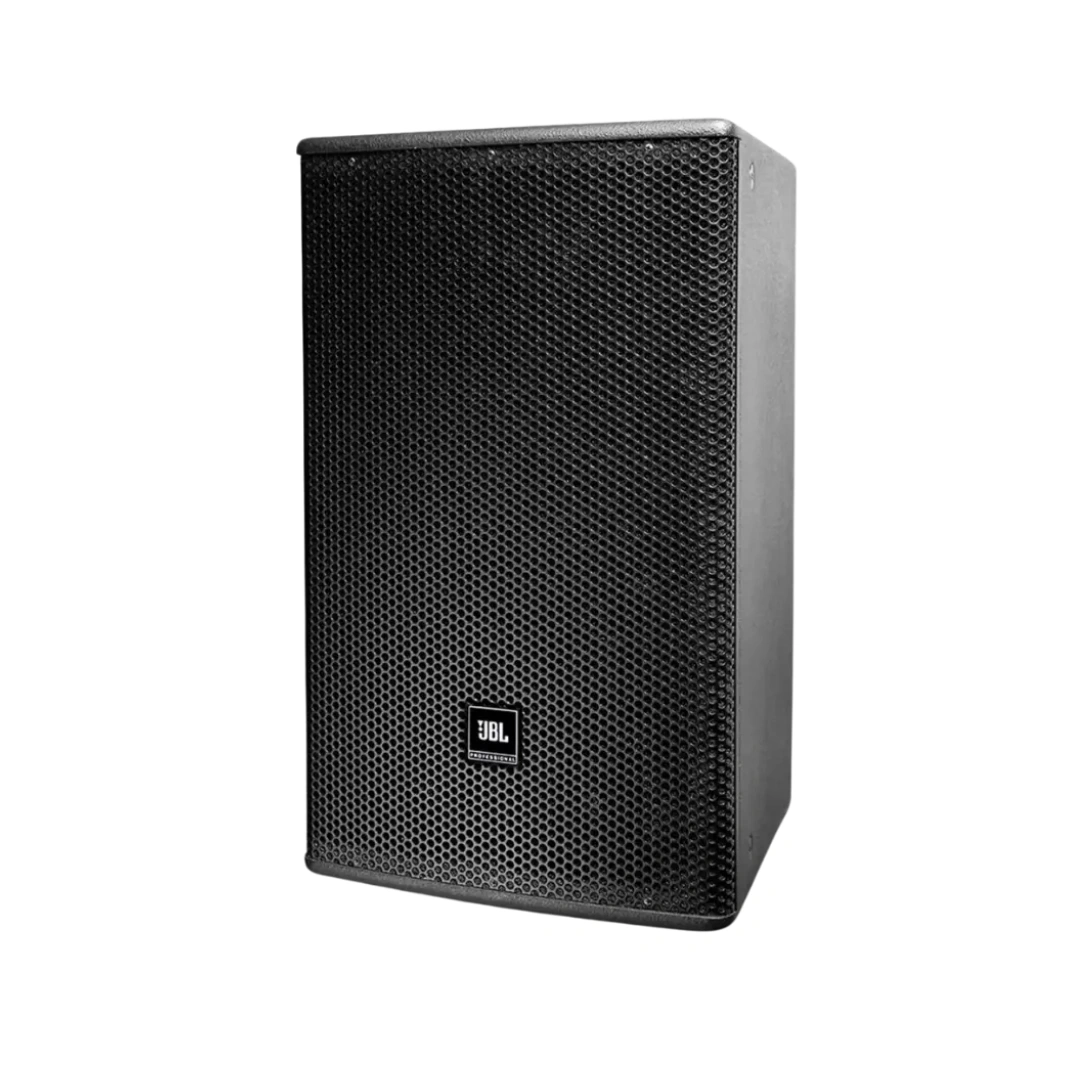

The JBL Speaker AC15 delivers powerful and clear audio in a compact design, perfect for small to medium-sized venues. Built with JBL’s advanced technology, it ensures exceptional sound quality and durability. Its high-output performance makes it ideal for live events, auditoriums, and professional setups. The sleek and sturdy design enhances portability and long-term reliability. Experience premium sound with the JBL Speaker AC15 for an immersive audio experience.
Full Specifications – JBL Speaker AC15
General Specifications:
- Speaker Type: Passive 2-Way Loudspeaker
- Driver Size: 5.25-inch (133mm) Woofer, 1-inch (25mm) Compression Driver
- Frequency Response: 85Hz – 20kHz
- Power Handling:
- Continuous Power: 250W
- Program Power: 500W
- Peak Power: 1000W
- Impedance: 8 Ohms
- Sensitivity (1W/1m): 90 dB
- Maximum SPL: 115 dB
Design & Build:
- Enclosure Type: Compact Bass-Reflex (ported)
- Cabinet Material: MDF with Durable Coating
- Grille: Powder-Coated, Perforated Steel
- Color: Black
Connectivity:
- Input Connectors: Neutrik® Speakon® NL4 and Barrier Strip Terminals
Physical Dimensions:
- Dimensions (H x W x D): Approx. 254 mm x 178 mm x 152 mm (10″ x 7″ x 6″)
- Weight: Approximately 5-7 kg (Depending on model variation)
Applications:
- Live Sound Reinforcement
- Theaters & Auditoriums
- Conference Rooms & Corporate Events
- Retail & Commercial Installations
- Home & Studio Audio Systems
