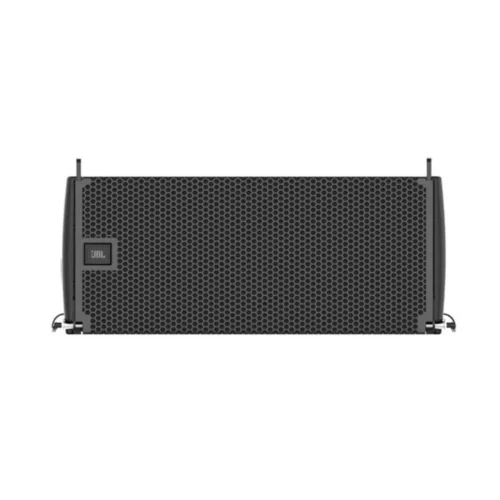

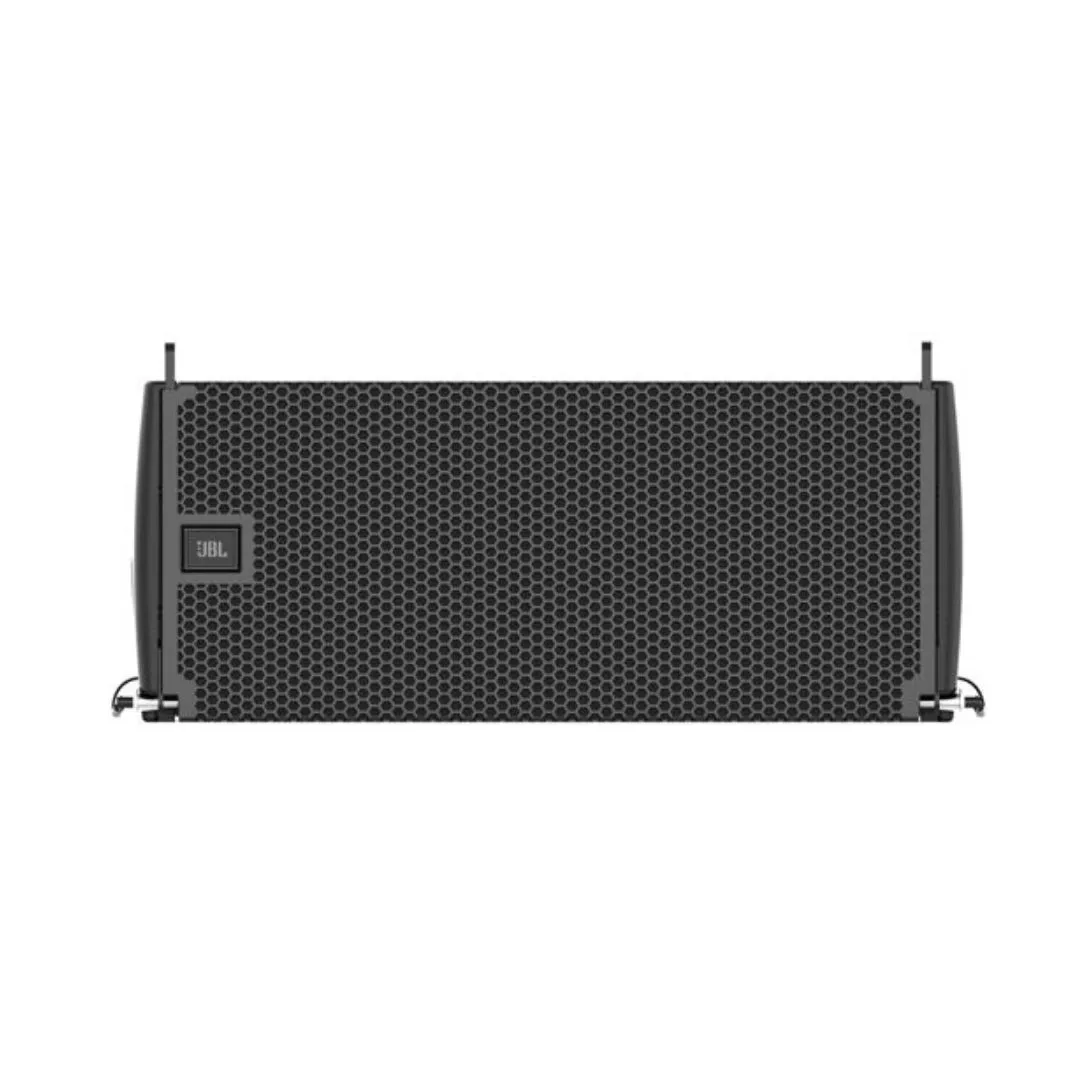

JBL P3230MX Array Speaker High-Performance Audio

Description

JBL P3230MX Array Speaker High-Performance Audio

The JBL P3230MX is a high-performance array speaker engineered for professional sound reinforcement in large venues, stadiums, and auditoriums. With precision-engineered drivers and robust construction, it delivers powerful, full-range audio with exceptional clarity and projection. The P3230MX ensures even coverage and intelligibility in demanding environments. Its durable design is suited for both indoor and outdoor installations. Ideal for applications where consistent, high-output audio is a must.

Full Specifications:

• Model: JBL P3230MX

• Speaker Type: Line array loudspeaker

• Frequency Range (-10 dB): 50 Hz – 18 kHz

• Power Handling: 600W continuous program, 300W pink noise

• Nominal Impedance: 8 ohms

• Sensitivity: 95 dB SPL (1W, 1m)

• Maximum SPL: 122 dB continuous, 128 dB peak

• Driver Configuration: Dual 12″ LF drivers + 1.5″ HF compression driver

• Coverage Pattern: 90° horizontal x 40° vertical

• Crossover Frequency: 1.8 kHz

• Enclosure Material: High-density plywood with durable paint finish

• Grille: Powder-coated steel with acoustic fabric

• Input Connectors: Neutrik Speakon NL4

• Rigging Hardware: Integrated rigging points for array configurations

• Mounting Options: Suspension-ready with compatible flyware

• Finish: Black textured coating

• Dimensions (H x W x D): 920 x 430 x 460 mm (36.2 x 16.9 x 18.1 in)

• Weight: 35 kg (77 lbs)
