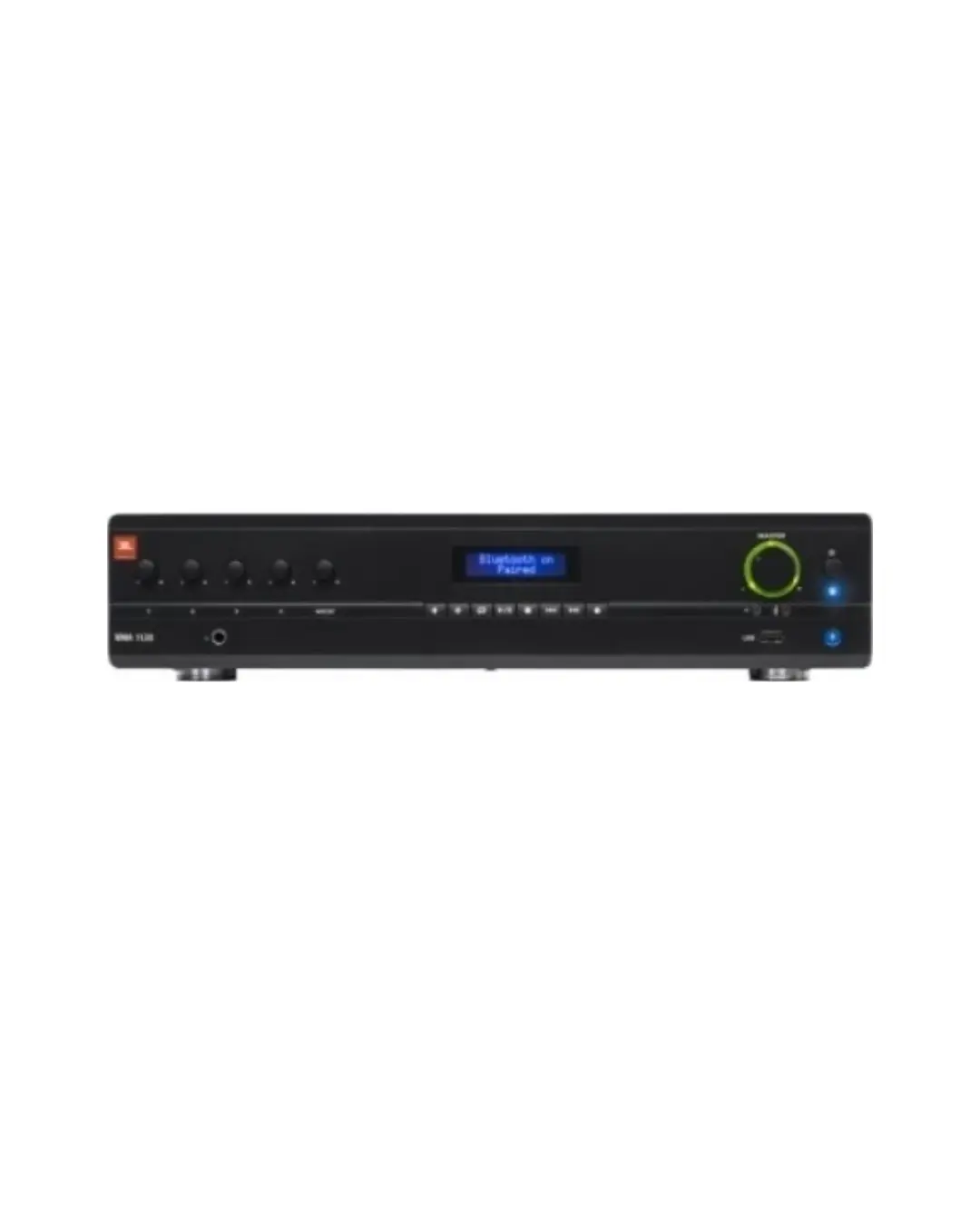

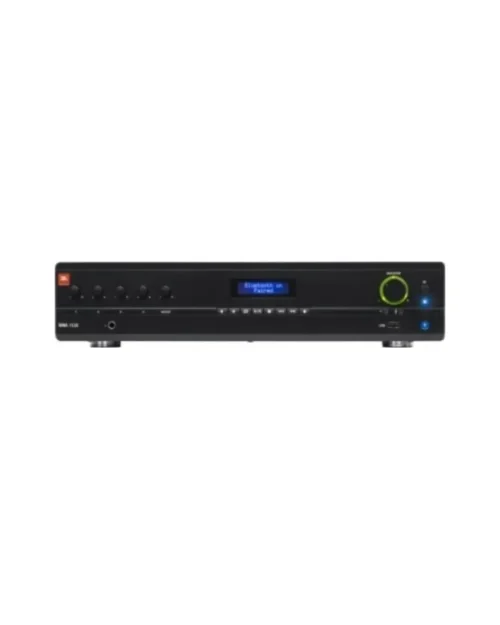

JBL NVMA2120-34-UK Commercial Amplifier

Product Name: JBL NVMA2120-34-UK
Product Type: Commercial Mixer Amplifier
Brand: JBL Professional

Audio Performance:

• Power Output: 120 watts per channel (at 4Ω or 8Ω)

• Number of Input Channels: 8

• Number of Output Channels: 2

• Frequency Response: 20 Hz – 20 kHz (Low-Z), 80 Hz – 15 kHz (70V/100V)

• Total Harmonic Distortion (THD): Less than 0.5%

• Signal-to-Noise Ratio: Over 76 dB

• Tone Controls: Bass ±14 dB @ 50 Hz, Treble ±14 dB @ 10 kHz

Input and Output:

• Mic Input Sensitivity: 5.5 mVrms

• Line Input Sensitivity: 1.3 Vrms

• RCA Input Sensitivity: 130 mVrms

• Input Impedance (Mic): 400Ω

• Input Impedance (Line): 20kΩ (Balanced)

• RCA Input Impedance: 50kΩ

• Phantom Power: 27 VDC

Connectivity Features:

• USB Input: Yes

• Bluetooth: Yes

• Ethernet: Yes

• Output Support: 4Ω, 8Ω, 70V, and 100V speaker systems

Power and Environment:

• Power Supply: 100V, 120V, 220V, 220–240V (50/60 Hz)

• Power Consumption: 225 watts

• Operating Temperature: 0°C to 35°C

• Storage Temperature: -20°C to 85°C

• Operating Humidity: Up to 95% (non-condensing)

Physical Characteristics:

• Dimensions (W x D x H): 432 x 415 x 88 mm

• Weight: Approx. 13.3 kg

• Color: Black

Additional Features:

• Built-in paging chime

• Priority muting

• Compatible with JBL CSR-V wall controllers

• Rack-mountable (hardware included)
