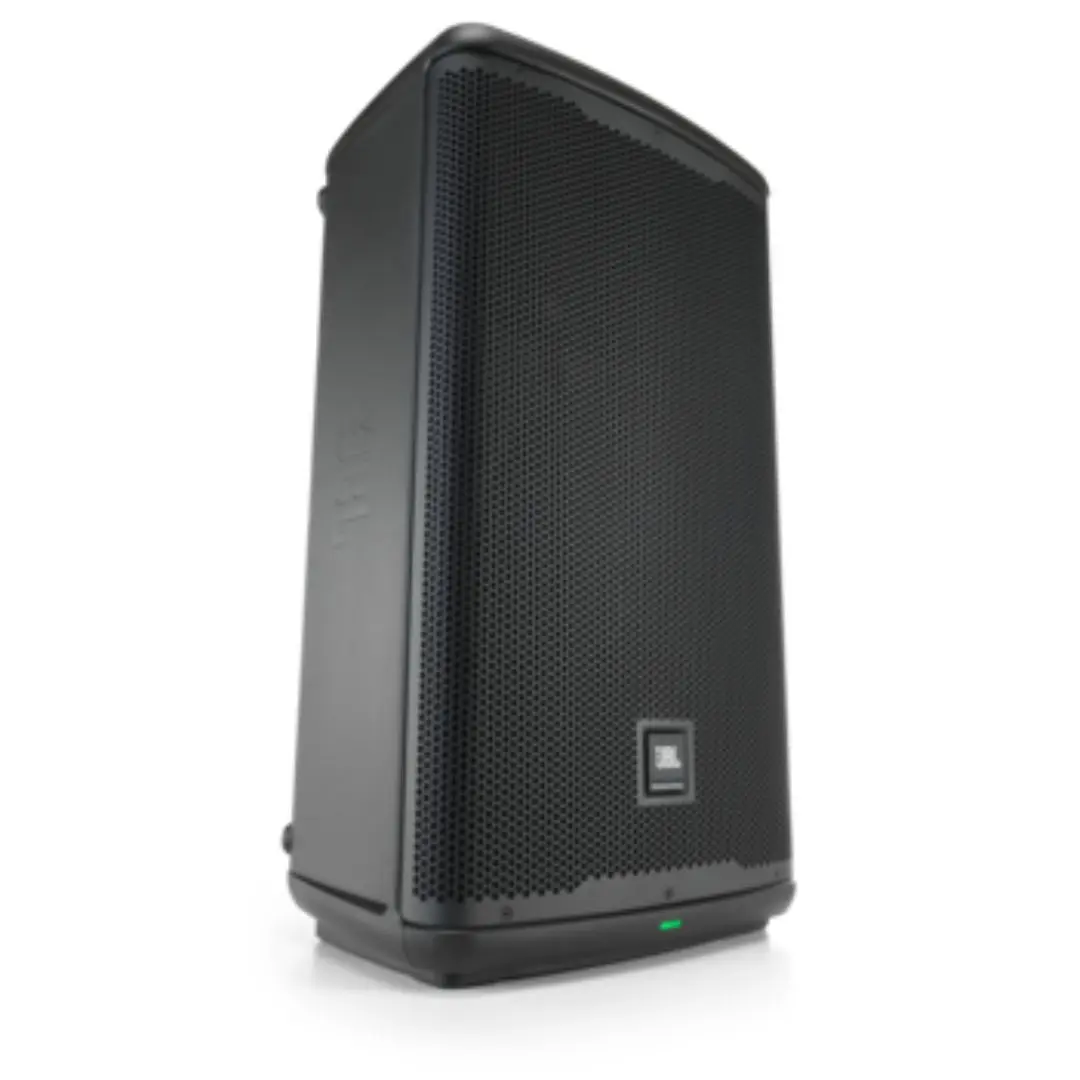

JBL EON 712 EK-Professional Powered 12″ PA Speaker System

The JBL EON 712 EK is a premium powered PA speaker from JBL’s renowned EON series, representing the culmination of decades of audio engineering expertise. This 12-inch two-way speaker system combines exceptional sound quality, advanced digital technology, and rugged portability to meet the demands of today’s audio professionals. Whether used for live music performances, DJ events, corporate presentations, or fixed installations, the EON 712 delivers impressive sound coverage and clarity in a remarkably lightweight and durable package.

Key Features Of JBL EON 712 EK

Superior Sound Performance

• Advanced Waveform Technology: Utilizes JBL’s patented waveform design for consistent coverage and improved clarity throughout the venue
• Optimized Directivity: 110° horizontal × 60° vertical coverage pattern ensures balanced sound distribution
• High-Performance Drivers: Custom-engineered 12-inch woofer coupled with a 2.5-inch voice coil neodymium compression driver
• Enhanced Low-Frequency Extension: Redesigned bass-reflex port system for improved low-frequency performance
• Studio-Quality Sound Processing: Built-in 24-bit/48kHz DSP with advanced acoustic tuning

Powerful and Efficient Amplification

• Class D Amplifier: 1300W peak (650W continuous) power with exceptional efficiency
• High Maximum SPL: Achieves 127dB maximum sound pressure level
• Thermal Protection: Advanced monitoring system prevents overheating during extended use
• Power Factor Correction: Ensures consistent performance even with unstable power sources

Intuitive Control and Connectivity

• Bluetooth Integration: Control speaker parameters wirelessly via the JBL Pro Connect app
• Universal Connectivity: Two XLR/TRS combo inputs with independent gain control
• Pass-Through Capability: XLR output for connecting multiple speakers in a chain
• Integrated Mixer: Basic mixing functionality with dedicated volume controls
• Phantom Power: +48V phantom power for connecting condenser microphones directly
• Bluetooth Audio Streaming: Wireless audio playback capability (on select models)

Smart Features Of JBL EON 712 EK

• Feedback Suppression: Intelligent feedback detection and suppression technology
• Preset EQ Modes: Factory presets for various applications (Music, Speech, DJ, etc.)
• User-Definable Presets: Store custom EQ settings for quick recall
• Front LED Indicator: Visually confirms power status and signal presence
• Auto Power-Off: Energy-saving feature for when the speaker is not in use

Specifications

• System Type: Self-powered 12″ two-way speaker
• Frequency Response: 45Hz – 20kHz (-10 dB)
• Frequency Range: 55Hz – 18kHz (±3 dB)
• Maximum SPL: 127 dB
• Amplifier Power Rating: 1300W peak / 650W continuous
• Crossover Frequency: 1.8 kHz
• System Latency: < 2ms

Transducers

• LF Driver: 12-inch (305mm) woofer with 2.5-inch voice coil
• HF Driver: 1-inch (25.4mm) neodymium compression driver
• Coverage Pattern: 110° horizontal × 60° vertical

Input/Output

• Input Connectors: 2 × XLR/TRS combo jacks
• Input Impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
• Output Connectors: 1 × XLR pass-through
• USB Port: For firmware updates and service

Mixer/Preamp

• Input Sensitivity: -4 dBu / +4 dBu switchable
• Gain Range: -∞ to +54 dB
• Phantom Power: +48V (switchable)
• EQ: Parametric EQ with accessible bass/treble controls

Physical Specifications

• Enclosure: Polypropylene composite with textured finish
• Grille: Powder-coated perforated steel with acoustically transparent backing
• Mounting: 36mm pole socket with stabilizing screw, M10 suspension points (12 points)
• Handles: One ergonomic handle with rubber grip
• Dimensions (H × W × D): 25.7″ × 15.75″ × 12.36″ (654mm × 400mm × 314mm)
• Net Weight: 36.6 lbs (16.6 kg)

Electrical Specifications

• Power Requirements: 100-240 VAC, 50/60 Hz
• Power Consumption: 100W (1/8 power)
• Current Draw (1/8 power): 1.2A (120V), 0.6A (230V)
• Connector Type: PowerCON® TRUE1 with power loop-through capability

JBL Pro Connect App Integration

The JBL Eon 712 Ek  can be controlled remotely through the JBL Pro Connect mobile application, offering:

• Real-time access to all onboard DSP parameters
• 8-band parametric EQ with Q factor and gain adjustment
• Delay settings for time alignment in larger systems
• Preset management for saving and recalling custom settings
• Speaker grouping for controlling multiple units simultaneously
• Real-time level monitoring and control

Acoustic Innovations

• Radiation Boundary Integration (RBI): Precisely integrates the woofer and waveguide for seamless coverage
• Differential Drive® Technology: Reduces weight while increasing power handling and reducing distortion
• Optimized bass-reflex port design: Maximizes low-frequency extension while minimizing turbulence
