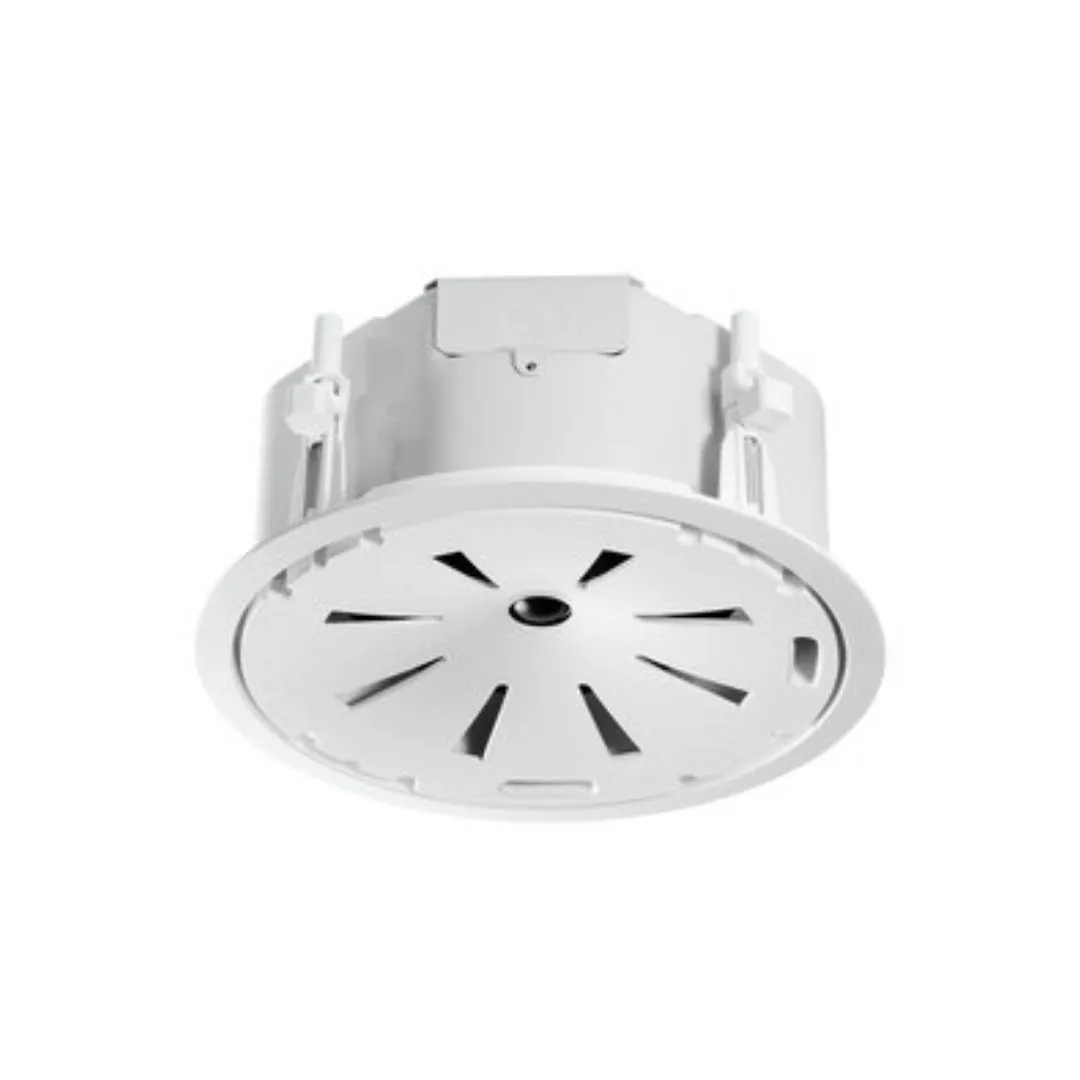

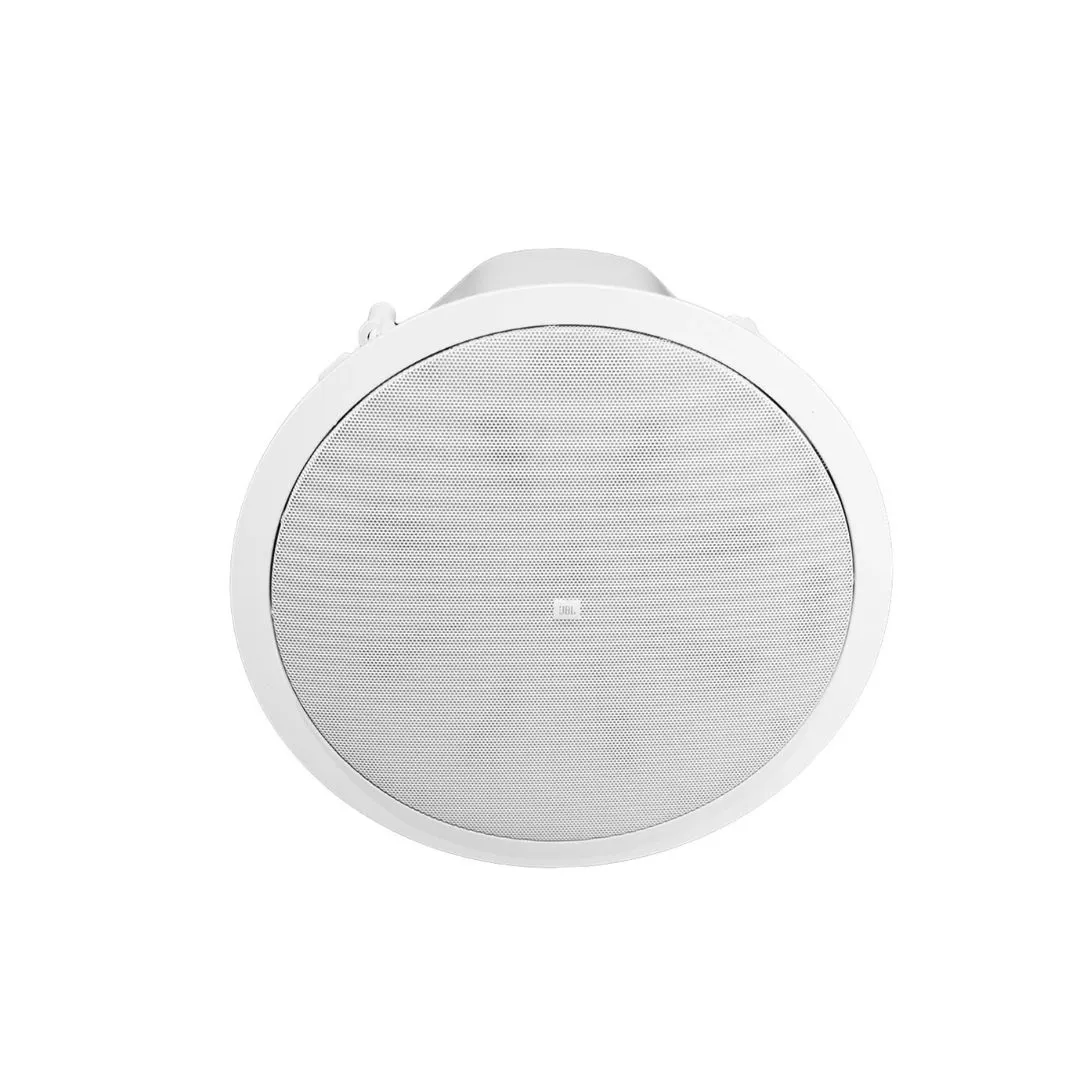

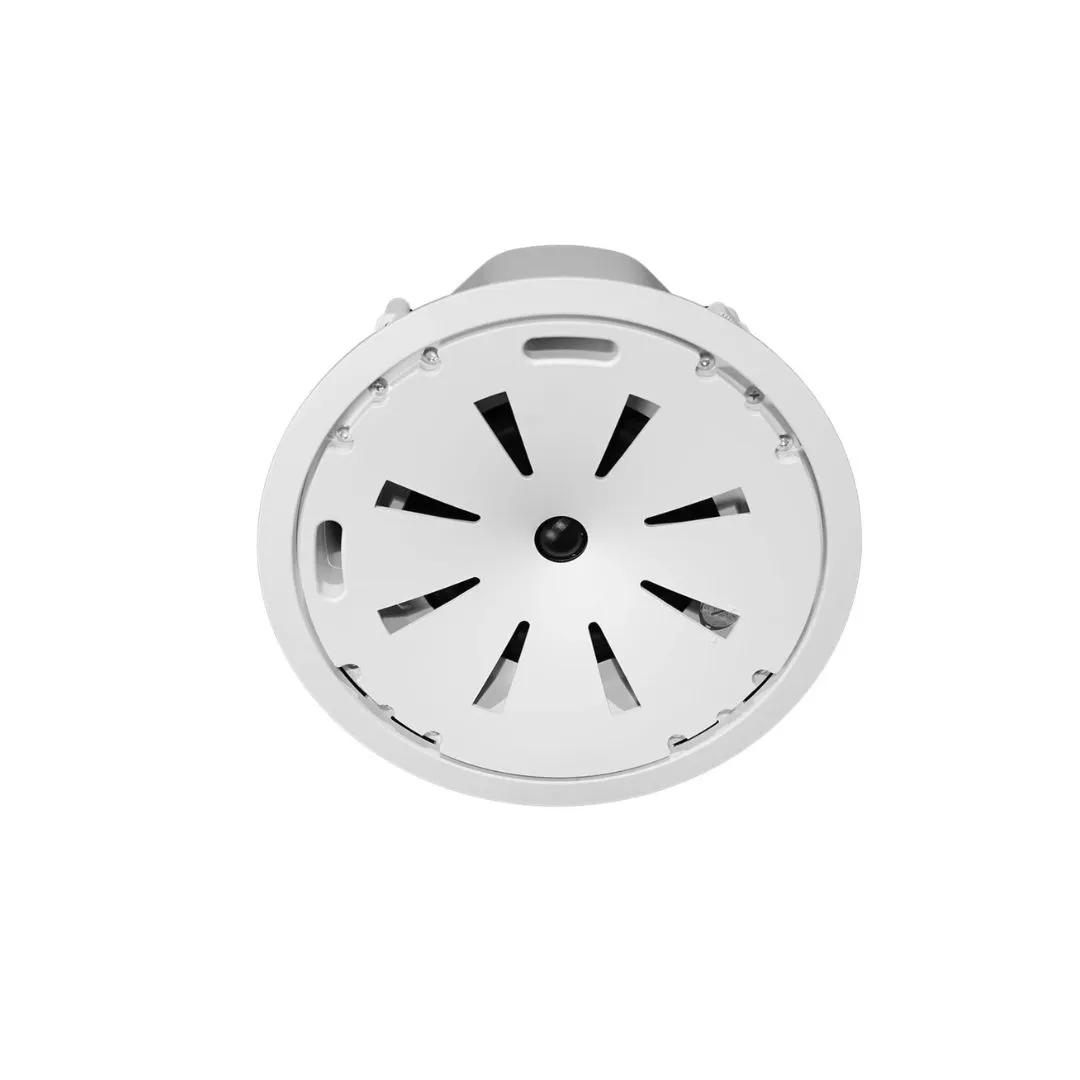

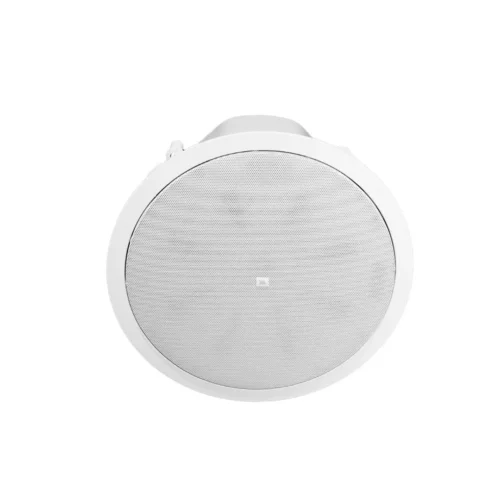

JBL Ceiling Speaker CONTROL 47LP

Description

• Type: In-ceiling loudspeaker

• Design: Coaxial design for broad dispersion

• Mounting: Easy to install with a flush-mount design

• Driver Configuration: Dual drivers – 6.5-inch woofer, 1-inch tweeter

• Power Handling: 50 watts (nominal) and 200 watts (peak)

• Frequency Response: 45 Hz to 20 kHz

• Impedance: 8 ohms

• Sensitivity: 89 dB (1W/1m)

• Max SPL (Sound Pressure Level): 111 dB

• Coverage Pattern: 120-degree dispersion for consistent sound across the room

• Speaker Grille: Low-profile, paintable grille for seamless integration with ceiling

• Mounting Mechanism: Includes secure mounting hardware for easy installation

• Certifications: UL Listed for safety and reliability

• Usage: Ideal for both home and commercial audio systems

• Application: Perfect for background music and high-quality audio in indoor spaces like offices, schools, and restaurants

Dimensions:

• Speaker Diameter: 8.75 inches (222mm)

• Mounting Depth: 4.1 inches (104mm)

• Cutout Diameter: 7.5 inches (190mm)

Materials:

• Woofer Material: Polypropylene cone with rubber surround for durability

• Tweeter Material: Soft dome for crisp, clear highs

Installation & Compatibility:

• Easy Installation: Simple, tool-free mounting with a spring-loaded mechanism

• Ceiling Mounting: Fits standard ceiling cutouts (190mm diameter)

• Compatibility: Works with both commercial and home audio amplifiers and receivers

Environmental Conditions:

• Temperature Range: Can operate in temperatures ranging from -20°C to 70°C

• Humidity Range: Can withstand humidity levels up to 95%

Other Features:

• Weight: 2.3 kg (5.1 lbs)

• Color: White (can be painted to match ceiling color)

• Warranty: 2-year warranty for peace of mind

Applications:

• Home Audio: Perfect for living rooms, kitchens, and home theaters

• Commercial Use: Suitable for offices, stores, hotels, and schools
