JBL Ceiling Speaker CONTROL 47C/T High-Quality

Description

JBL Ceiling Speaker CONTROL 47C/T High-Quality

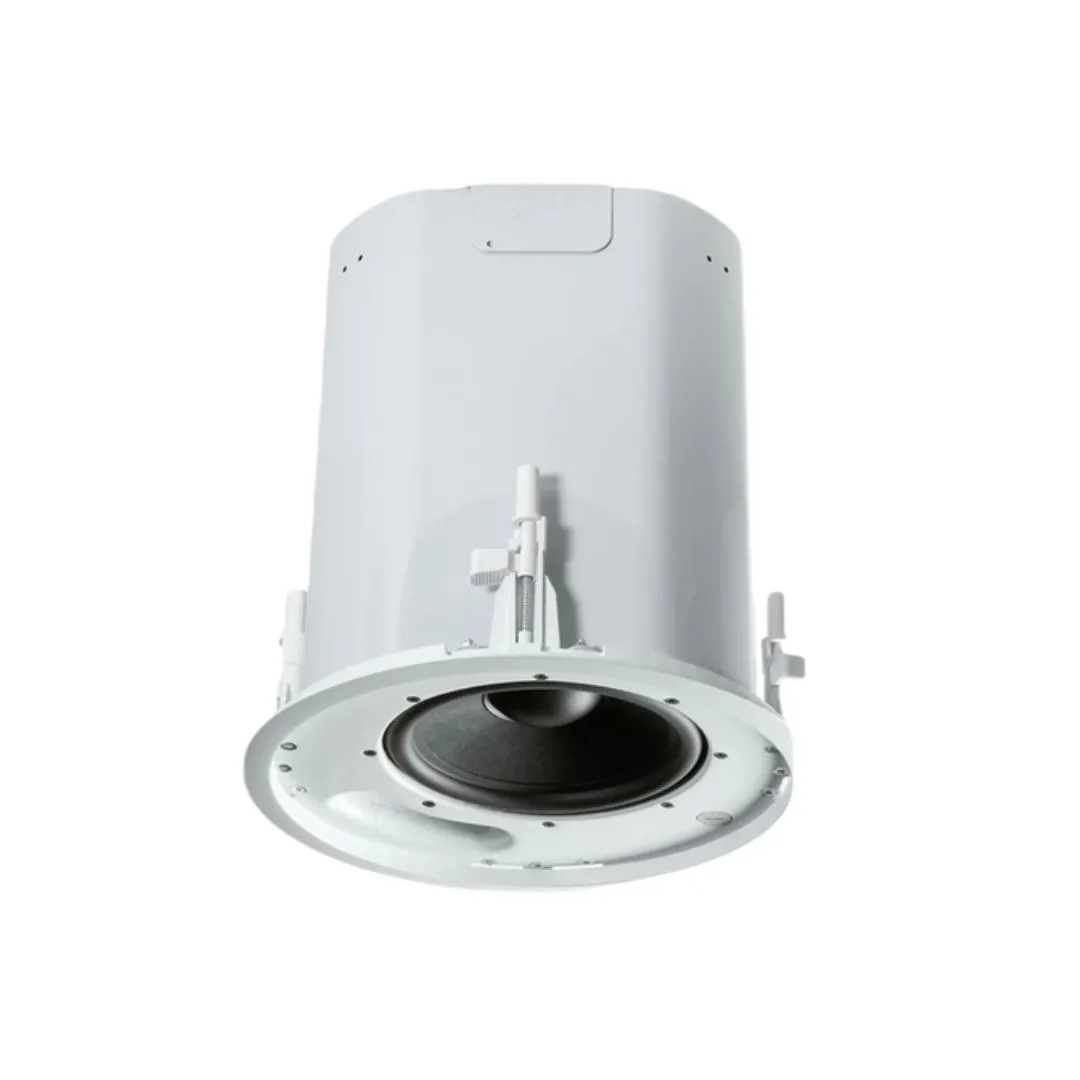

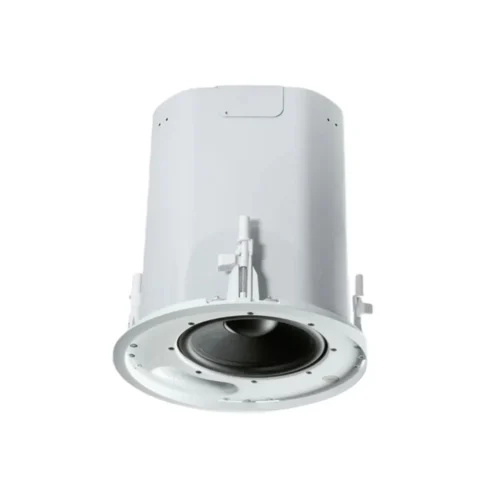

The JBL Control 47C/T is a premium in-ceiling speaker designed for commercial spaces like restaurants, retail stores, and offices. It features JBL’s proprietary Radiation Boundary Integrator (RBI®) technology, delivering wide 120° conical coverage with consistent sound quality across large areas. Its integrated backcan enhances bass response down to 55 Hz, providing a rich, full-bodied sound. With a sleek design, it blends seamlessly into various decors, making it both functional and aesthetically pleasing. The speaker supports both 8-ohm and 70V/100V systems, offering flexibility for different audio setups.

Full Specifications;

• Frequency Range: 55 Hz – 20 kHz

• Power Handling: 150W program, 75W continuous pink noise

• Sensitivity: 91 dB (1W, 1m)

• Coverage Pattern: 120° conical

• Impedance: 8 ohms (bypass mode)

• Transformer Taps: 60W, 30W, 15W (7.5W at 70V only)

• Drivers:

  • Low Frequency (LF): 6.5″ (165 mm) woofer with polypropylene cone and butyl rubber surround

  • High Frequency (HF): 1″ (25 mm) soft dome tweeter with ferrofluid cooling

• Maximum SPL: 110 dB average, 116 dB peak

• Dimensions: 12″ diameter x 10.2″ depth (305 mm x 259 mm)

• Ceiling Cutout Size: 11.1″ (282 mm) diameter

• Weight: 11 lbs (5 kg)

• Included Accessories: Grille, C-ring support backing plate, tile support rails, paint shield, cutout template

• Certifications: UL1480, UL2043, NFPA90 & NFPA70 compliant
