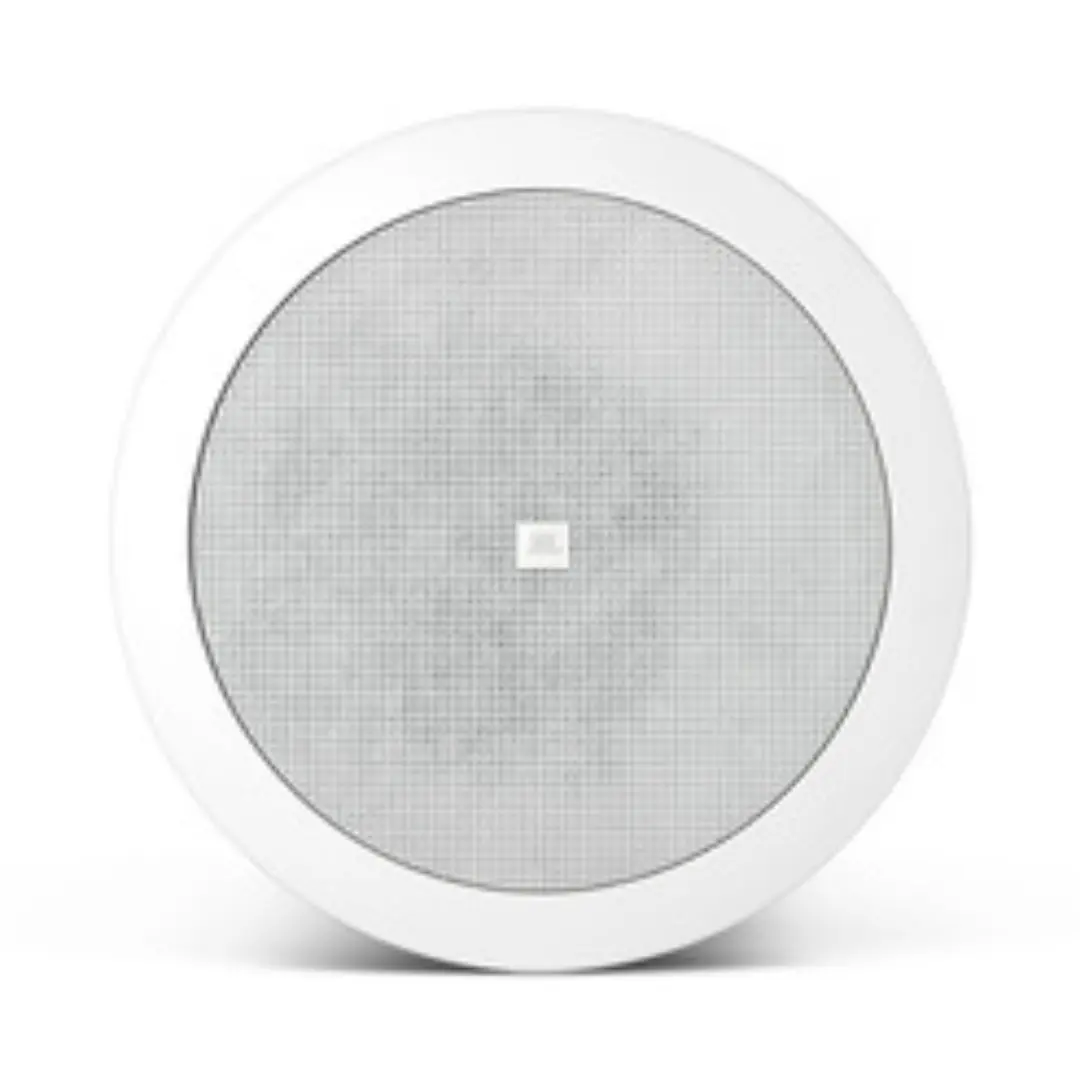

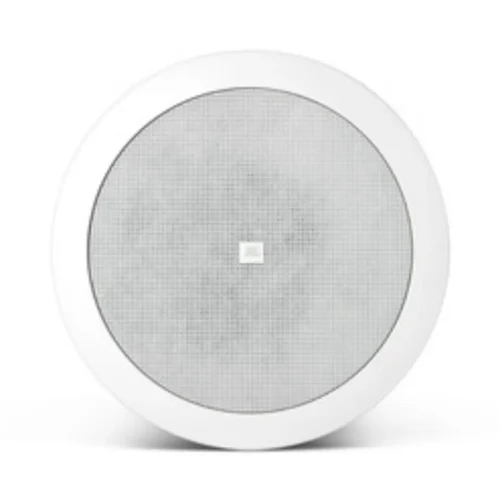

JBL Ceiling Speaker CONTROL 24CT MICRO SPEAKER

Description

The JBL Ceiling Speaker Control 24CT Micro is a compact in-ceiling speaker designed to deliver high-quality sound in background music and paging systems. With its shallow 4-inch depth, it fits easily into ceilings with limited space. The speaker features a 4.5-inch woofer and a 0.5-inch tweeter, ensuring clear and balanced audio across a wide frequency range. Its 150° conical coverage angle allows for even sound distribution, making it ideal for both commercial and residential installations.

Specifications of JBL Ceiling Speaker Control 24CT

• Frequency Range: 85 Hz – 25 kHz

• Power Capacity: 30 W continuous program power; 15 W continuous pink noise

• Transformer Taps: 9 W, 4 W, 2 W, 1 W, and 0.5 W taps at 70V; 9 W, 4 W, 2 W, and 1 W taps at 100V

• Crossover Frequency: 3.5 kHz

• Maximum SPL (1m): 94 dB at 9 W tap

• Sensitivity: 86 dB (100 Hz – 10 kHz)

• Coverage Angle: 150° conical

• Input Connectors: Screw-down terminals

• Drivers:

  • LF Driver: 115 mm (4.5 in)

  • HF Driver: 12 mm (0.5 in)

• Color: White

• Safety Agency Approvals: UL1480, UL2043, NFPA90, NFPA70, S7232/UL Listed, Signaling Speaker

• Backcan: Formed steel (included “blind-mount”)

• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-O

• Ceiling Cutout Size: 167 mm (6.6 in) diameter

• Included Accessories: C-shaped support backing plate, 2 tile support rails (fits both 2 ft and 600 mm tiles), cutout template (cardboard)

• Optional Accessories: MTC-24TR trim ring for retrofit installations, MTC-24NC optional new construction bracket, flat, MTC-24MR optional mud ring construction bracket

• Plenum Usage: Yes, backcan included

The JBL Ceiling Speaker Control 24CT Micro is an excellent choice for installations requiring high-quality audio in a compact form factor. Its wide frequency response and broad coverage make it suitable for various applications, including retail spaces, offices, and hospitality venues. The included accessories and safety certifications ensure a straightforward and secure installation process.
