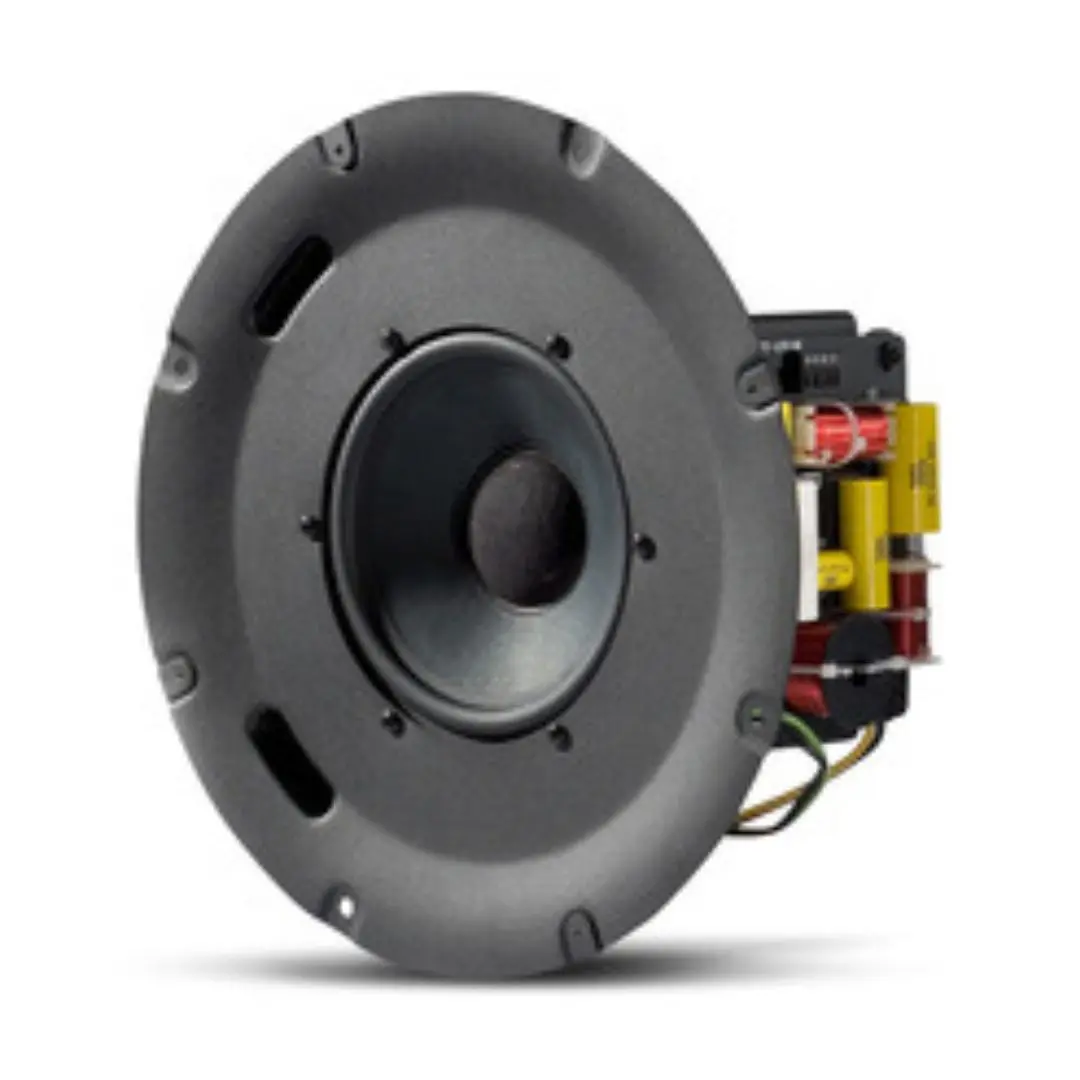

JBL Ceiling Speaker CONTROL 227C High-Performance Audio

Description

The JBL Ceiling Speaker CONTROL 227C is a high-performance, passive 6.5-inch coaxial ceiling loudspeaker engineered for professional audio applications. Designed to deliver exceptional sound quality in ceiling-mounted installations, it is ideal for conference rooms, retail spaces, restaurants, and airports.

 Specifications

• Driver Configuration: 6.5″ Kevlar-reinforced low-frequency driver coupled with a 1″ exit titanium compression driver.

• Frequency Response: 75 Hz to 17 kHz (-3 dB), extending to 43 Hz to 19 kHz (-10 dB).

• Power Handling: 150W continuous (600W peak), ensuring robust performance.

• Sensitivity: 90 dB (measured in half-space).

• Impedance: 8 ohms.

• Coverage Angle: 120° conical, providing broad and even sound distribution.

• Dimensions: 305 mm (12″) diameter; depth from back of baffle: 147 mm (5.8″).

• Weight: 4.1 kg (9.0 lbs).

• Mounting: Designed for in-ceiling installations; compatible with optional JBL back cans and grilles.

 Key Features

• Coaxial Design integrates both low- and high-frequency drivers in a single unit, ensuring a coherent wavefront and minimal phase distortion.

• Advanced Crossover Network: Employs an 18 dB/octave high- and low-pass filter to maintain natural midrange tonality and consistent coverage.

• Broadband Pattern Control: Delivers consistent 120° coverage, reducing the number of speakers required and simplifying system design.

• Durability: Underwent JBL’s rigorous 100-hour torture power test, adhering to stringent reliability standards.

• Easy Installation: Features a removable locking connector with screw-down terminals for straightforward wiring.

 Applications

The JBL Ceiling Speaker CONTROL 227C is tailored for various commercial and professional settings:

• Corporate Environments: Enhances audio clarity in boardrooms and meeting spaces.

• Retail and Hospitality: Provides background music and paging capabilities in stores and restaurants.

• Public Venues: Ideal for airports, lobbies, and other public spaces requiring clear audio distribution.

• Educational Institutions: Facilitates announcements and instructional audio in classrooms and auditoriums.

 Optional Accessories

To complement of JBL Ceiling Speaker CONTROL 227C offers several accessories:

• MTC-200BB6 Backcan: A 0.5 cubic foot cylindrical enclosure that enhances bass response and reduces sound leakage.

• MTC-RG6/8 Grille: A round grille designed to match the speaker’s aesthetic and protect the driver.

• MTC-TB6/8 Tile Bridge: Assists in securing the speaker in suspended ceilings
