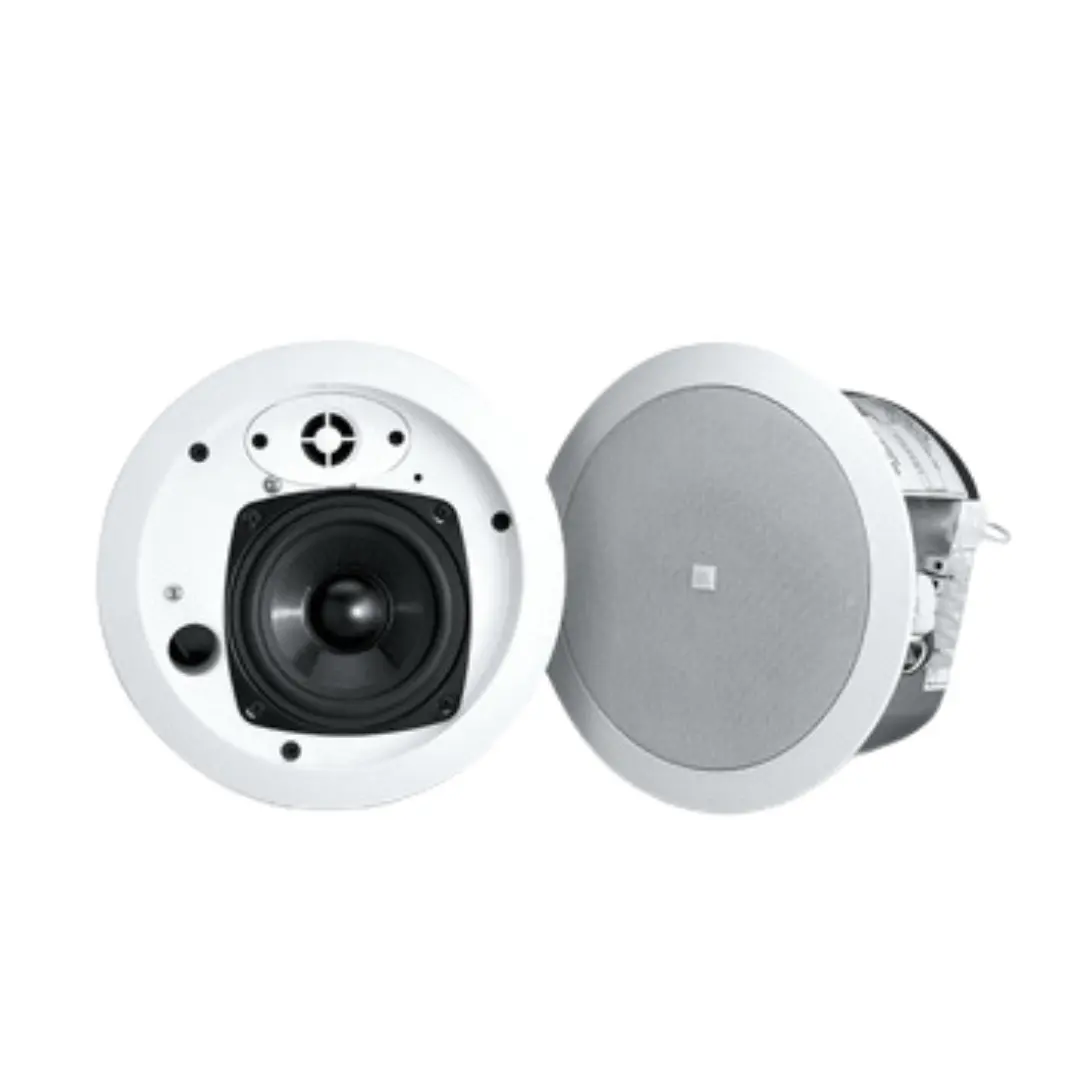

JBL ceiling speaker CONTROL 19CS

JBL ceiling speaker CONTROL 19CS

The JBL Control 19CS is a high-performance, in-ceiling speaker designed to deliver clear, high-quality sound for various commercial applications. Featuring a 8″ woofer and a soft dome tweeter, it ensures wide frequency response and high output. Its compact design allows easy installation in suspended ceilings, making it ideal for retail, hospitality, and office environments. The speaker is versatile with multi-tap transformer options for 70V/100V systems, and its rugged build ensures durability for long-term use. It provides excellent sound coverage and reliability, fitting seamlessly into commercial sound systems.

Full Specifications

• Driver Type: 8″ woofer and 1″ soft dome tweeter for clear sound

• Frequency Response: 55 Hz – 20 kHz for full-range sound

• Power Handling: 75W RMS, 150W program power

• Impedance: 8Ω direct mode or multi-tap transformer for 70V/100V

• Sensitivity: 91 dB (1W/1m) for clear sound at low power

• Maximum SPL: 112 dB peak for high output

• Coverage: 120° conical coverage for even sound distribution

• Transformer Taps: 60W, 30W, 15W at 70V/100V

• Mounting: Easy blind-mount installation with dog-ear clamps

• Environmental: Fire-rated grille and housing for safety

• Dimensions: 9.5″ (240 mm) diameter, 6.2″ (158 mm) depth

• Weight: 4.6 kg (10.1 lbs) per speaker
