JBL ceiling speaker CONTROL 16C-VA

Description

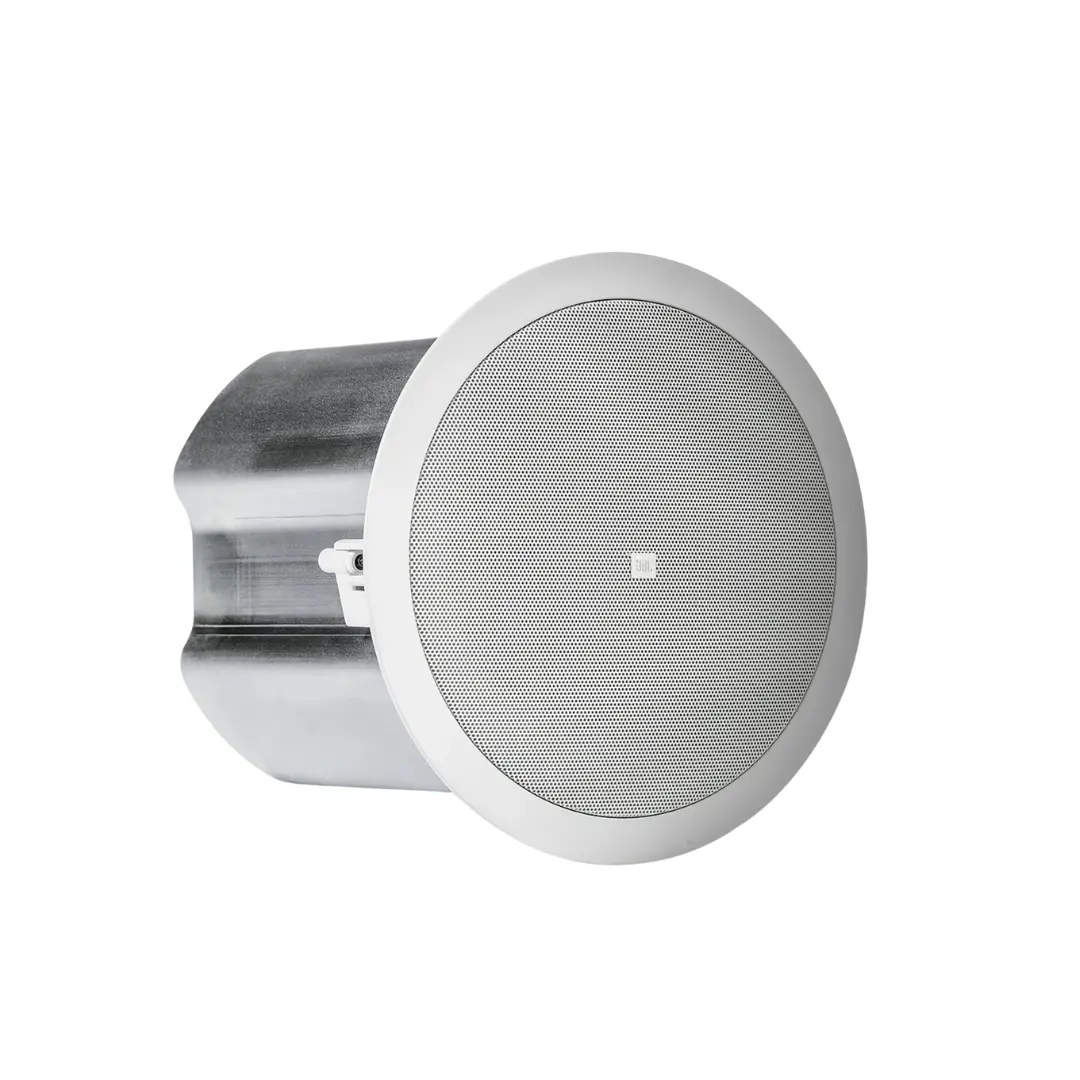

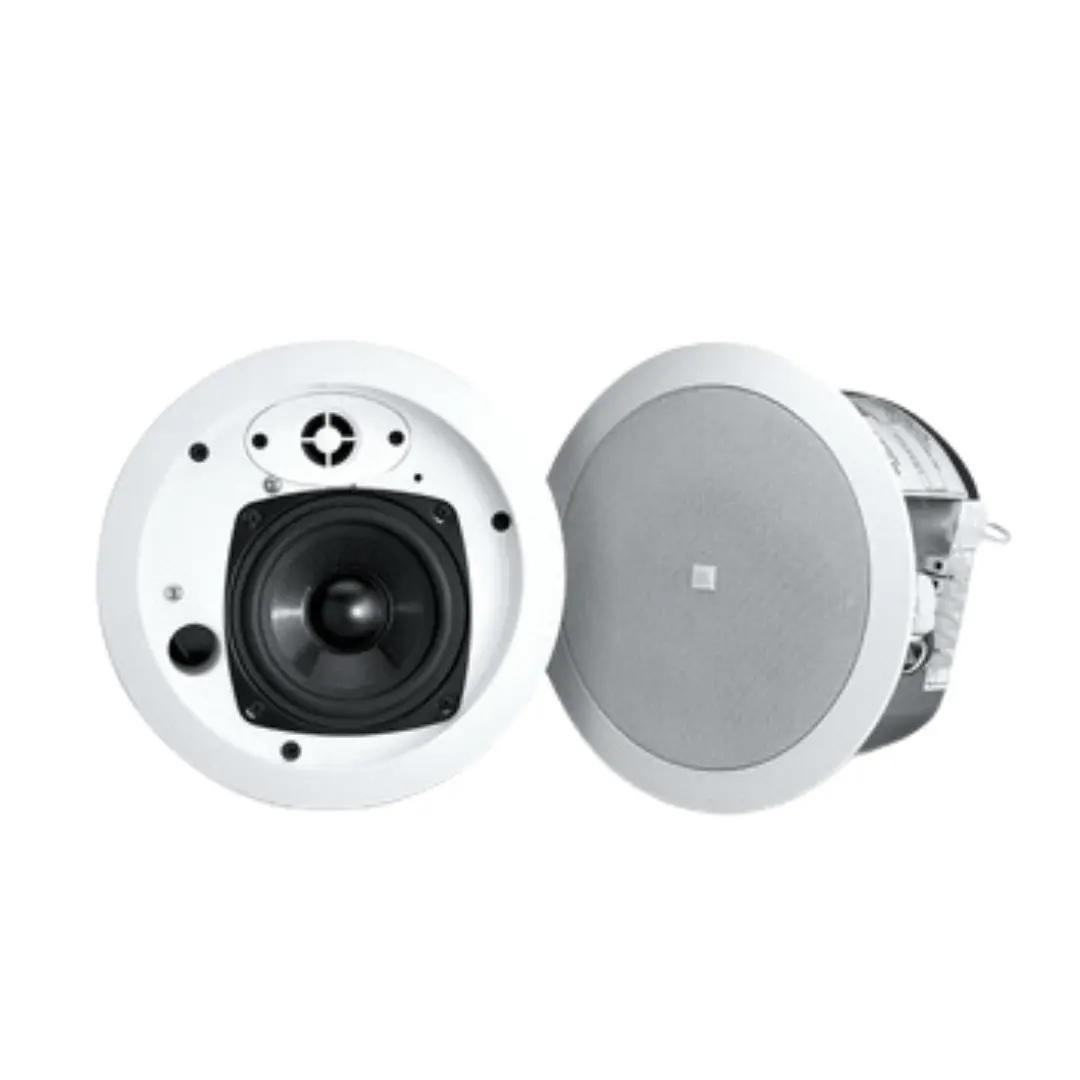

JBL ceiling speaker CONTROL 16C-VA

The JBL Control 16C-VA is a high-performance ceiling speaker designed specifically for voice alarm and emergency systems in commercial and public spaces. It offers excellent speech intelligibility and reliable performance in critical environments. Built to meet EN 54-24 standards, this speaker is ideal for airports, schools, hotels, and other safety-conscious facilities. The 16C-VA features a 6.5″ woofer and 0.75″ tweeter in a compact, easy-to-install form factor. It ensures consistent audio coverage and clear communication even in high-noise areas.

Full Specifications:

• Model: JBL Control 16C-VA

• Type: 2-way ceiling speaker for voice alarm applications

• Certifications: EN 54-24 compliant (for voice alarm and emergency systems)

• Woofer: 6.5″ (165 mm) cone

• Tweeter: 0.75″ (19 mm) dome

• Frequency Range (-10 dB): 62 Hz – 20 kHz

• Power Handling: 50W program, 25W pink noise

• Transformer Taps (70V/100V): 20W, 10W, 5W, 2.5W (plus 8Ω bypass)

• Impedance: 8 ohms (direct)

• Sensitivity: 89 dB SPL (1W, 1m)

• Maximum SPL: 104 dB continuous, 110 dB peak

• Coverage Pattern: 120° conical

• Connection Type: Screw terminal strip with loop-through

• Mounting System: Dog-ear clamps and tile bridge

• Dimensions: 11.4 in (290 mm) diameter x 9.2 in (234 mm) depth

• Cutout Size: 10.6 in (270 mm)

• Weight: 7.2 lb (3.3 kg) per speaker

• Grille: Powder-coated steel with fire-retardant backing

• Enclosure: UL94-V0 rated ABS plastic

• Color: White (paintable)
