JBL ceiling speaker 16C/T and 16C/T-BK

Description

JBL ceiling speaker 16C/T and 16C/T-BK

The JBL Control 16C/T and 16C/T-BK are premium-quality ceiling speakers designed for clear, powerful audio in commercial and professional settings. Perfect for background music and paging systems, these speakers deliver high fidelity with a wide frequency range. Their sleek design allows them to blend seamlessly into any environment, with the 16C/T-BK offering a black finish for more discreet installations. They are easy to install with a dog-ear mounting system and include a multi-tap transformer for use in distributed audio systems. These speakers are ideal for restaurants, offices, retail stores, and other indoor spaces.

Full Specifications:

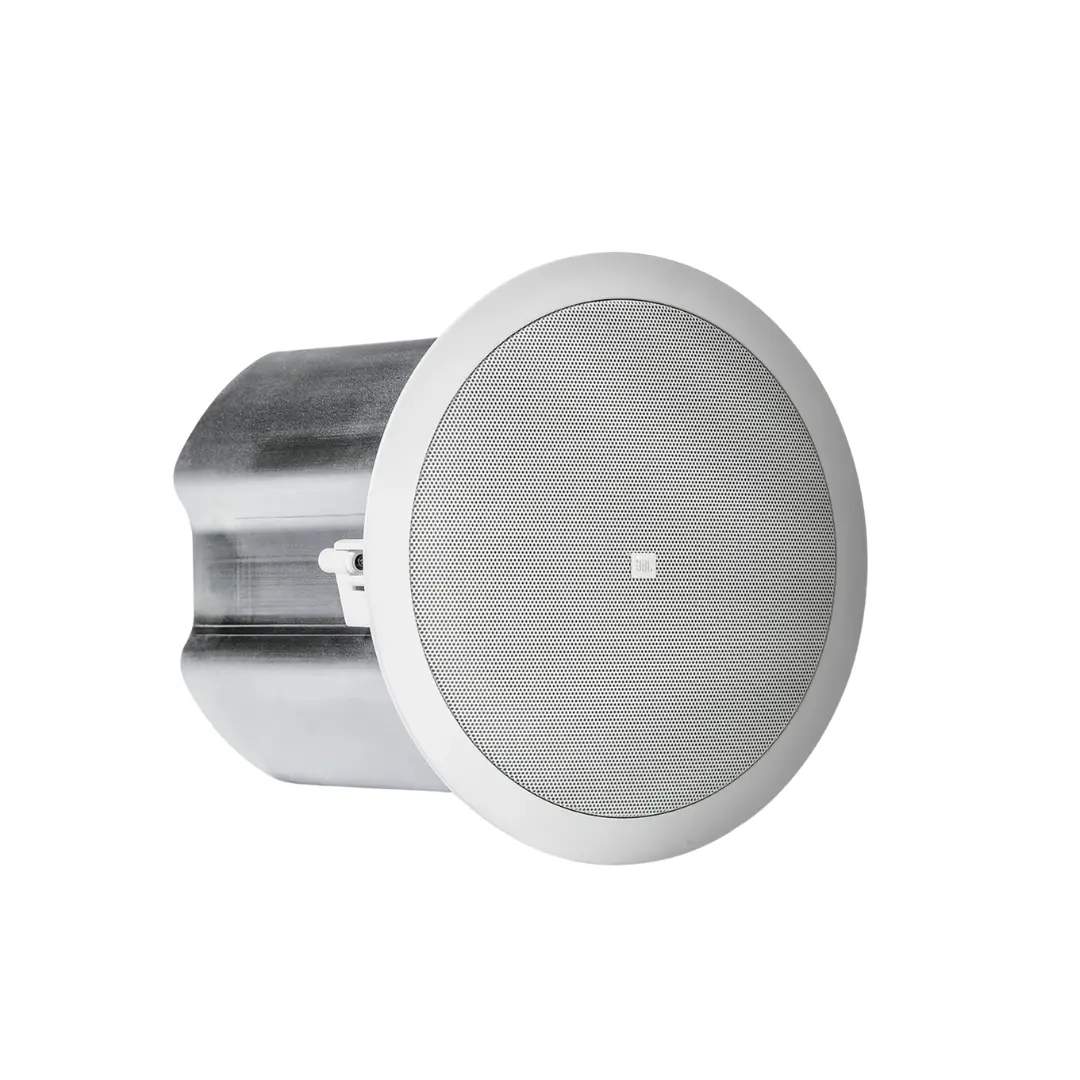

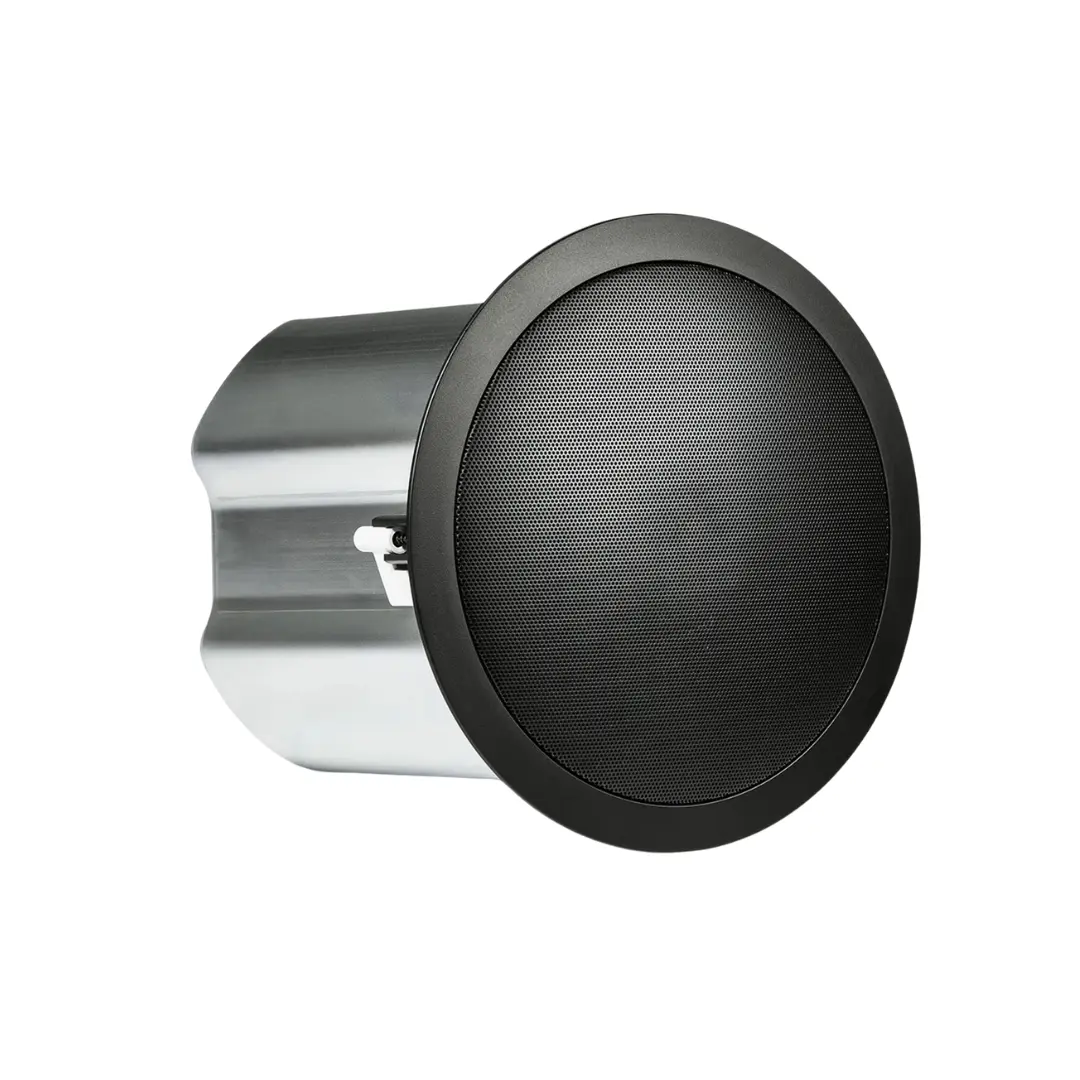

• Model Names: Control 16C/T (White), Control 16C/T-BK (Black)

• Speaker Type: 2-way ceiling loudspeaker

• Frequency Range (-10 dB): 62 Hz – 20 kHz

• Power Handling: 50W continuous program power, 25W continuous pink noise

• Transformer Taps: 70V: 20W, 10W, 5W, 2.5W; 100V: 20W, 10W, 5W

• Impedance: 8 ohms (bypass transformer)

• Sensitivity: 89 dB SPL (1W, 1m)

• Maximum SPL: 104 dB (continuous), 110 dB (peak)

• Coverage Pattern: 120° conical coverage

• Woofer: 6.5″ (165 mm) cone

• Tweeter: 0.75″ (19 mm) dome

• Enclosure Material: UL94-V0 rated baffle, ABS plastic

• Input Connection: Screw-terminal strip

• Dimensions: 11.4 in (290 mm) diameter x 9.2 in (234 mm) depth

• Cutout Size: 10.6 in (270 mm)

• Net Weight: 7.2 lb (3.3 kg) per speaker

• Included Accessories: C-ring support backing plate, tile rails, grille

• Color Options: White (Control 16C/T), Black (Control 16C/T-BK)

• Mounting Method: Dog-ear clamp mounting system

• Certifications: UL1480, UL2043 suitable for air-handling spaces
