JBL CBT 1000 and CBT 1000-WH Column Speakers

Description

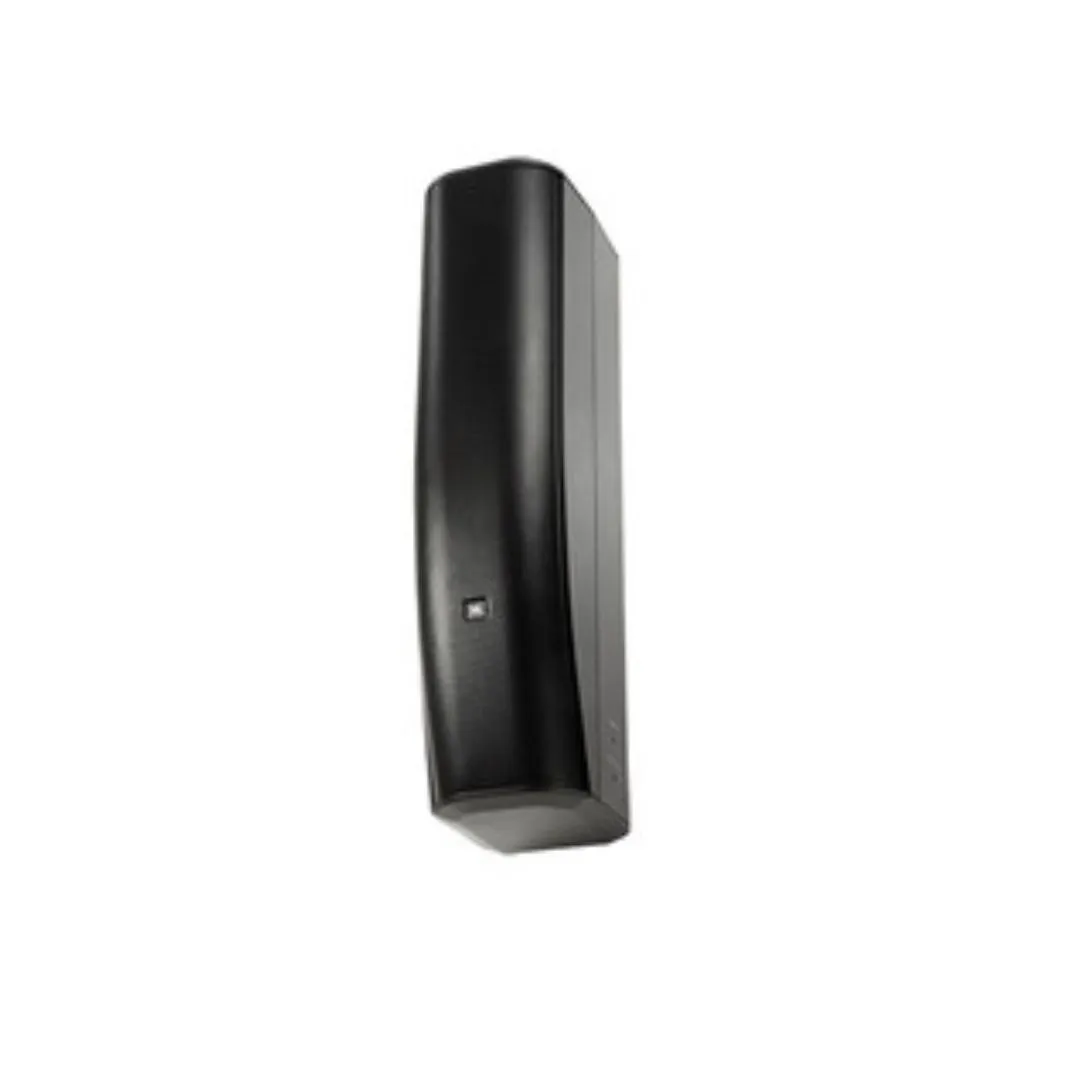

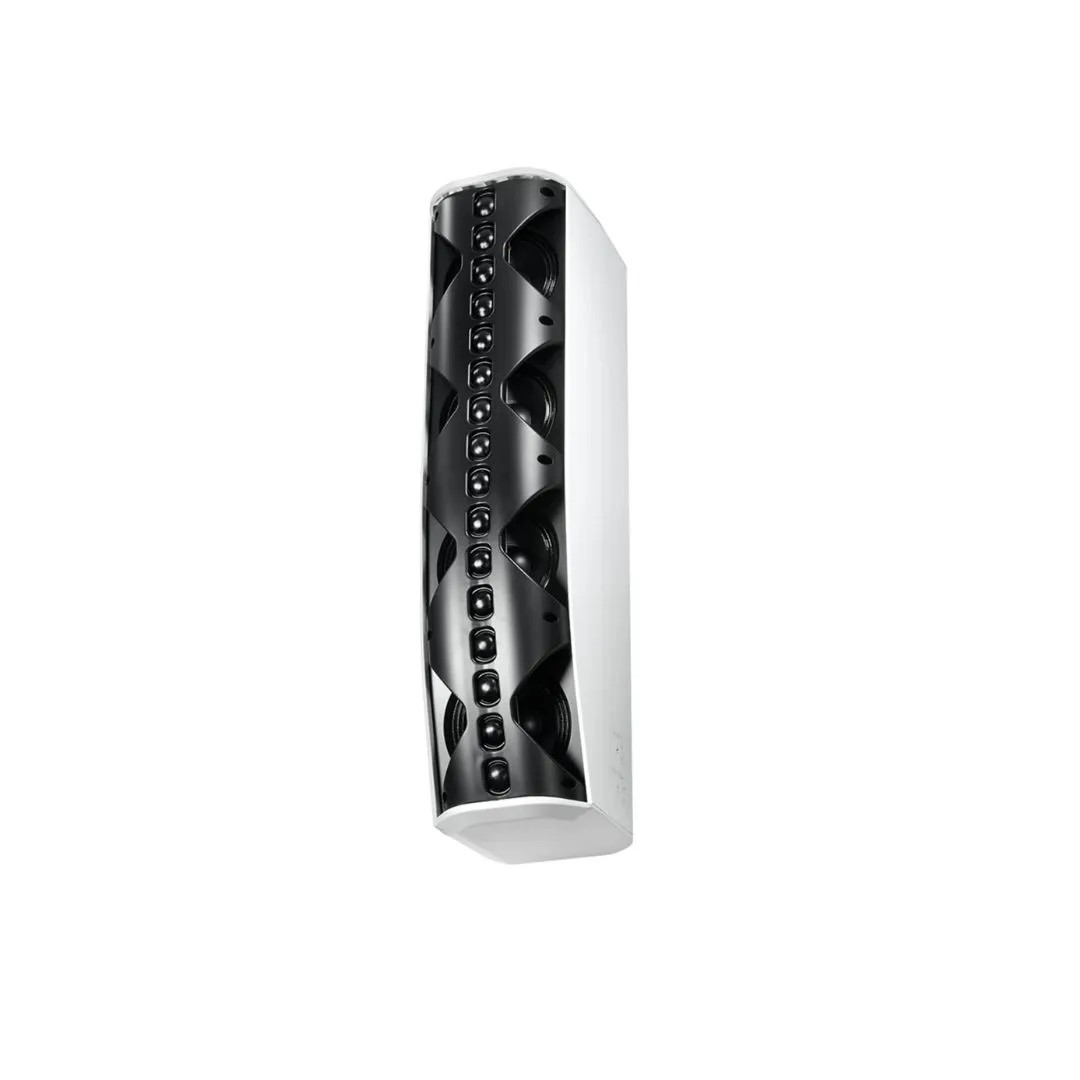

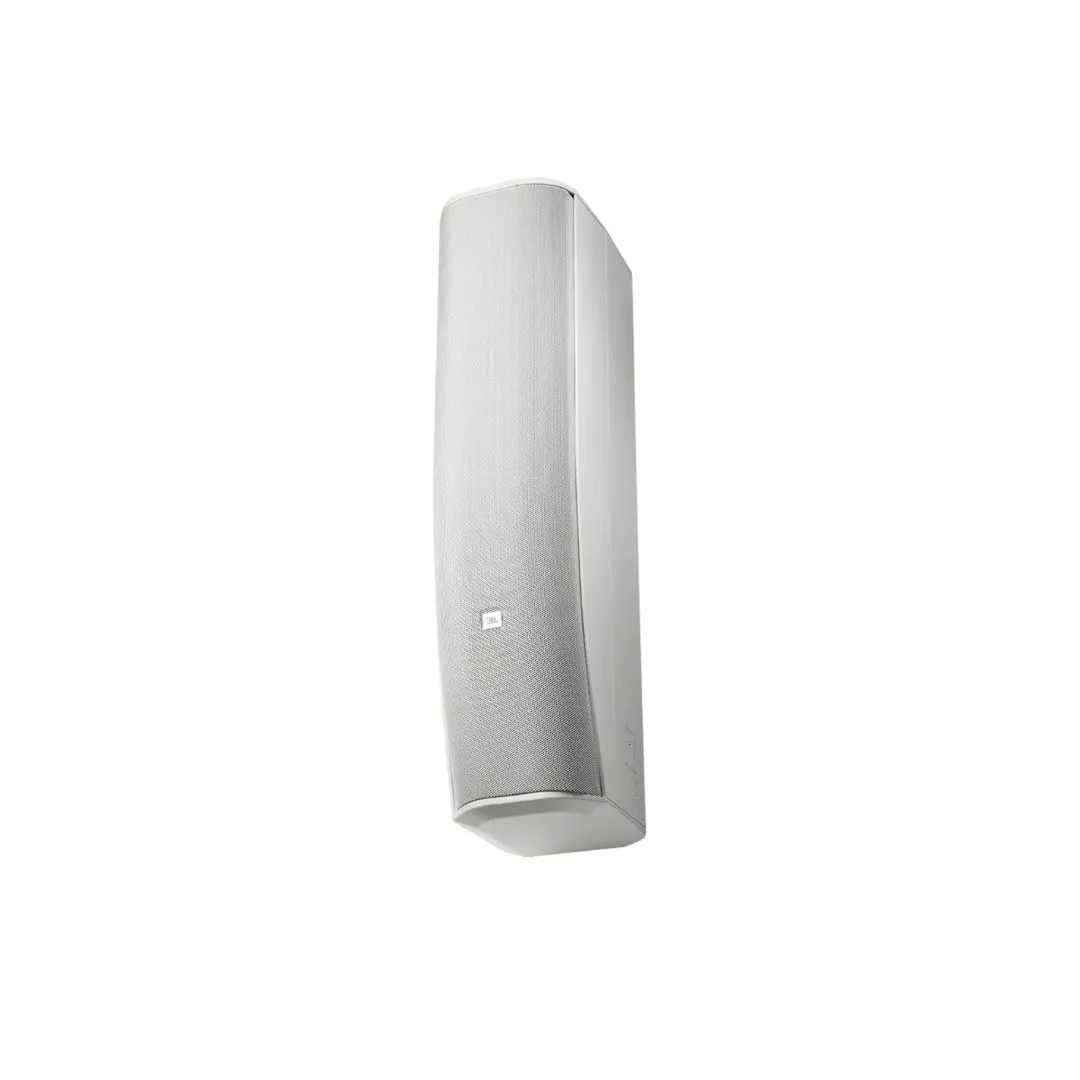

JBL CBT 1000 and CBT 1000-WH Column Speakers

The JBL CBT 1000 and CBT 1000-WH are advanced column speakers designed for high-performance sound in large venues. Featuring JBL’s Constant Beamwidth Technology™ (CBT), they provide clear, even coverage over long distances. With 32 drivers, a slim, aesthetically pleasing design, and weather-resistant construction, these speakers are ideal for both indoor and outdoor applications. The white version (WH) fits well in modern environments, offering flexible installation options. These speakers are perfect for auditoriums, stadiums, houses of worship, and other large spaces where intelligibility and clarity are essential.

Full Specifications :

• Model: CBT 1000 / CBT 1000-WH

• Speaker Type: Passive column line array speaker

• Power Handling: 1000W program, 500W continuous pink noise

• Frequency Response: 50 Hz – 20 kHz

• Impedance: 8 ohms

• Sensitivity: 98 dB SPL (1W @ 1m)

• Max SPL: 124 dB (130 dB peak)

• Coverage Pattern: 25° vertical x 100° horizontal

• Drivers: 32 x 2″ (50 mm) full-range drivers

• Input Connection: Covered screw terminals

• Transformer Taps: Optional 70V/100V transformer available

• Enclosure Material: Weather-resistant ABS with UV protection

• Grille: Powder-coated stainless steel

• Weather Rating: IP55-rated for outdoor use

• Mounting: Adjustable wall-mount hardware included

• Dimensions (H x W x D): 1998 mm x 76 mm x 94 mm (78.7 in x 3 in x 3.7 in)

• Weight: 19.1 kg (42 lbs)
