JBL AWC82 and AWC82-BK Surface Mount Speakers

Description

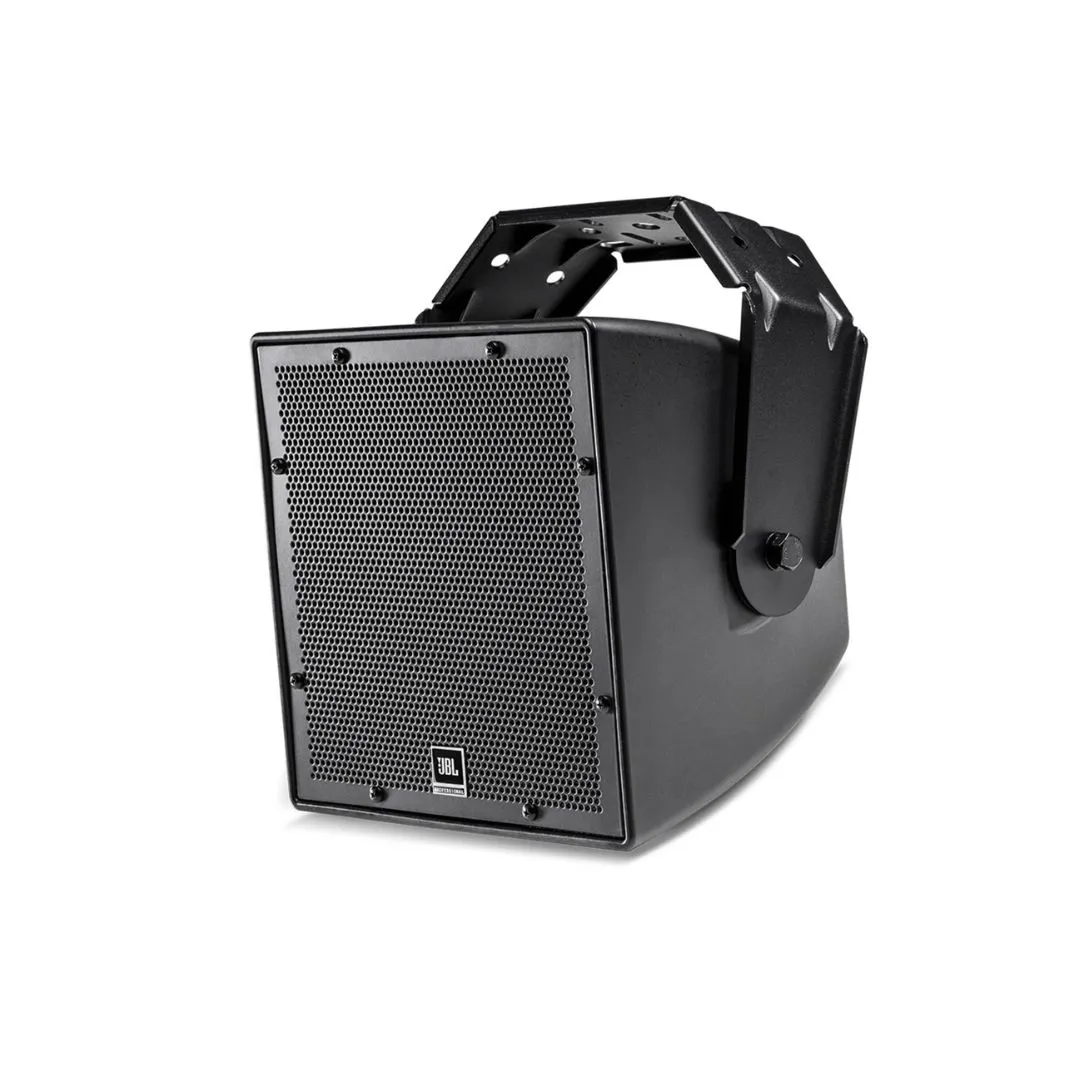

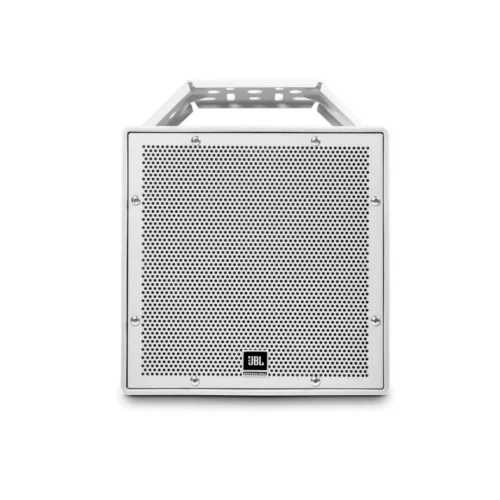

JBL AWC82 and AWC82-BK Surface Mount Speakers

The JBL AWC82 and AWC82-BK are high-output, weather-resistant surface-mount speakers designed for demanding indoor and outdoor applications. With an 8″ LF driver and 1″ HF compression driver, they deliver full-range, high-fidelity sound and wide coverage. Built to withstand extreme weather conditions, these speakers are IP56-rated and ideal for stadiums, theme parks, outdoor venues, and transportation hubs. The AWC82-BK comes in a sleek black finish for more discreet installations. Both models include a built-in multi-tap transformer for 70V/100V systems and 8-ohm direct operation.

Full Specifications:

• Model Numbers: AWC82 (White), AWC82-BK (Black)

• Speaker Type: All-weather 2-way coaxial surface-mount speaker

• Low-Frequency Driver: 8″ (200 mm) Kevlar-reinforced woofer

• High-Frequency Driver: 1″ (25 mm) compression driver

• Frequency Response (-10 dB): 80 Hz – 20 kHz

• Power Handling: 300W continuous program, 150W pink noise

• Transformer Taps: 70V/100V: 150W, 75W, 38W, 19W (plus 8Ω bypass)

• Sensitivity: 91 dB SPL (1W, 1m)

• Maximum SPL: 113 dB continuous, 119 dB peak

• Coverage Pattern: 90° x 90° consistent coverage

• Impedance: 8 ohms (bypass mode)

• Enclosure: Fiberglass reinforced ABS with UV-resistant paint

• Grille: Powder-coated stainless steel, multi-layer weather protection

• Input Connection: Weather-protected terminal strip

• Mounting Hardware: U-bracket included

• Environmental Rating: IP56 (weather-resistant)

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Dimensions (H x W x D): 420 x 336 x 319 mm (16.5 x 13.2 x 12.6 in)

• Weight: 11.7 kg (25.8 lbs)

• Colors Available: White (AWC82), Black (AWC82-BK)
