JBL AWC15LF and AWC15LF-BK Surface Mount Speakers

Description

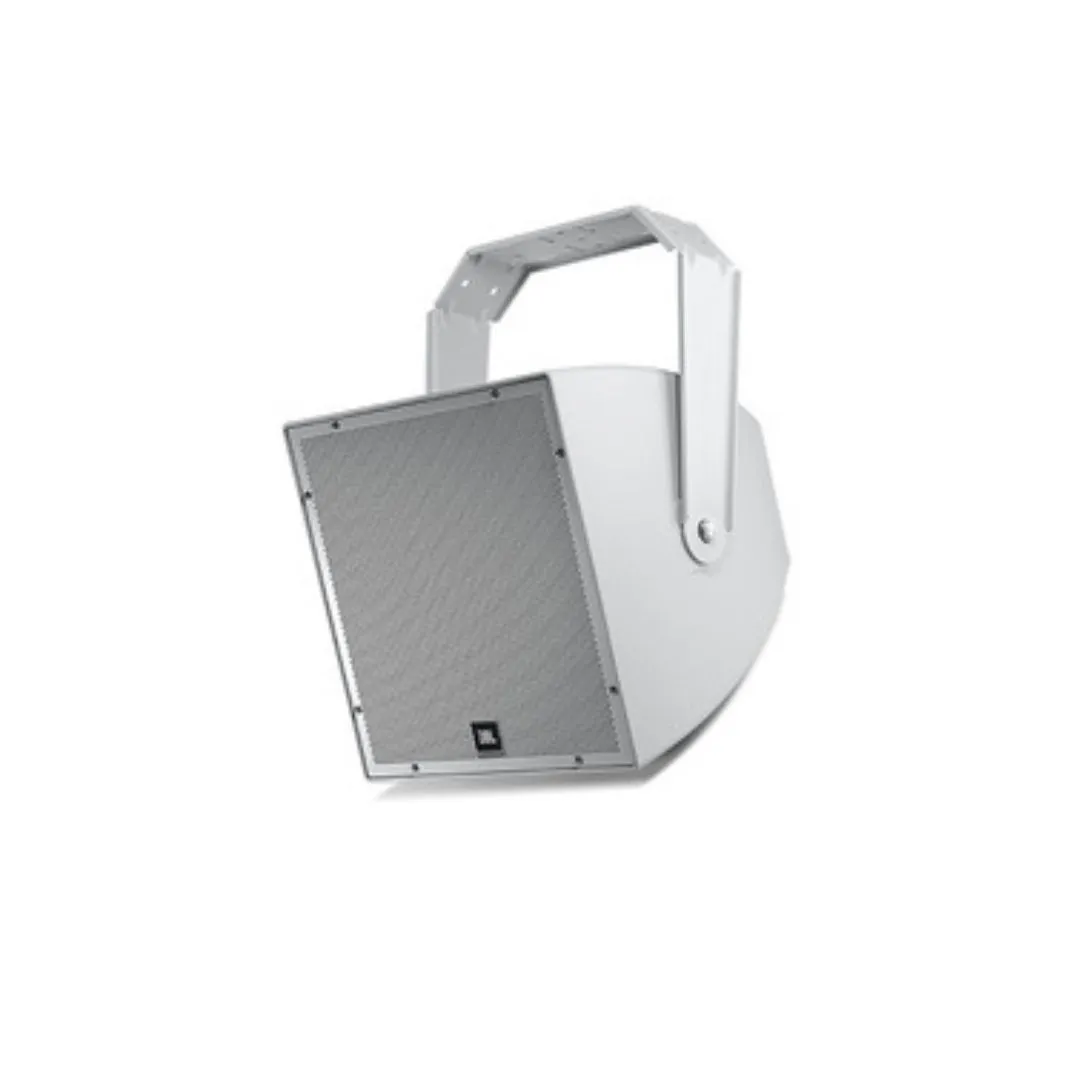

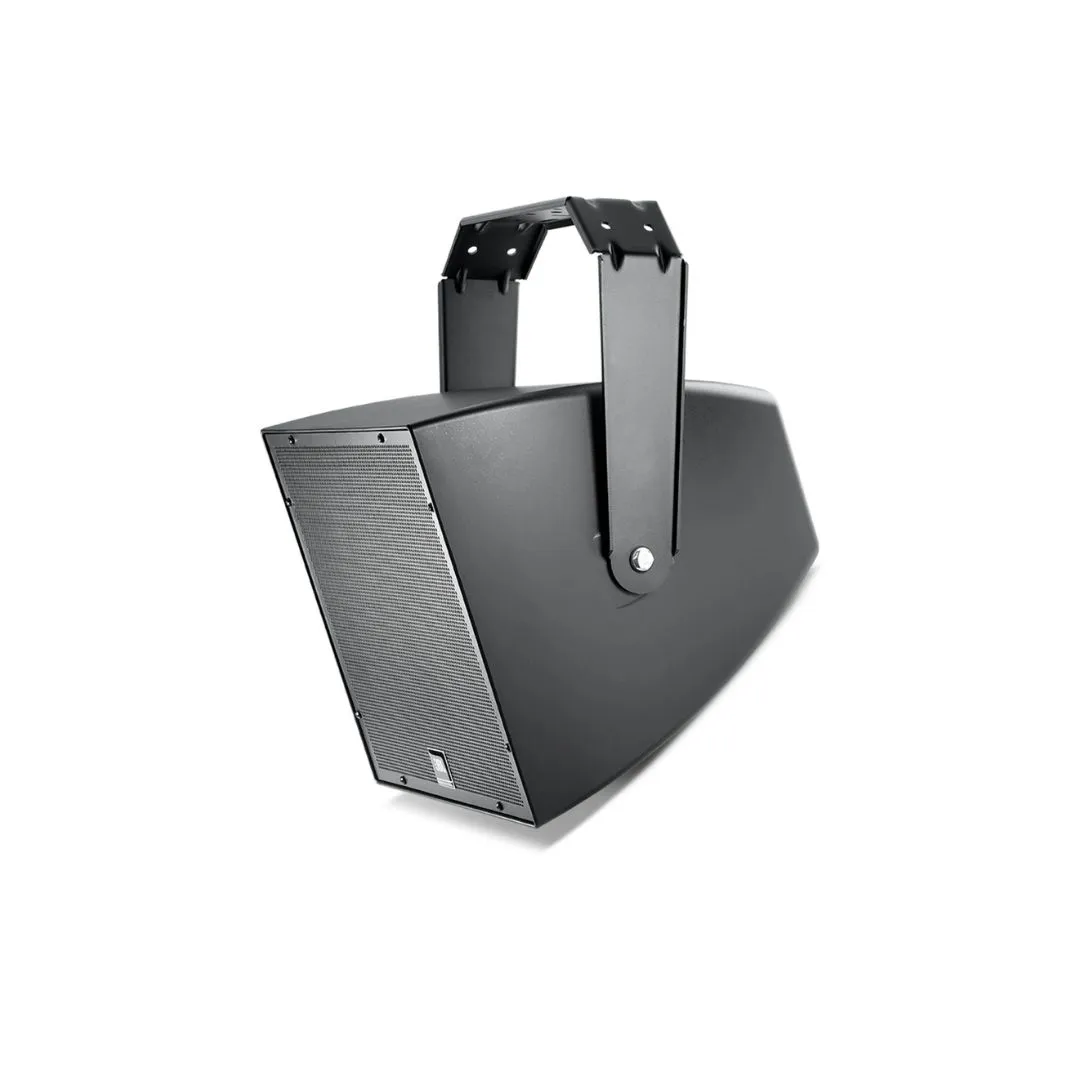

JBL AWC15LF and AWC15LF-BK Surface Mount Speakers

The JBL AWC15LF and AWC15LF-BK are high-performance, all-weather low-frequency loudspeakers designed for both indoor and outdoor commercial applications. They are ideal for extending bass response in full-range distributed systems or supplementing low-end in music playback environments. Built with a robust IP56-rated enclosure, these speakers provide powerful, punchy bass while withstanding harsh weather conditions. The AWC15LF (white) and AWC15LF-BK (black) offer the same performance in different color finishes to match any installation setting. With flexible mounting options and transformer taps for distributed systems, they’re perfect for stadiums, theme parks, outdoor retail spaces, and more.

Full Specifications:

• Model: JBL AWC15LF / AWC15LF-BK

• Speaker Type: 15″ low-frequency all-weather loudspeaker

• Frequency Range (-10 dB): 45 Hz – 145 Hz

• Power Handling (Continuous Pink Noise): 250W

• Power Handling (Program): 500W

• Power Handling (Peak): 1000W

• Transformer Taps (70V/100V): 200W, 100W, 50W, 25W taps; 8-ohm bypass

• Nominal Impedance: 8 ohms

• Sensitivity: 94 dB SPL (1W, 1m)

• Maximum SPL: 118 dB continuous, 124 dB peak

• Enclosure: Fiberglass reinforced ABS with UV-resistant paint

• Ingress Protection Rating: IP56 (weather-resistant)

• Mounting: U-bracket included for versatile surface mounting

• Input Connectors: Terminal strip with weather cover

• Dimensions (H × W × D): 21.3 x 21.0 x 17.1 in (541 x 533 x 435 mm)

• Weight: 55.0 lb (25.0 kg)

• Color Options: White (AWC15LF) and Black (AWC15LF-BK)

• Grille: Zinc-plated steel with powder-coating and foam backing

• Operating Temperature: -25°C to 70°C (-13°F to 158°F)
