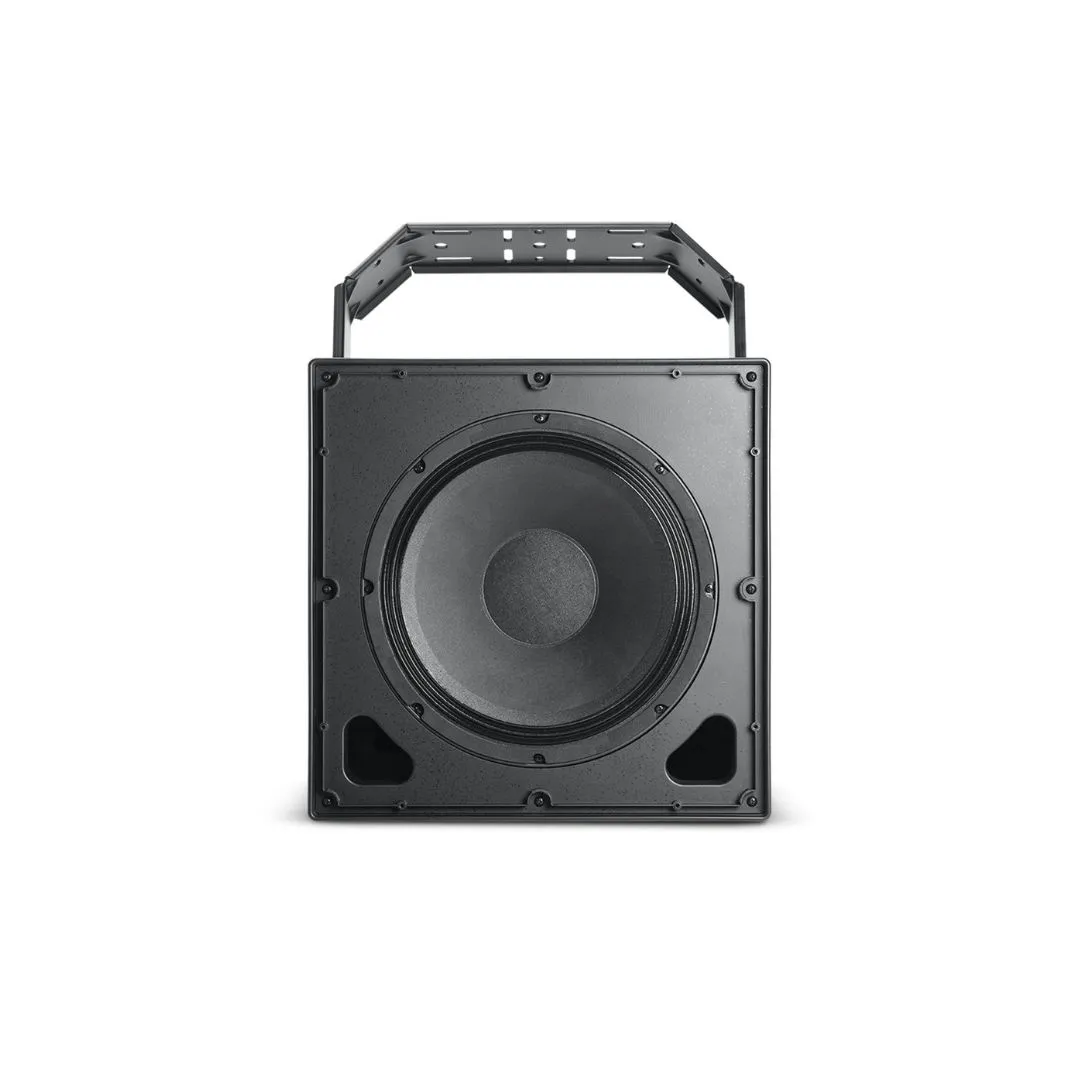

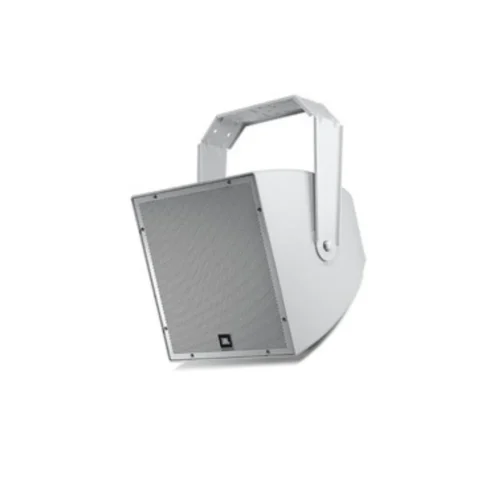

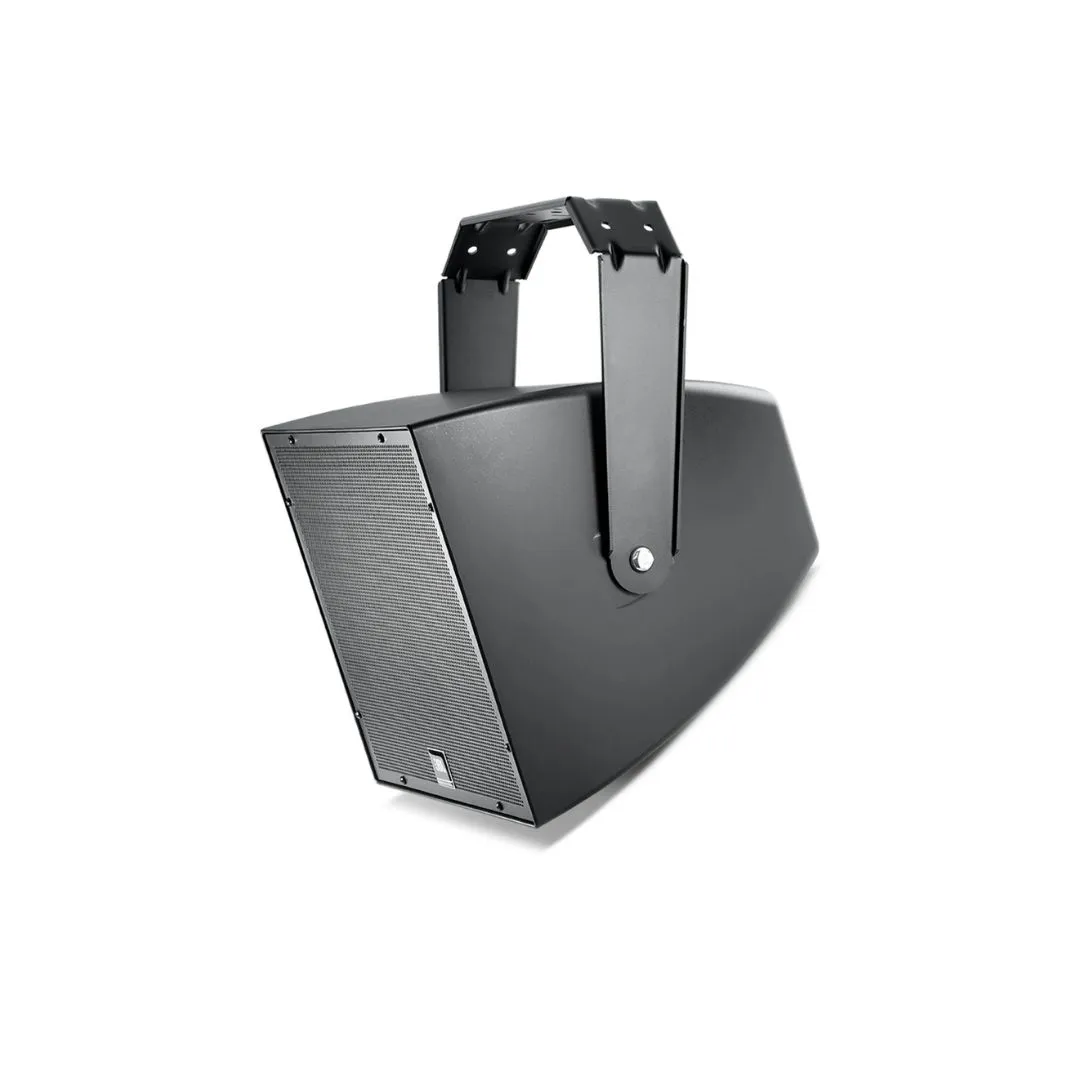

JBL AWC159 and AWC159-BK Surface Mount Speakers

Description

JBL AWC159 and AWC159-BK Surface Mount Speakers

The JBL AWC159 and AWC159-BK are high-power, all-weather surface mount speakers designed for outdoor and indoor commercial applications. These 2-way full-range speakers provide exceptional clarity, wide coverage, and high output, making them ideal for stadiums, theme parks, sports venues, and other large-scale environments. Built with a weather-resistant fiberglass enclosure and stainless steel grille, they are engineered to withstand harsh conditions. The AWC159-BK offers a sleek black finish for low-visibility installations. With flexible mounting options and transformer taps, they support both low-impedance and distributed audio systems.

Full Specifications:

• Model: JBL AWC159 (White), JBL AWC159-BK (Black)

• Speaker Type: All-weather compact 2-way coaxial loudspeaker

• Woofer: 15″ (381 mm) Kevlar-reinforced cone with weather-treated surround

• Tweeter: 1″ (25 mm) polymer diaphragm compression driver

• Frequency Range (-10 dB): 42 Hz – 20 kHz

• Power Handling: 500W continuous program, 250W continuous pink noise

• Sensitivity: 97 dB SPL (1W, 1m)

• Maximum SPL: 121 dB continuous, 127 dB peak

• Coverage Pattern: 90° x 90° nominal

• Transformer Taps (70V/100V): 200W, 100W, 50W, 25W (plus 8Ω bypass)

• Impedance: 8 ohms (bypass mode)

• Enclosure Material: Fiberglass reinforced ABS with UV-resistant finish

• Grille: Stainless steel with powder coating and foam backing

• Connector: Watertight gland-nut with terminal strip

• Weather Rating: IP56 rated for outdoor use

• Mounting: U-bracket included for versatile wall or pole mounting

• Dimensions: 20.4 in x 19.7 in x 17.5 in (519 mm x 500 mm x 445 mm)

• Weight: 51.4 lb (23.3 kg)

• Color Options: White (AWC159), Black (AWC159-BK)
