JBL AWC129 and AWC129-BK Surface Mount Speakers

Description

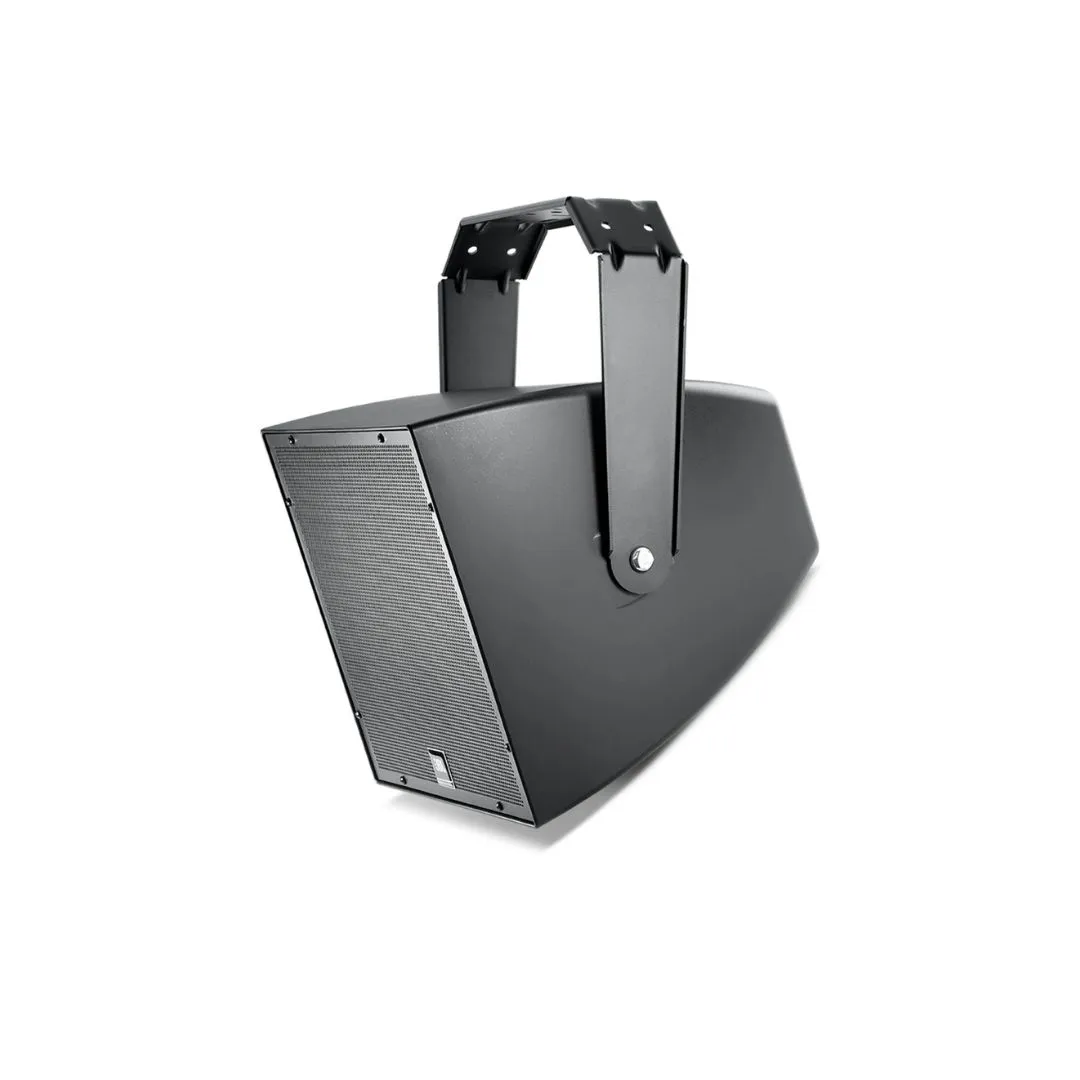

JBL AWC129 and AWC129-BK Surface Mount Speakers

The JBL AWC129 and AWC129-BK are high-power, all-weather surface-mount speakers designed for outdoor and indoor commercial applications. With a 12″ LF driver and 1″ HF compression driver, these speakers deliver exceptional sound clarity and full-range performance. The rugged, IP56-rated enclosure ensures durability in challenging environments, making them perfect for stadiums, theme parks, resorts, and arenas. Their consistent 90° x 90° coverage ensures uniform audio distribution over a wide area. The AWC129-BK comes in black for low-visibility installations, while the AWC129 features a light gray finish.

Full Specifications:

• Model Names: JBL AWC129 (Gray), AWC129-BK (Black)

• Speaker Type: 2-way coaxial, surface-mount loudspeaker

• Frequency Range (-10 dB): 45 Hz – 20 kHz

• Power Handling (Continuous/Program/Peak): 300W / 600W / 1200W

• Sensitivity: 94 dB SPL (1W, 1m)

• Maximum SPL: 119 dB continuous, 125 dB peak

• Coverage Pattern: 90° x 90° constant directivity

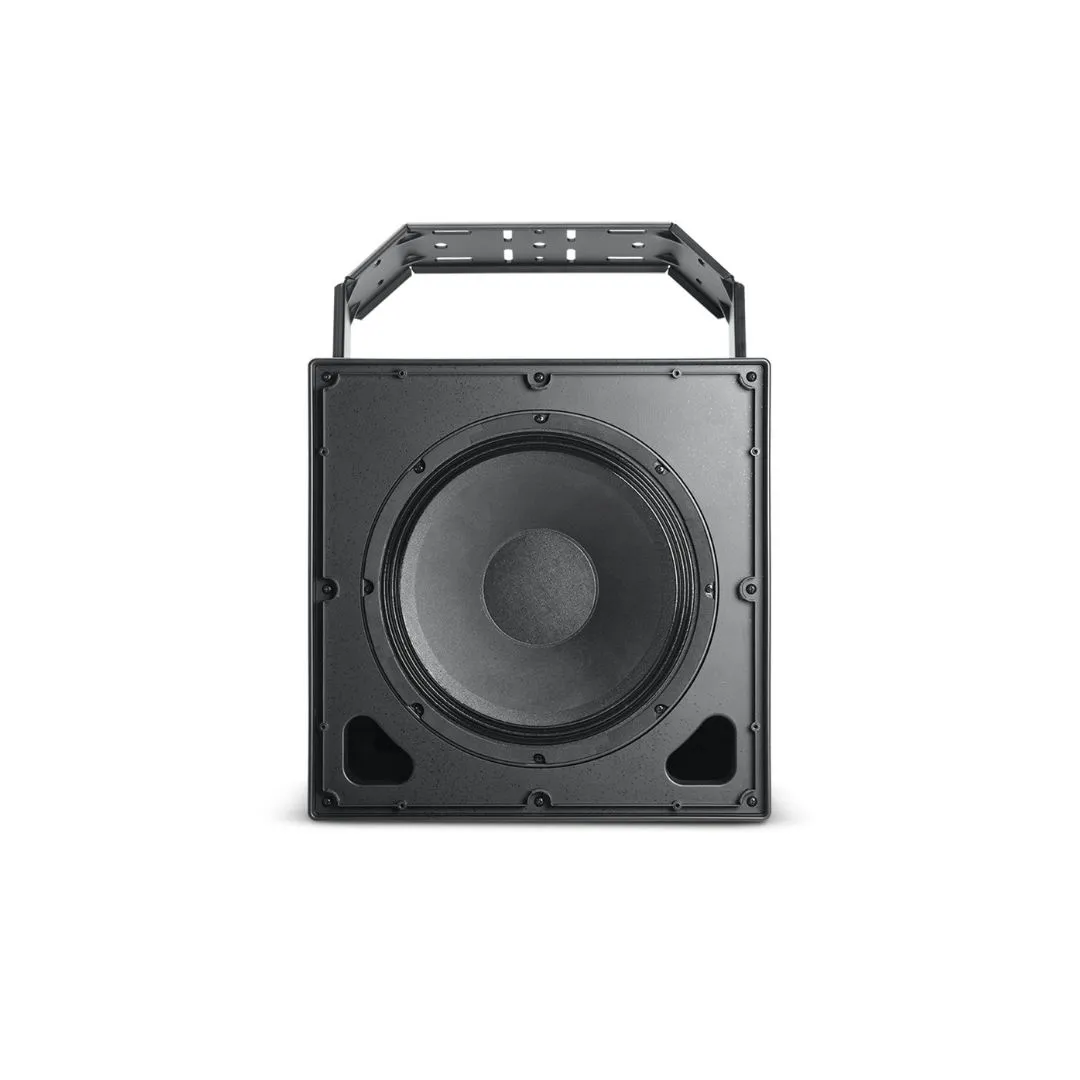

• LF Driver: 12″ (300 mm) Kevlar-reinforced cone woofer

• HF Driver: 1″ (25 mm) exit compression driver

• Transformer Taps: 70V/100V: 150W, 75W, 38W, 19W (plus 8 ohms bypass)

• Enclosure Rating: IP56 weather-resistant, fiberglass reinforced ABS

• Mounting: U-bracket included for wall or pole mount

• Connector Type: Terminal strip with weather cover

• Dimensions (H x W x D): 20.3 x 15.6 x 13.5 in (516 x 396 x 343 mm)

• Weight: 42.5 lbs (19.3 kg)

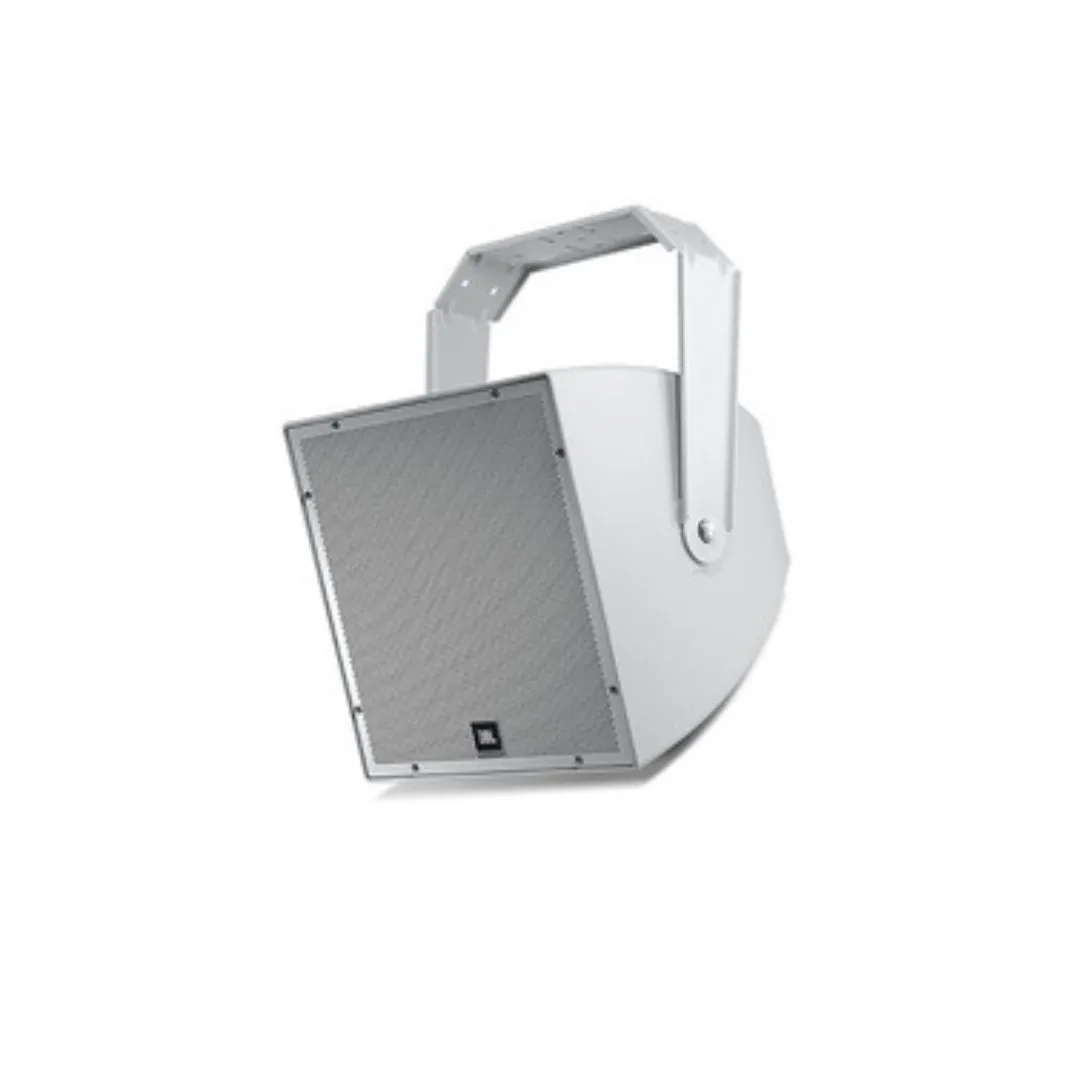

• Color Options: Light Gray (AWC129), Black (AWC129-BK)

• Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)

• Certifications: IP56, MilSpec 810, UV-resistant, RoHS compliant
