JBL Ceiling Speaker CONTROL 14C-VA

Description

JBL Ceiling Speaker CONTROL 14C-VA

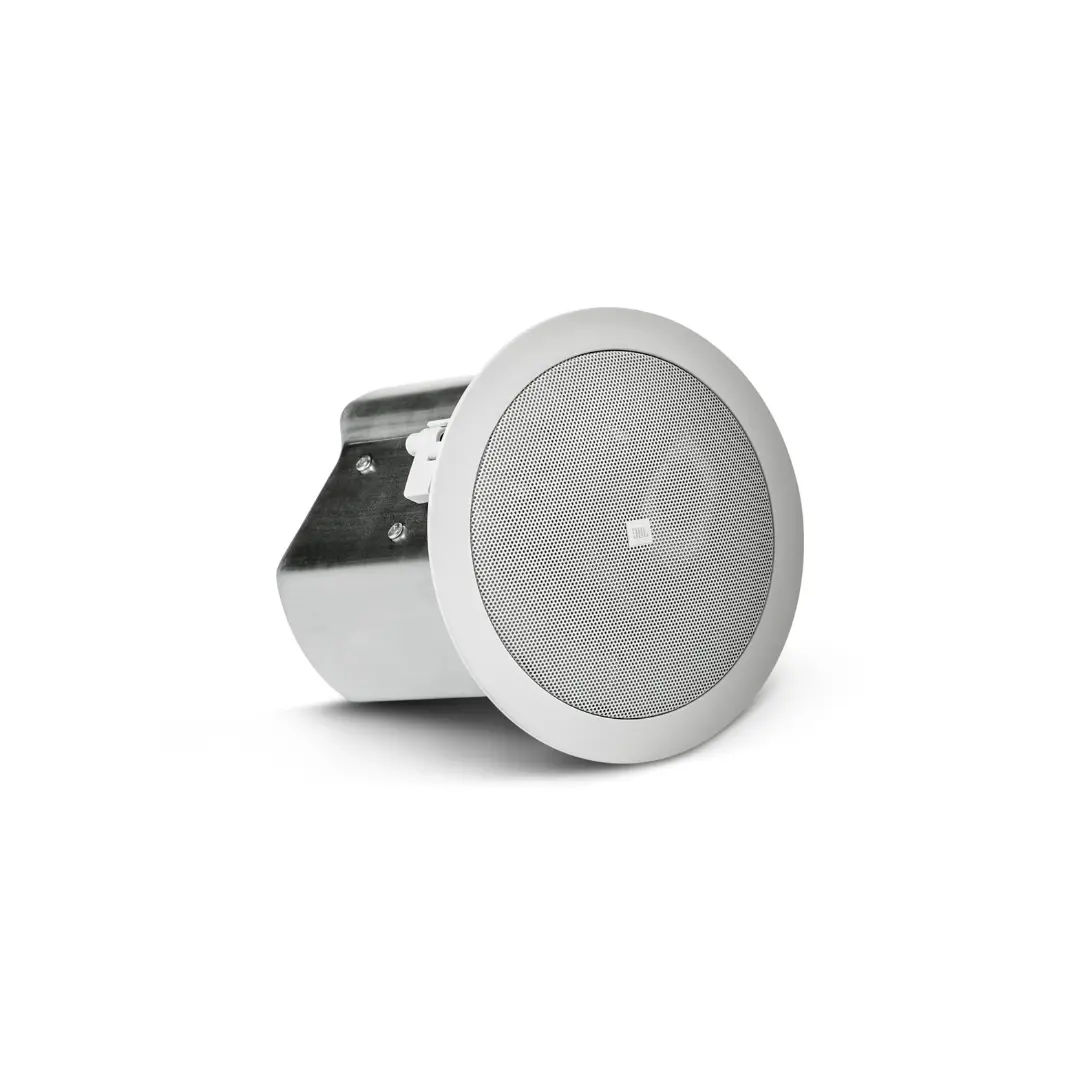

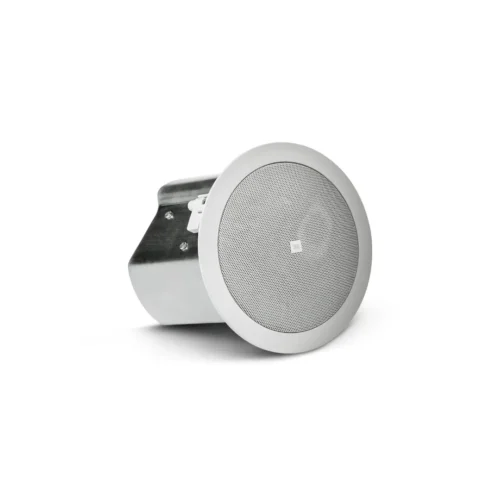

JBL Control 14C-VA is a high-performance 4-inch coaxial ceiling speaker designed for voice evacuation and professional audio applications. It meets EN54-24 standards for life safety systems, making it ideal for use in public spaces such as airports, hotels, schools, and retail environments. Featuring wide 120° coverage, a durable polypropylene woofer, and a soft-dome tweeter, it delivers clear, even sound. The speaker supports both low-impedance (30W at 8 ohms) and 70V/100V distributed audio systems, with multiple tap settings. It includes a blind-mount backcan for easy installation.

Full Specification JBL Ceiling Speaker CONTROL 14C-VA

 JBL Control 14C-VA

• Speaker Type: 4″ Coaxial Ceiling Loudspeaker

• Frequency Range (-10 dB): 74 Hz – 20 kHz

• Frequency Response (±3 dB): 100 Hz – 15 kHz

• Sensitivity (1W, 1m): 87 dB SPL

• Maximum SPL: 102 dB average, 108 dB peak (1 m)

• Nominal Coverage Angle: 120° conical

• Power Handling (8Ω): 30W continuous pink noise, 60W program

• Transformer Taps (70V/100V): 25W, 12.5W, 6.3W (100V); + 3.2W (70V only)

• Nominal Impedance: 8 ohms (direct mode)

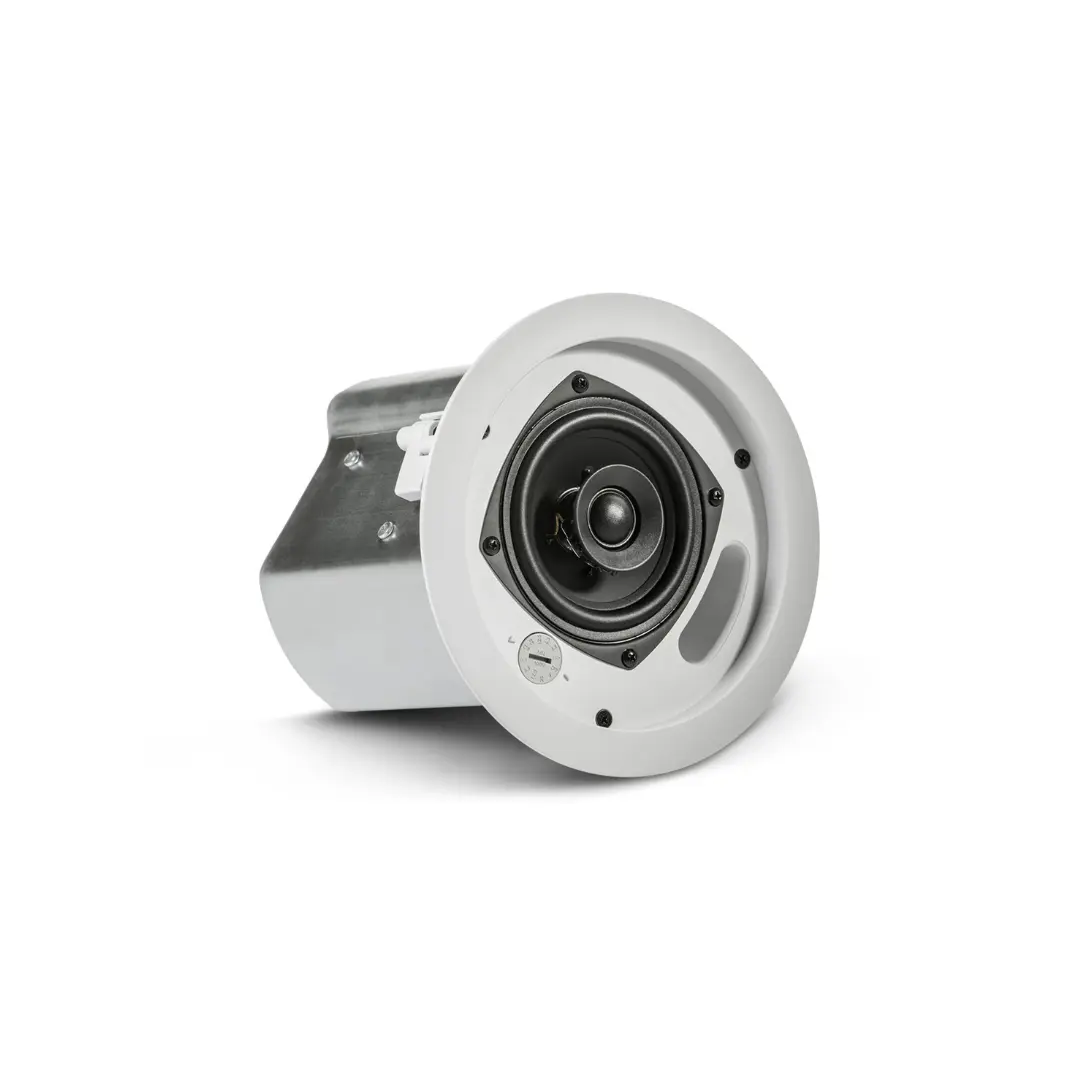

• Low Frequency Driver: 100 mm (4 in) polypropylene cone with rubber surround

• High Frequency Driver: 19 mm (0.75 in) soft-dome, liquid-cooled tweeter

• Crossover Frequency: 3.3 kHz

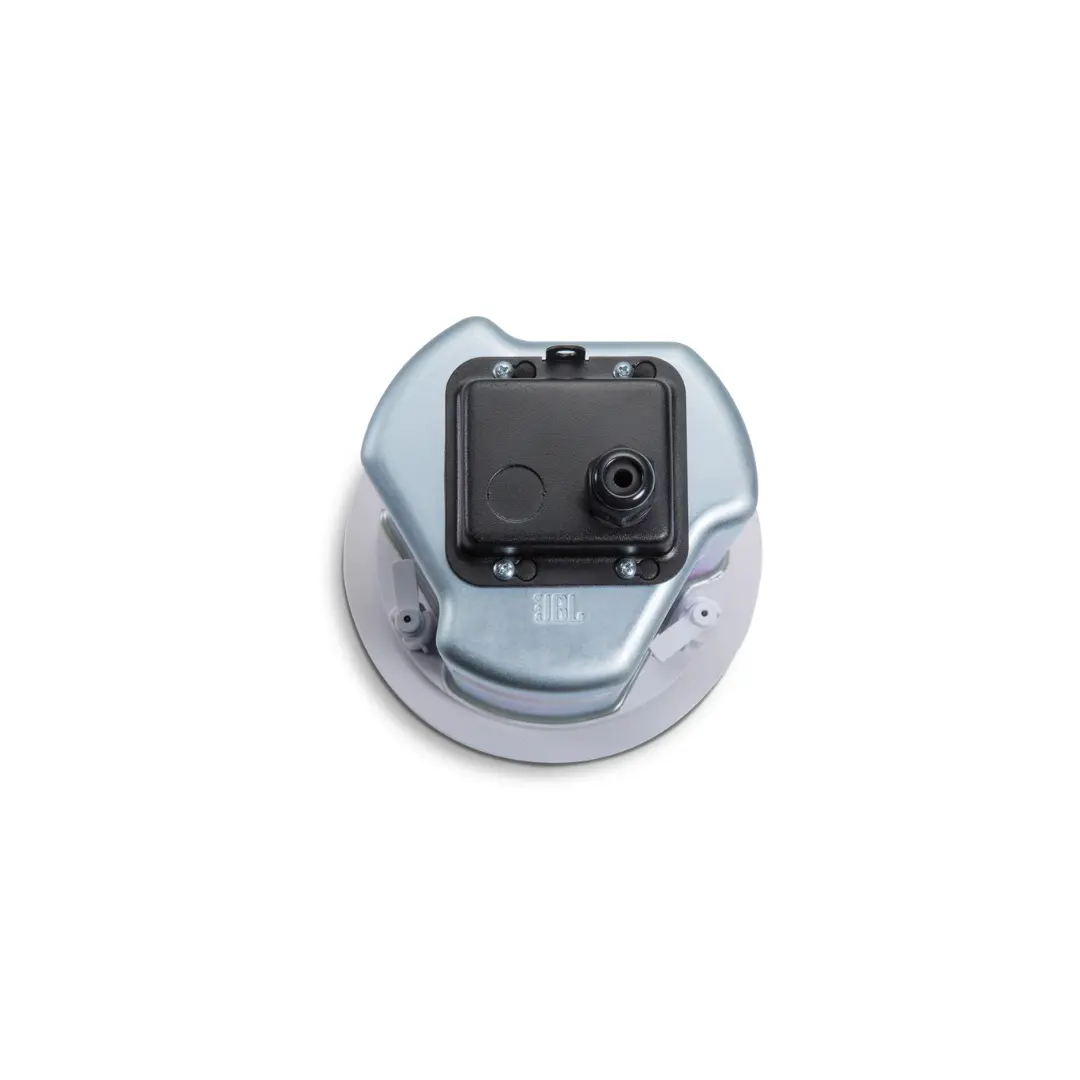

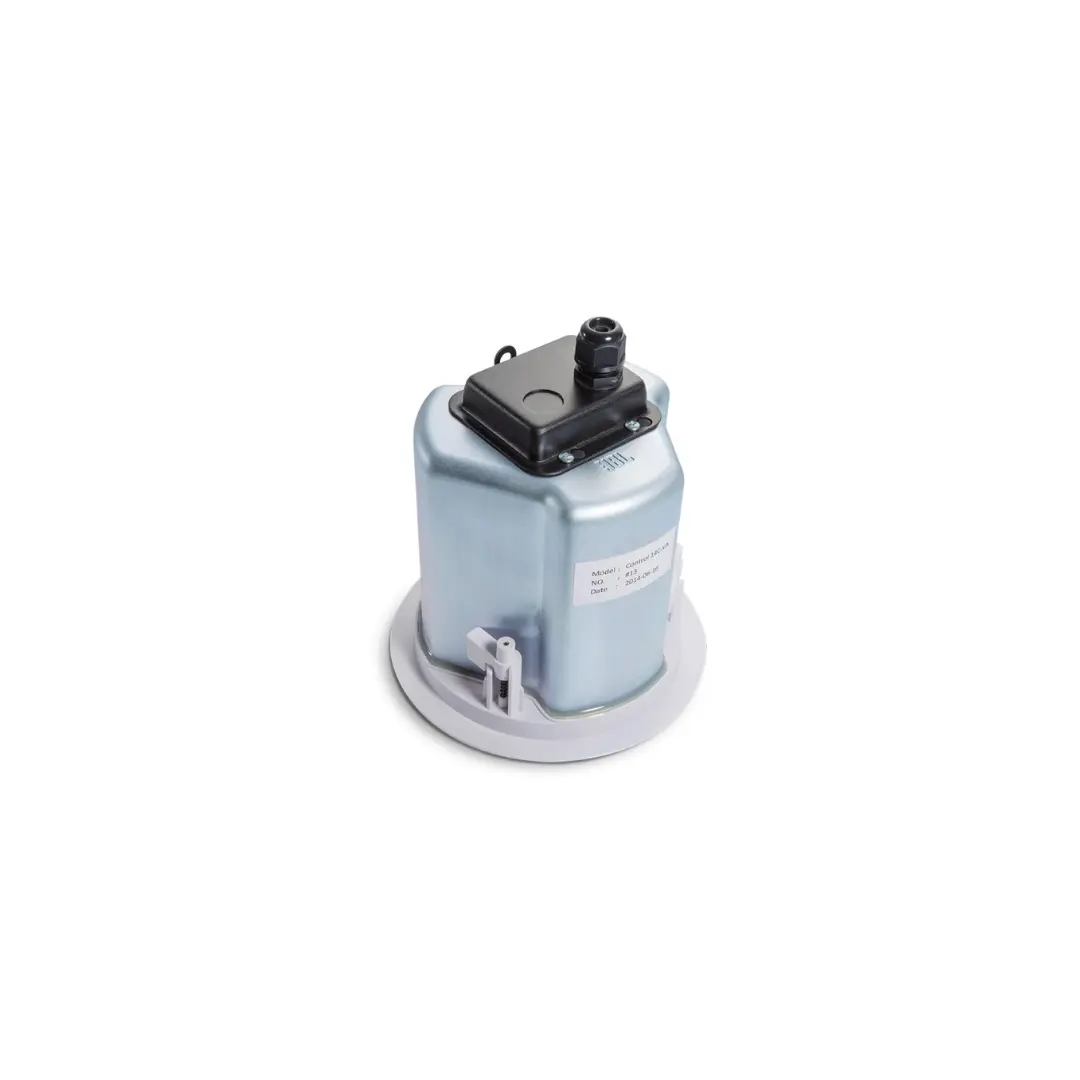

• Enclosure Type: Blind-mount backcan with metal grille

• Baffle Material: UV-resistant ABS, flame-rated UL94-V0 and UL94-5VB

• Backcan Material: Zinc-plated steel

• Ceiling Cutout Size: 170 mm (6.7 in)

• Overall Diameter: 253 mm (10.0 in)

• Depth (Installed): 195 mm (7.7 in)

• Ceiling Thickness Compatibility: Up to 35 mm standard, up to 55 mm with accessory

• Certifications: EN54-24 Type A (for voice evacuation systems)

• Ingress Protection: IP44 (with grille in place)

• Weight: Approx. 3.1 kg (6.8 lbs)
