JBL Speaker AW266-LS and AW266-LS-BK Outdoor Speakers

The JBL AW266-LS and AW266-LS-BK are high-quality outdoor loudspeakers designed for superior performance in all weather conditions. Built with rugged enclosures and advanced components, they deliver powerful, clear sound for outdoor venues, stadiums, and commercial spaces. The “LS” models include line supervision capability, making them ideal for emergency and voice alarm systems. Available in both white (AW266-LS) and black (AW266-LS-BK), they blend easily with different environments. These speakers are a reliable choice for consistent, professional-grade outdoor audio.

Full Specifications

General Info

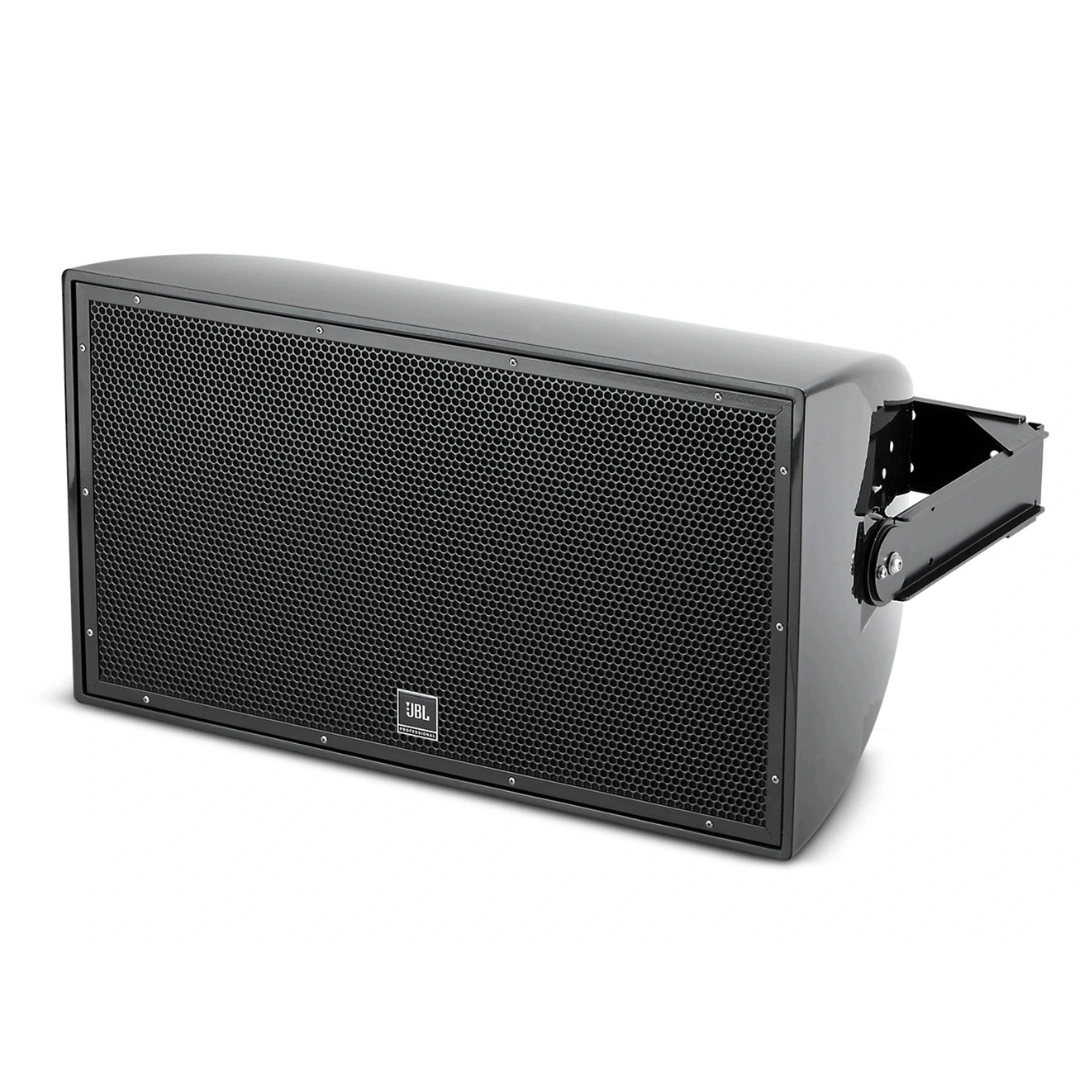

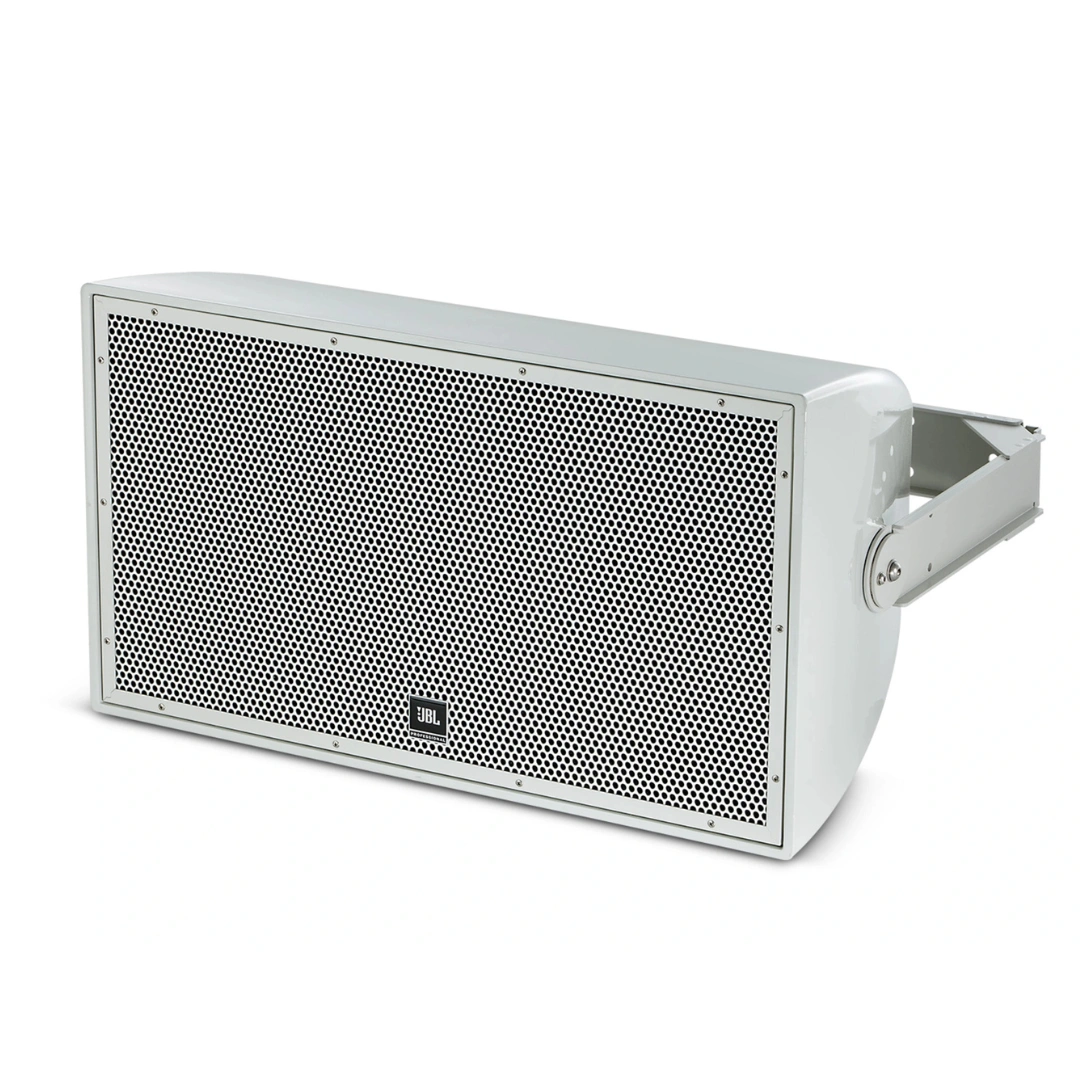

• Models: AW266-LS (Gray), AW266-LS-BK (Black)

• Type: Outdoor 2-way loudspeaker

• Use Case: Ideal for stadiums, theme parks, cruise ships, and large outdoor venues

• Weatherproof: IP55 rated – safe in rain, dust, and sun

• Mounting: Includes strong U-bracket for wall mounting (vertical or horizontal)

Sound Performance

• Frequency Range: 54 Hz – 20 kHz (handles deep bass to clear highs)

• Coverage Angle: 60° x 60° – focused sound projection

• Sensitivity: 98 dB – loud output with less power

• Max Volume: Up to 131 dB peak – very powerful for large areas

• Crossover Point: 1.1 kHz – splits sound between woofer and tweeter for clarity

Power & Compatibility

• Power Handling: 400W continuous, 1600W peak

• Transformer Taps (for 70V/100V systems):

  • 70V: 400W, 200W, 100W

  • 100V: 400W, 200W

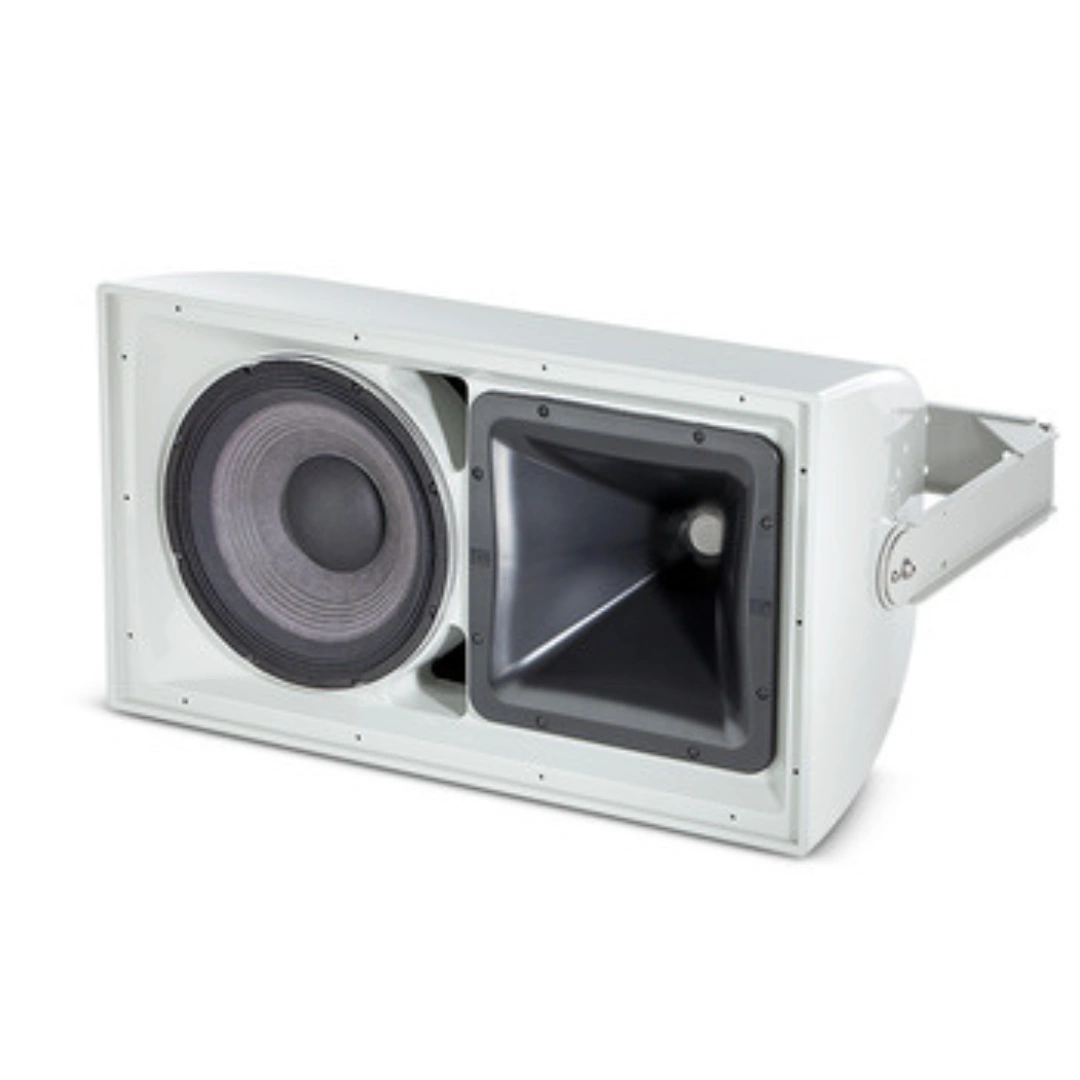

Speaker Components

• Woofer: 12″ JBL driver for strong bass

• Tweeter: 1.5″ compression driver for high-frequency clarity

• Waveguide: Ensures even sound spread

Physical Details

• Size: 16.1″ x 28.8″ x 17.8″ (409 x 732 x 452 mm)

• Weight: 55.5 lbs (25.2 kg)

• Connections: Covered screw terminals for wiring

• Safety Mount: Extra attachment point for secure installation

Special Feature

• LS Model: Includes line supervision feature – used in emergency systems (like alarms and announcements)
