JBL ceiling speaker CONTROL 19CST

Description

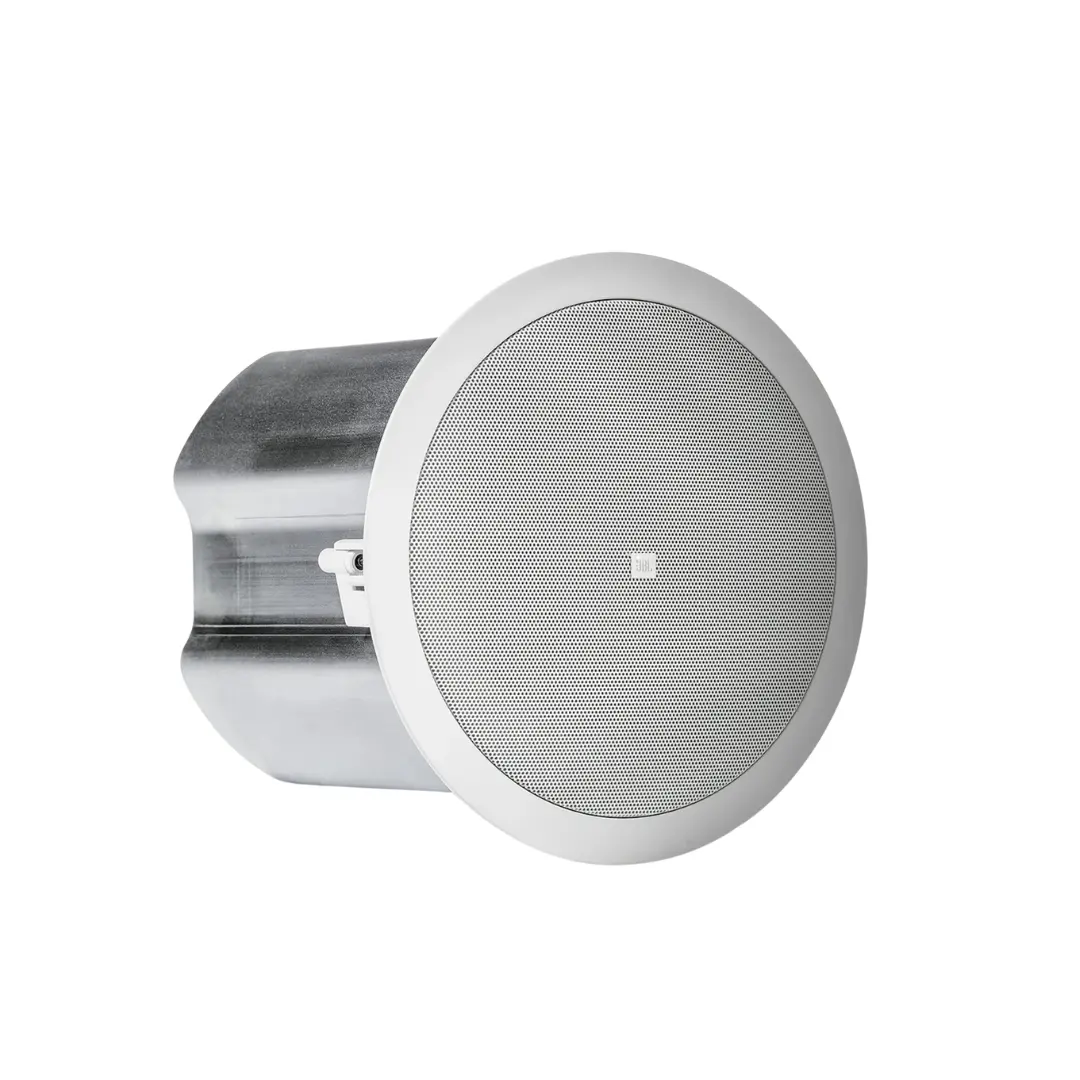

JBL ceiling speaker CONTROL 19CST

The JBL Control 19CST is a high-performance, in-ceiling speaker designed for delivering clear and powerful sound in commercial environments. Featuring an 8″ woofer and a 1″ soft dome tweeter, it ensures high output and wide frequency response. Its easy installation and multi-tap transformer options make it ideal for 70V/100V systems. The speaker is built to withstand long-term use, offering durability and reliability in demanding settings. With its versatile design, the Control 19CST provides consistent audio coverage, making it an excellent choice for retail spaces, hotels, and offices.

Full Specifications

• Driver Type: 8″ woofer and 1″ soft dome tweeter for high-quality sound

• Frequency Response: 55 Hz – 20 kHz for full-range audio

• Power Handling: 75W RMS, 150W program power

• Impedance: 8Ω direct mode or multi-tap transformer for 70V/100V

• Sensitivity: 91 dB (1W/1m) for clear audio at low power

• Maximum SPL: 112 dB peak for high output

• Coverage: 120° conical coverage for even sound distribution

• Transformer Taps: 60W, 30W, 15W at 70V/100V

• Mounting: Easy blind-mount installation with dog-ear clamps

• Environmental Features: Fire-rated grille and housing for safety

• Dimensions: 9.5″ (240 mm) diameter, 6.2″ (158 mm) depth

• Weight: 4.6 kg (10.1 lbs) per speaker
