JBL CBT 100LA-LS and 100LA-LS-WH Column Speakers

Description

JBL CBT 100LA-LS and 100LA-LS-WH Column Speakers

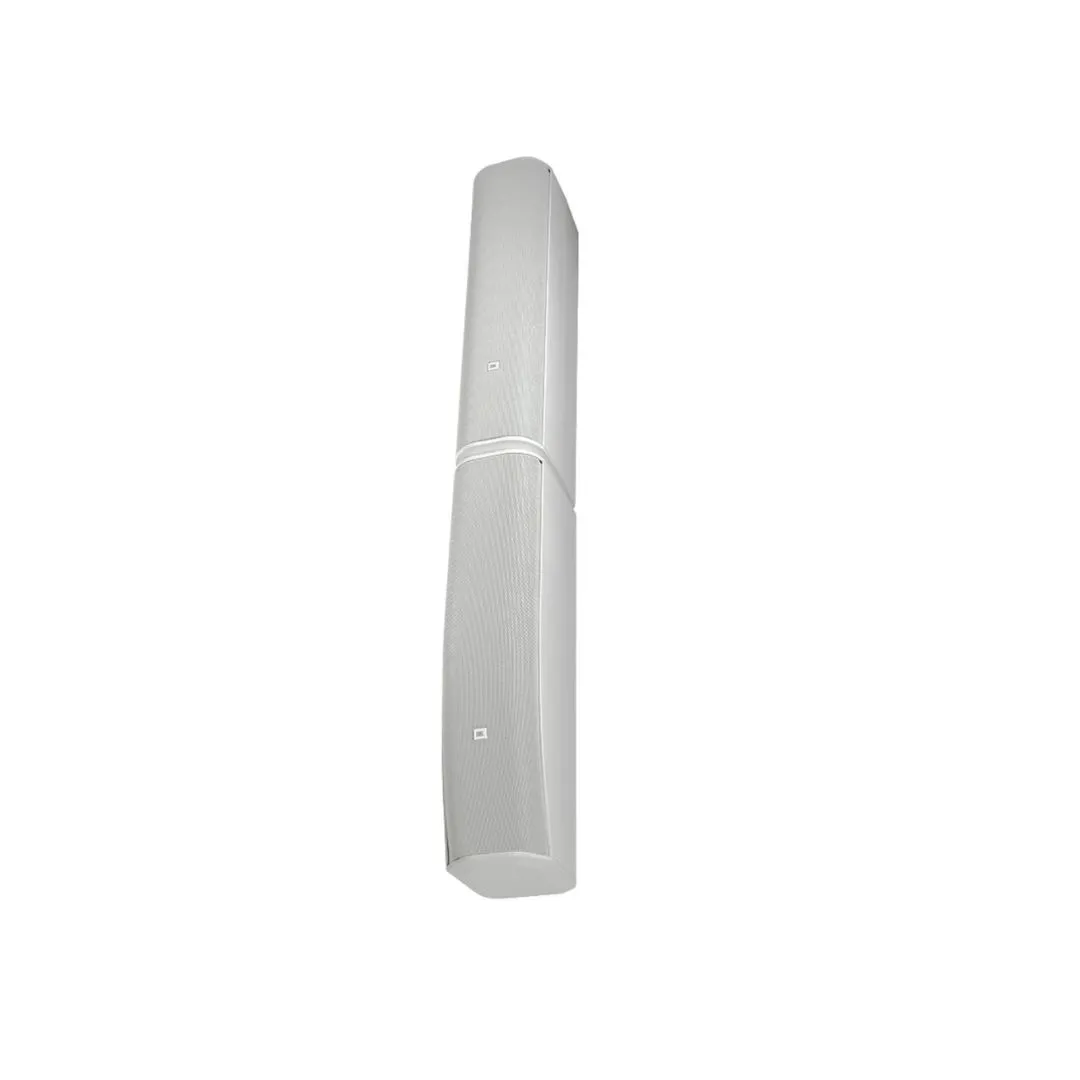

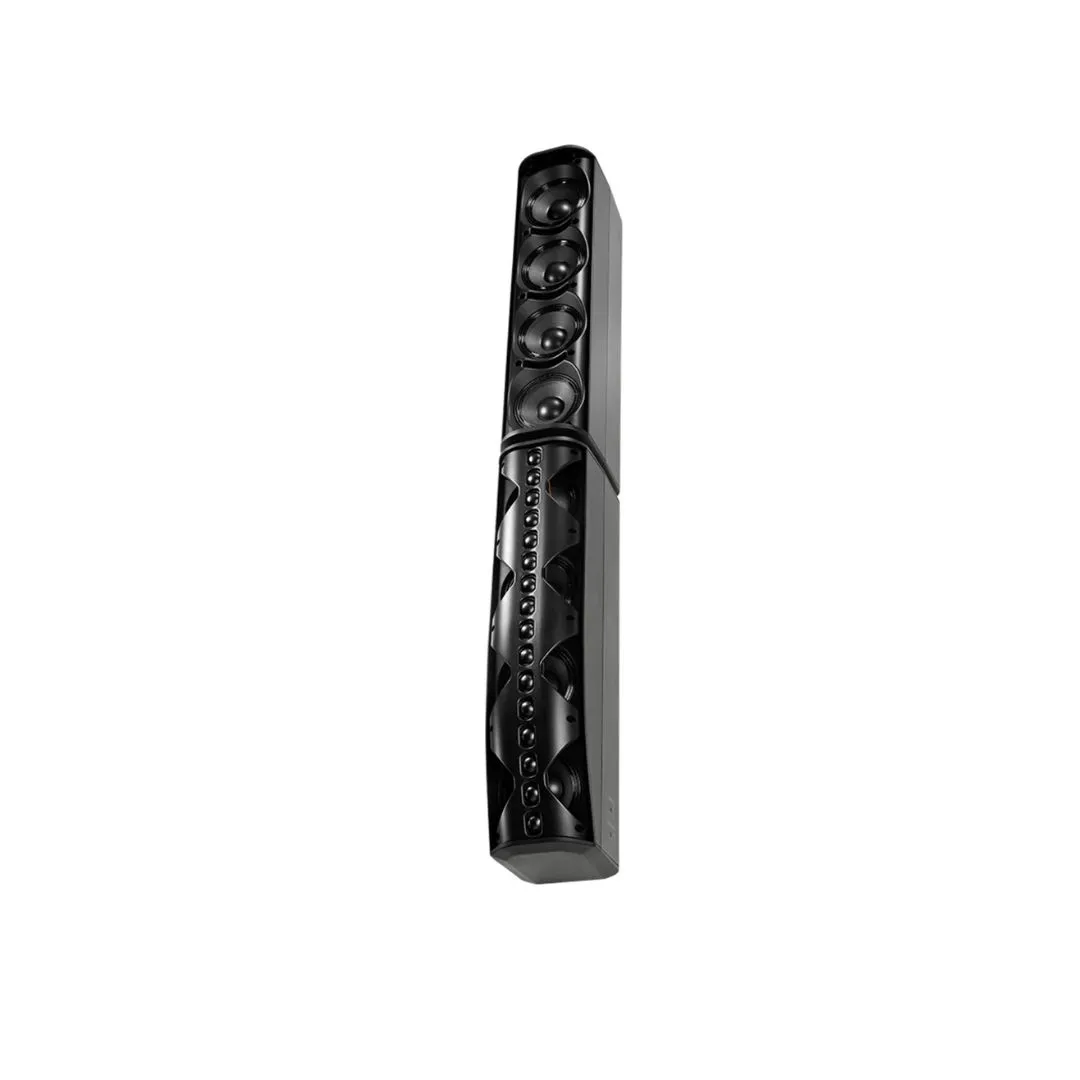

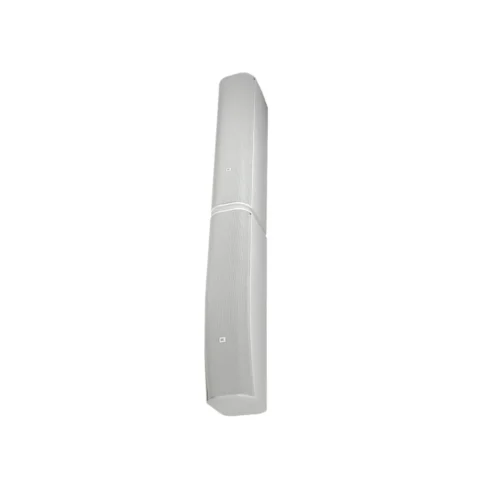

The JBL CBT 100LA-LS and 100LA-LS-WH are life safety-certified column speakers featuring JBL’s advanced Constant Beamwidth Technology™ for crystal-clear, focused audio. Designed for public address and voice alarm systems, they provide consistent sound coverage and high speech intelligibility. With 16 full-range drivers, a slim profile, and EN 54-24 compliance, these speakers are perfect for emergency and commercial installations. The white (WH) model blends well with light-colored environments. Built to withstand tough conditions, they’re suitable for both indoor and outdoor use.

Full Specifications:

• Model: CBT 100LA-LS / CBT 100LA-LS-WH

• Speaker Type: Passive column line array speaker for life safety systems

• Power Handling: 500W program, 250W pink noise

• Frequency Response: 80 Hz – 20 kHz

• Impedance: 8 ohms

• Sensitivity: 95 dB SPL (1W @ 1m)

• Max SPL: 118 dB (124 dB peak)

• Coverage Pattern: 25° vertical x 100° horizontal

• Drivers: 16 x 2″ (50 mm) full-range drivers

• Transformer Taps: 70V/100V (multi-tap transformer included)

• Compliance: EN 54-24 certified for life safety systems

• Input Connection: Covered screw terminals

• Enclosure: Weather-resistant ABS with UV protection

• Grille: Stainless steel, powder-coated

• Weather Rating: IP55-rated for outdoor use

• Dimensions (H x W x D): 998 mm x 76 mm x 94 mm (39.3 in x 3 in x 3.7 in)

• Weight: 8.1 kg (17.9 lbs)
