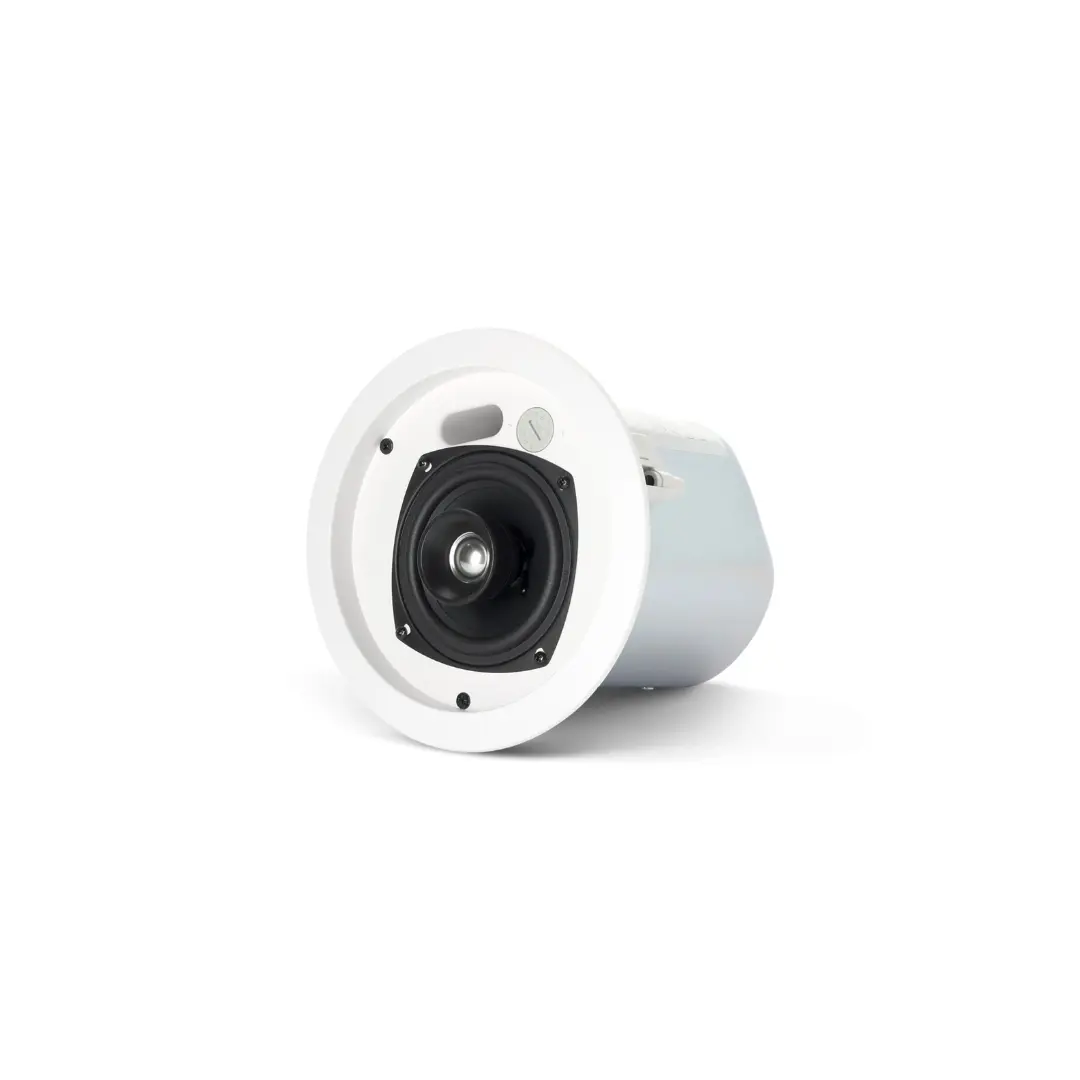

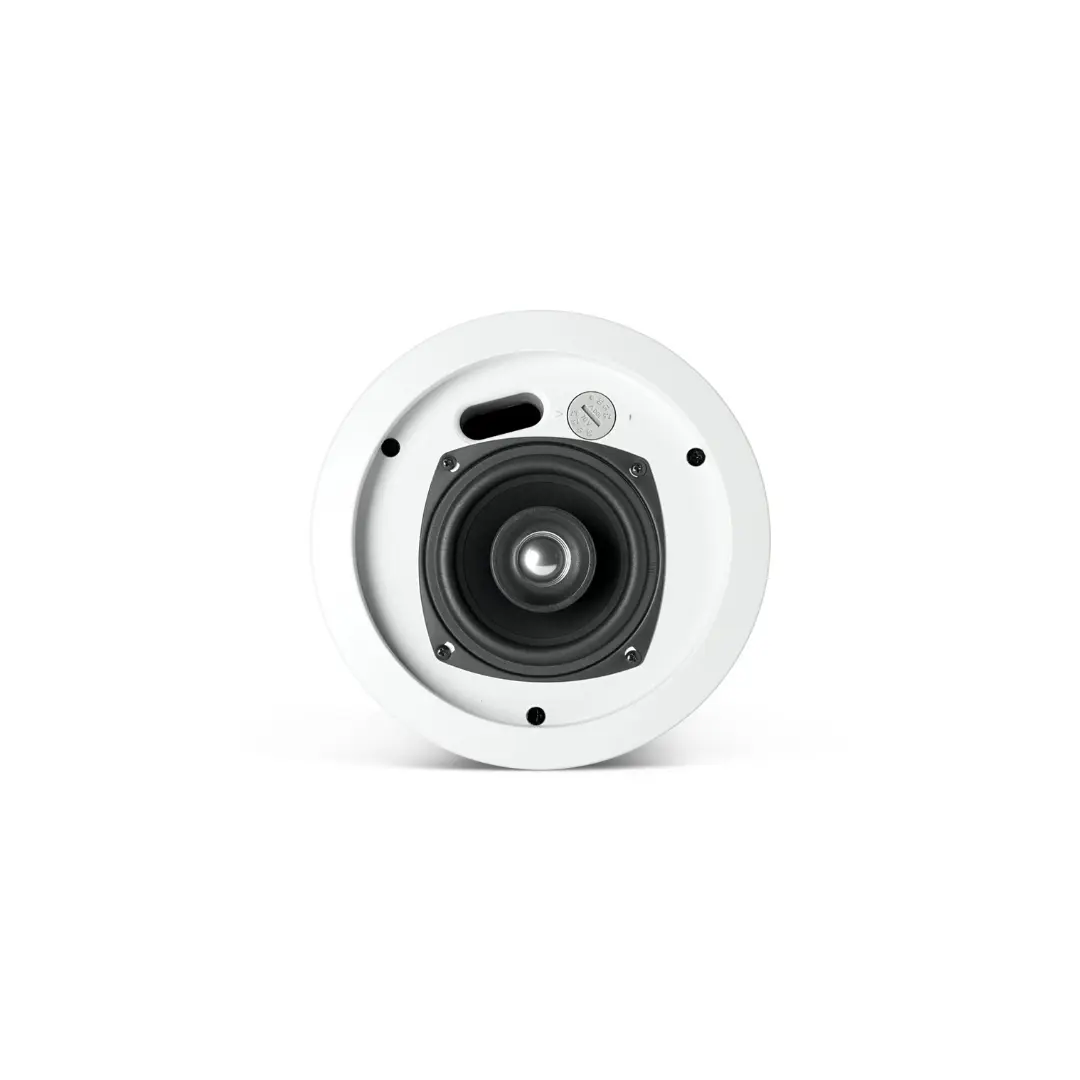

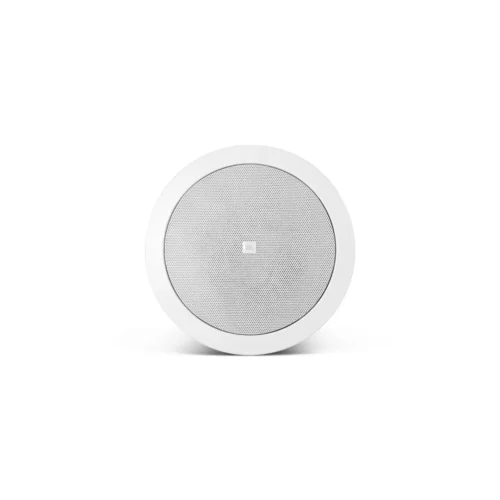

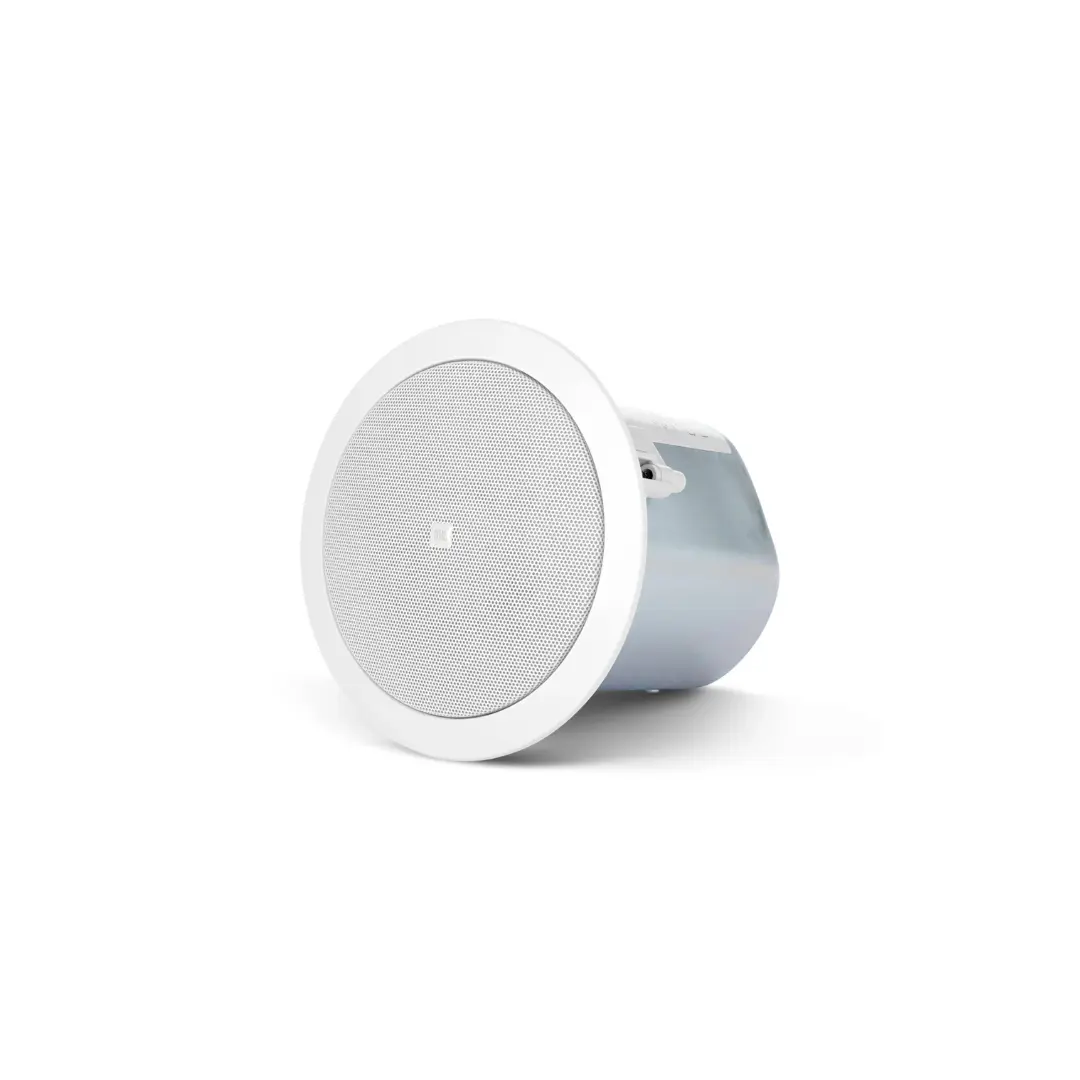

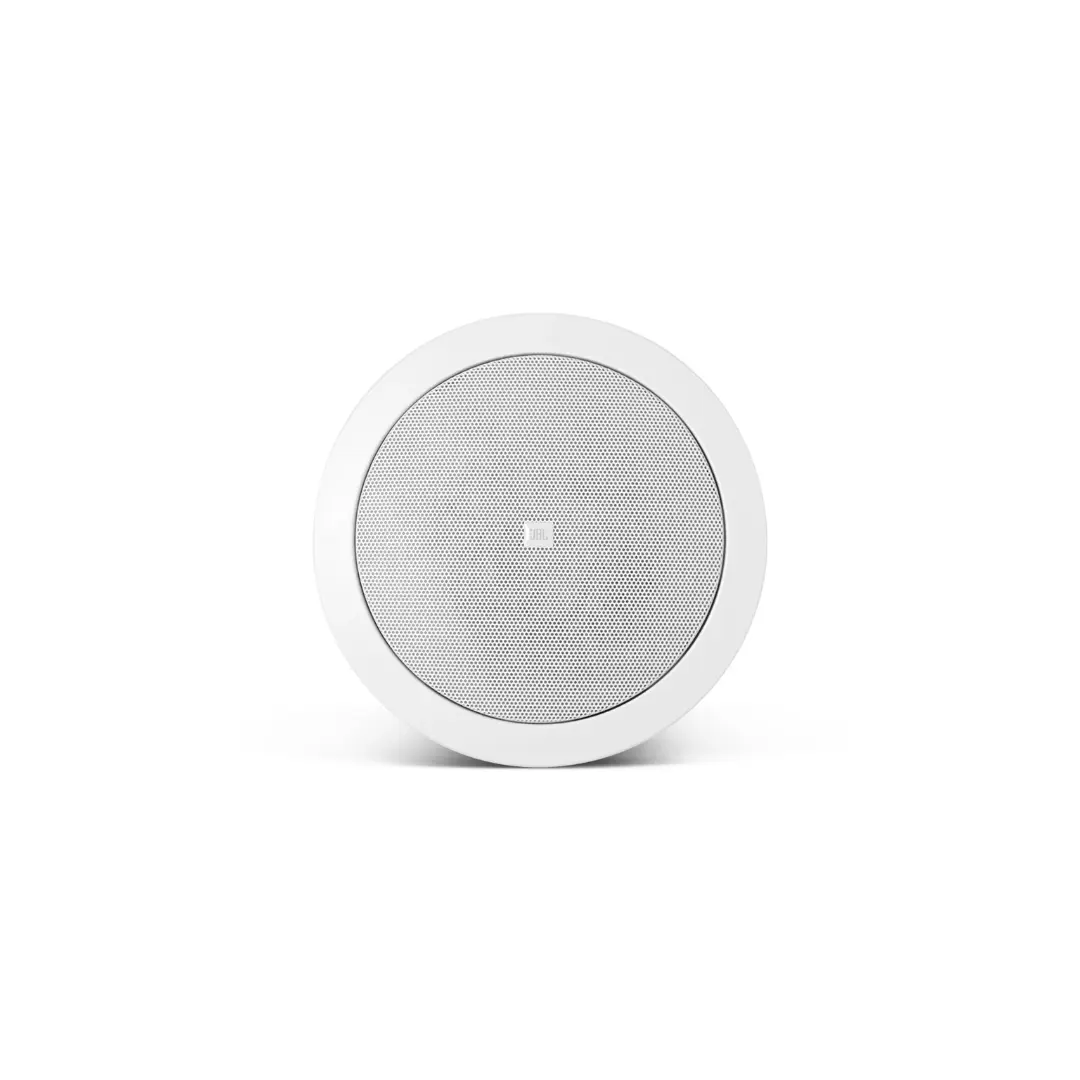

JBL Ceiling Speaker CONTROL 24CT

Description

JBL Ceiling Speaker CONTROL 24CT

JBL Control 24CT is a compact ceiling speaker designed for high-quality background music and paging applications. It features a 4-inch coaxial driver with a titanium-coated tweeter, delivering clear and balanced sound. With a wide 130° coverage and integrated 70V/100V transformer taps, it is ideal for commercial spaces like offices, restaurants, and retail stores.

full specifications JBL Ceiling Speaker CONTROL 24CT

The JBL Control 24CT is a compact ceiling speaker designed for high-quality audio performance in a variety of commercial applications. Here’s the full specification for the JBL Control 24CT Ceiling Speaker:

General Specifications:

• Type: Ceiling speaker (2-way, coaxial)

• Enclosure Material: High-impact polystyrene

• Color: White (can be painted to match décor)

• Mounting: Can be mounted in ceilings with a minimum of 4″ (102 mm) depth

• Frequency Response: 80 Hz – 20 kHz (±10 dB)

• Nominal Impedance: 8 ohms

• Power Handling:

  • Continuous: 60 watts

  • Peak: 240 watts

• Sensitivity (1W @ 1m): 88 dB

• Maximum SPL (1m): 104 dB

• Recommended Amplifier Power: 30-100 watts

• Crossover Frequency: 2.6 kHz

• Directivity Factor (Q): 7.3

• Directivity Index (DI): 8.6 dB

• Driver:

  • Low Frequency (Woofer): 4.5″ (114 mm) low-frequency driver

  • High Frequency (Tweeter): 0.75″ (19 mm) soft dome tweeter

• Transformer Taps (70V/100V system):

  • 70V: 60W, 30W, 15W, 7.5W

  • 100V: 60W, 30W, 15W

• Input Connection: 4-pin terminal block (for 70V/100V and 8-ohm)

• Dimensions (H x W):

  • Speaker Diameter: 7.75″ (197 mm)

  • Mounting Hole Diameter: 6.69″ (170 mm)

  • Mounting Depth: 3.50″ (89 mm)

• Weight: 2.2 lbs (1 kg)

Features:

• High-fidelity sound with good bass and crisp treble.

• Easy to install with a built-in transformer for 70V or 100V distributed audio systems.

• Designed for use in both commercial and residential environments like offices, retail spaces, restaurants, and more.

• Can be painted to match the ceiling or room décor.

The JBL Control 24CT speaker is a great choice for providing quality audio in environments where ceiling-mounted speakers are preferred.
